Запчасти John Deere 00LC 241 - Pump Unit 2160 VEHICLE HYDRAULICS

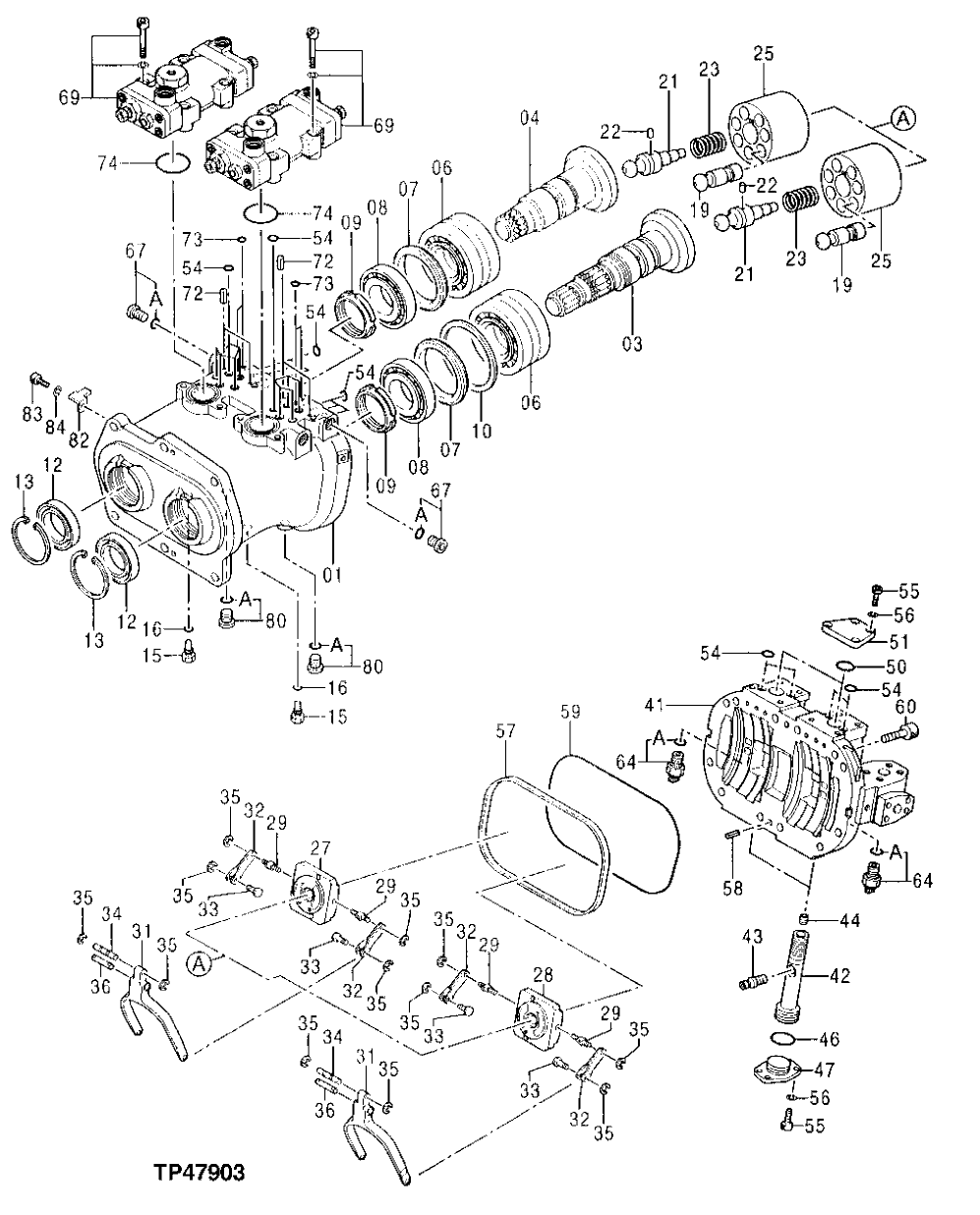

Схема запчастей John Deere 00LC - 241 - Pump Unit 2160 VEHICLE HYDRAULICS

Артикул

Название

Примечание

Количество

1

Housing

SUB AT183691 Pump Assembly

1шт.

1032319

Housing

1шт.

3

2036807

Disk

SUB FOR AT213734

1шт.

2043207

Drive Disk

1шт.

4

2036808

Disk

SUB FOR AT213735

1шт.

2043211

Drive Disk

1шт.

6

4337419

Cylindrical Roller Bearing

SUB FOR AT213873

2шт.

4410050

Spherical Roller Bearing

2шт.

7

4348182

Ring

SUB FOR AT213920

2шт.

4339171

Ring

2шт.

8

4337483

Cylindrical Roller Bearing

SUB FOR AT213874

2шт.

4622945

Spherical Roller Bearing

2шт.

9

4178173

Nut

M60 SUB FOR T107755

2шт.

10

4330054

Thrust Washer

115 X 130 X 3 mm (4.528" X 5.118" X 0.118") SUB FOR AT202466 OR AT170630

1шт.

12

T225266

Seal

SUB FOR AT213847 OR 4333170

2шт.

13

4116290

Snap Ring

SUB FOR TH111929

2шт.

15

4233165

Fitting

SUB FOR AT154164

2шт.

16

M800650

Packing

2шт.

19

8059452

Piston

SUB FOR AT214351

14шт.

21

4337035

Shaft

SUB FOR AT213871

2шт.

22

4198956

Pin Fastener

5 X 10 mm (0.197" X 0.394") SUB FOR T107766

2шт.

23

4179181

Compression Spring

SUB FOR T107767

2шт.

25

2036744

Rotor

SUB FOR AT213730

2шт.

27

2036795

Flow Control Hyd. Valve

SUB FOR AT213733

1шт.

28

2036786

Flow Control Hyd. Valve

SUB FOR AT213732

1шт.

29

4179179

Dowel Pin

SUB FOR TH109874

4шт.

31

3075674

Link

SUB FOR AT213793

2шт.

32

9724756

Lever

SUB FOR TH109873

4шт.

33

4179177

Dowel Pin

6 X 10 mm (0.236" X 0. 394") SUB FOR TH109875

4шт.

34

4179176

Dowel Pin

6 X 44 mm (0.236" X 1. 732") SUB FOR TH109876

2шт.

35

CH17951

Ring

12шт.

36

4200227

Dowel Pin

SUB FOR TH109878

2шт.

41

1020623

Cylinder Head

SUB FOR AT213721

1шт.

42

3069541

Piston

SUB FOR AT213762

2шт.

43

4338053

Pin

SUB FOR AT213876

2шт.

44

4337812

Set Screw

SUB FOR AT213875

2шт.

46

4355085

O-Ring

SUB FOR AT213975

2шт.

47

4338060

Stop

SUB FOR AT213877

2шт.

50

4355083

O-Ring

SUB FOR AT213974 OR 0444001

2шт.

51

4338061

Cover

SUB FOR AT213878

2шт.

54

CH11560

Packing

20шт.

55

19M8439

Screw

M8 X 25

16шт.

56

4514388

Spring Washer

SUB FOR TH101835

16шт.

57

3070581

Packing

SUB FOR AT213767

1шт.

58

34M7061

Spring Pin

8 X 20 mm

2шт.

59

4342840

O-Ring

SUB FOR AT213890

1шт.

60

19M8341

Screw

M12 X 45

12шт.

64

4436271

Sensor

SUB FOR AT175981 OR 4355012 Pump Pressure

2шт.

64A

TH102560

O-Ring

15.800 X 2.400 mm (0.622" X 3/32") SUB FOR AT175984

1шт.

67

9134110

Fitting

SUB FOR AT203649

2шт.

67A

M800650

Packing

1шт.

69

9152669

Regulator

SUB FOR AT214395

2шт.

72

34M3845

Spring Pin

4 X 10 mm

4шт.

73

4343074

O-Ring

SUB FOR AT213894

4шт.

74

4348665

O-Ring

SUB FOR AT213922

2шт.

80

9134111

Fitting

SUB FOR AT203648

2шт.

80A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

82

4252767

Bracket

SUB FOR AT154206

1шт.

83

0209423

Bolt

SUB FOR TH100738

1шт.

84

12M7133

Lock Washer

6 mm SUB FOR 12M7129

1шт.

Выбрано товаров: 60
