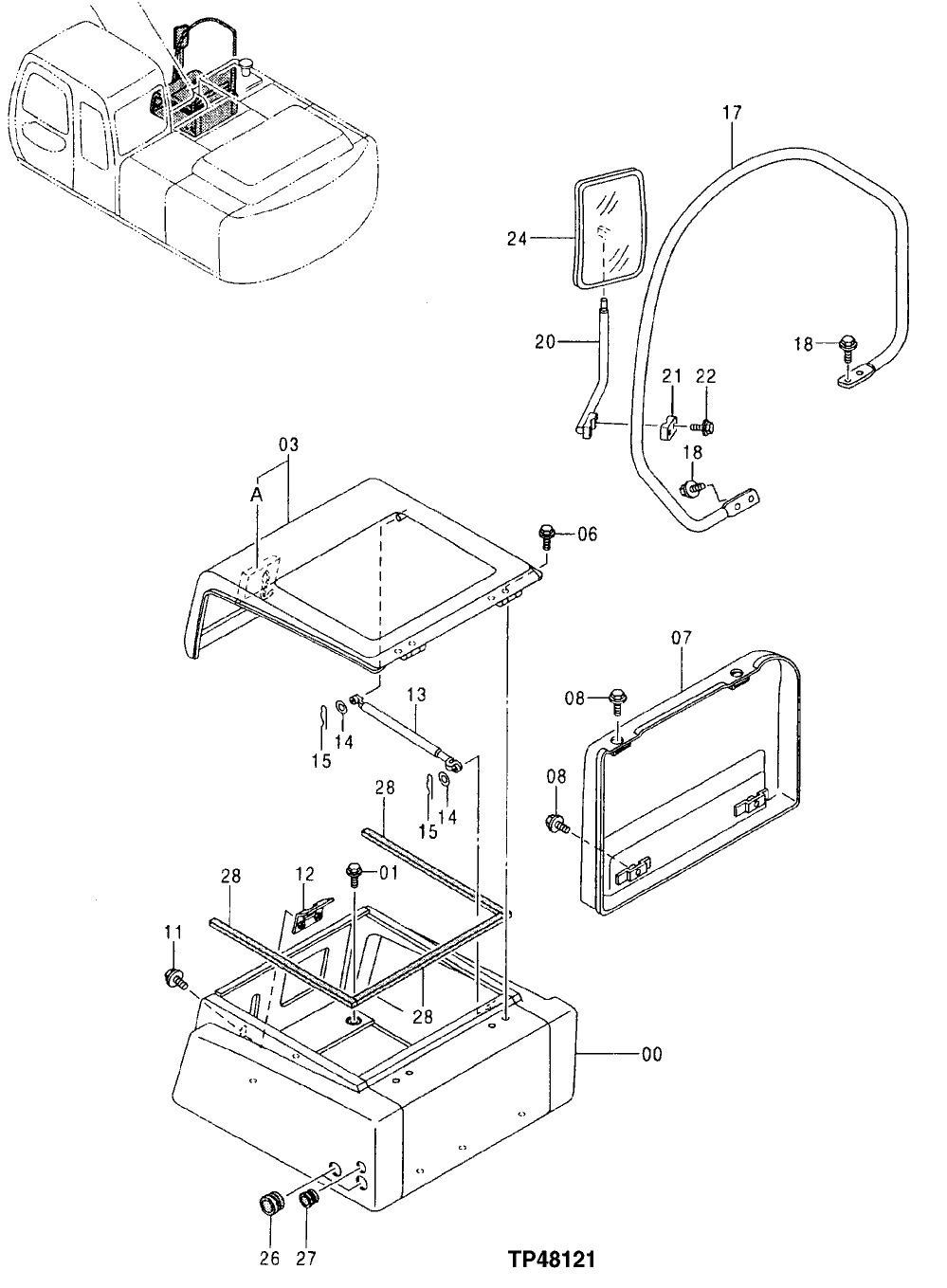

Запчасти John Deere 00LC 234 - TOOL BOX COVER 1910 HOOD OR ENGINE ENCLOSURE

0

6015188J

Toolbox

SUB FOR AT214328 OR 6015188

1шт.

1

12M7066

Lock Washer

10 mm

6шт.

19M7402

Cap Screw

M10 X 25

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

3

6015244J

Cover

SUB FOR AT214329 OR 6015244

1шт.

3A

4363915

Latch

SUB FOR AT215944

1шт.

6

12M7066

Lock Washer

10 mm

4шт.

19M7402

Cap Screw

M10 X 25

4шт.

7

7030510J

Cover

SUB FOR AT214341 OR 7030510

1шт.

8

19M7662

Cap Screw

M10 X 30

4шт.

24M7346

Washer

11 X 20 X 2 mm

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

11

19M7402

Cap Screw

M10 X 25

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

12

9745798

Catch

SUB FOR AT214409

1шт.

13

4352457

Cylinder

SUB FOR AT213967

1шт.

14

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

15

H132922

Cotter Pin

2шт.

17

8070627

Rail

1шт.

8070627

Rail

1шт.

18

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

19M8011

Cap Screw

M12 X 30

4шт.

20

8074788

Stop

SUB FOR AT214363, AT219497, AT185206

1шт.

8076066

Arm

SUB FOR AT185899

1шт.

21

AT219494

Clamp

SUB FOR P63173

1шт.

4201441

Clamp

SUB FOR AT131743

1шт.

22

19M8359

Cap Screw

M8 X 45

2шт.

Washer

12M7065 NLA

2шт.

24

4317906

Rear View Mirror

1шт.

4420724

Rear View Mirror

1шт.

26

4276215

Grommet

SUB FOR AT155307

2шт.

27

4613243

Grommet

SUB FOR AT122152, 94-2807

1шт.

28

4357933

Isolator

SUB FOR AT215527

3шт.
