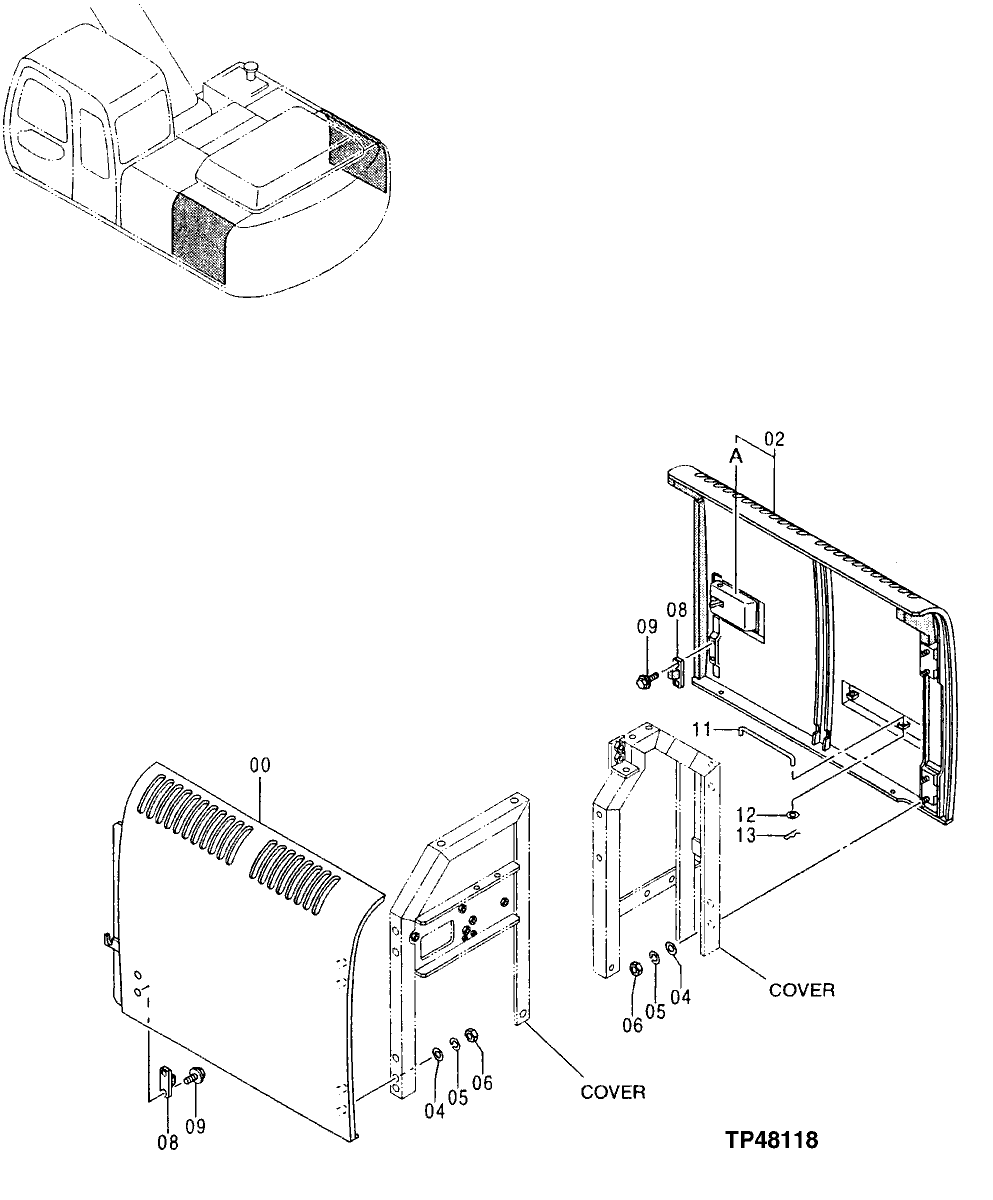

Запчасти John Deere 00LC 230 - COVER 1910 HOOD OR ENGINE ENCLOSURE

0

5004444

Shield

(SUB FOR AT214322)

1шт.

2

5005150

Door

(SUB FOR AT215577)

1шт.

2A

4361763

Lock

(SUB FOR AT214010)

1шт.

4

24M7028

Washer

10.500 X 20 X 2 mm

8шт.

5

12M7066

Lock Washer

10 mm

8шт.

6

14M7274

Nut

M10

8шт.

8

4175254

Stop

(SUB FOR AT154916)

2шт.

9

19M7923

Cap Screw

M6 X 12 (SUB FOR 19M6614)

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

11

4341788

Rod

(SUB FOR AT213884 OR 4341788J)

1шт.

12

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

13

H132922

Cotter Pin

1шт.
