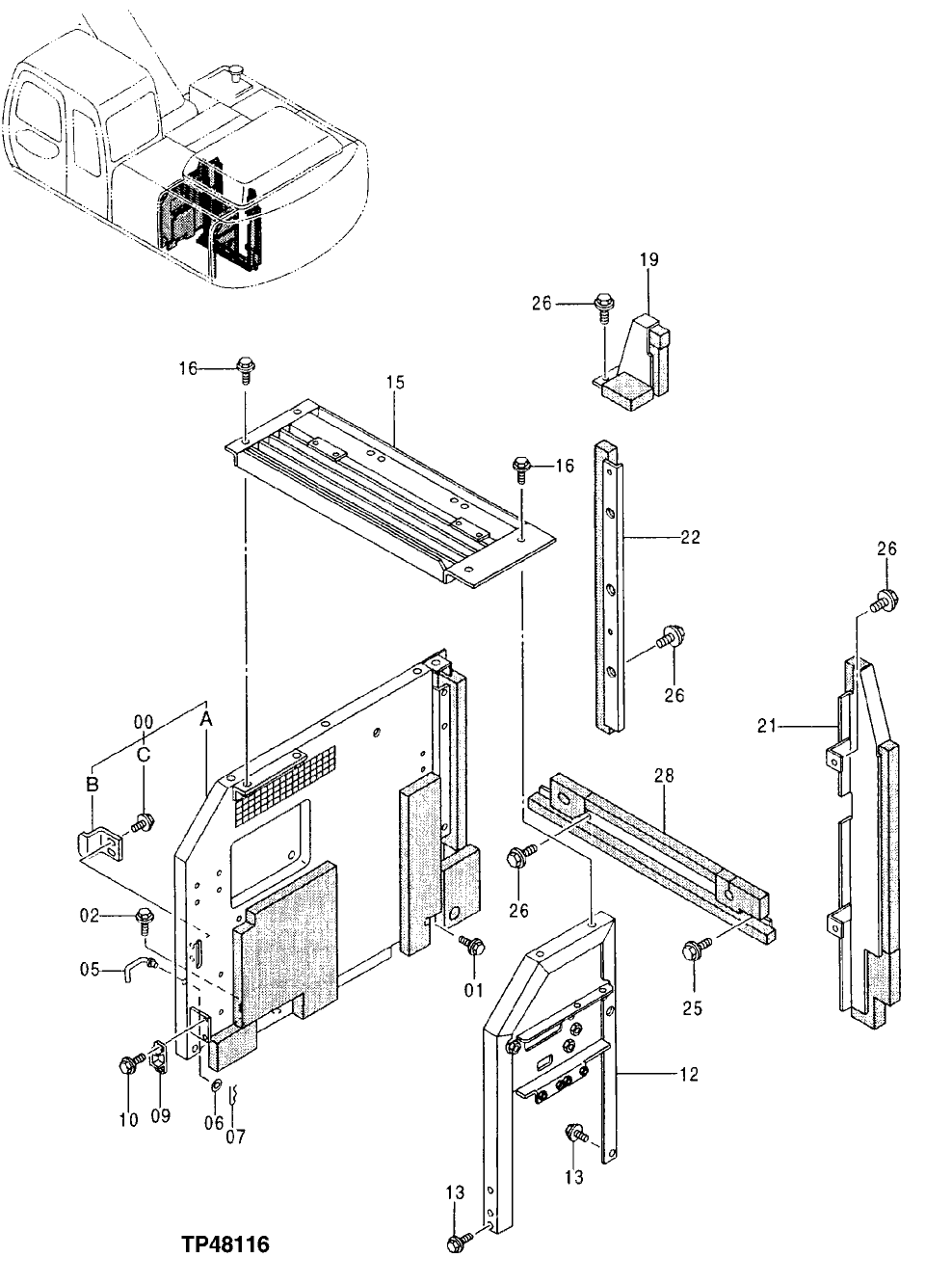

Запчасти John Deere 00LC 228 - COVER 1910 HOOD OR ENGINE ENCLOSURE

0

Cover

(NOT AVAILABLE FOR SERVICE)

1шт.

0A

6016078

Cover

(SUB FOR AT215579)

1шт.

0B

4257087

Stop

(SUB FOR AT154930)

1шт.

0C

19M7662

Cap Screw

M10 X 30

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

1

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

2

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

2шт.

19M7403

Cap Screw

M12 X 35

2шт.

5

9738313

Bar

(SUB FOR AT155585)

1шт.

6

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

7

M800051

Pin

(SUB FOR CH10542)

1шт.

9

4175253

Bracket

(SUB FOR AT318015, AT154915)

1шт.

10

19M7923

Cap Screw

M6 X 12 (SUB FOR 19M6614)

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

12

7031416

Support

(SUB FOR AT215581)

1шт.

13

19M7662

Cap Screw

M10 X 30

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

15

7031423

Cover

(SUB FOR AT215582)

1шт.

16

19M7662

Cap Screw

M10 X 30

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

19

7032039

Cover

(SUB FOR AT215585)

1шт.

21

7032058

Cover

(SUB FOR AT215586)

1шт.

22

8066717

Channel

(SUB FOR AT215599)

1шт.

25

19M7662

Cap Screw

M10 X 30

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

26

19M7402

Cap Screw

M10 X 25

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

28

8067692

Cover

(SUB FOR AT215605)

1шт.
