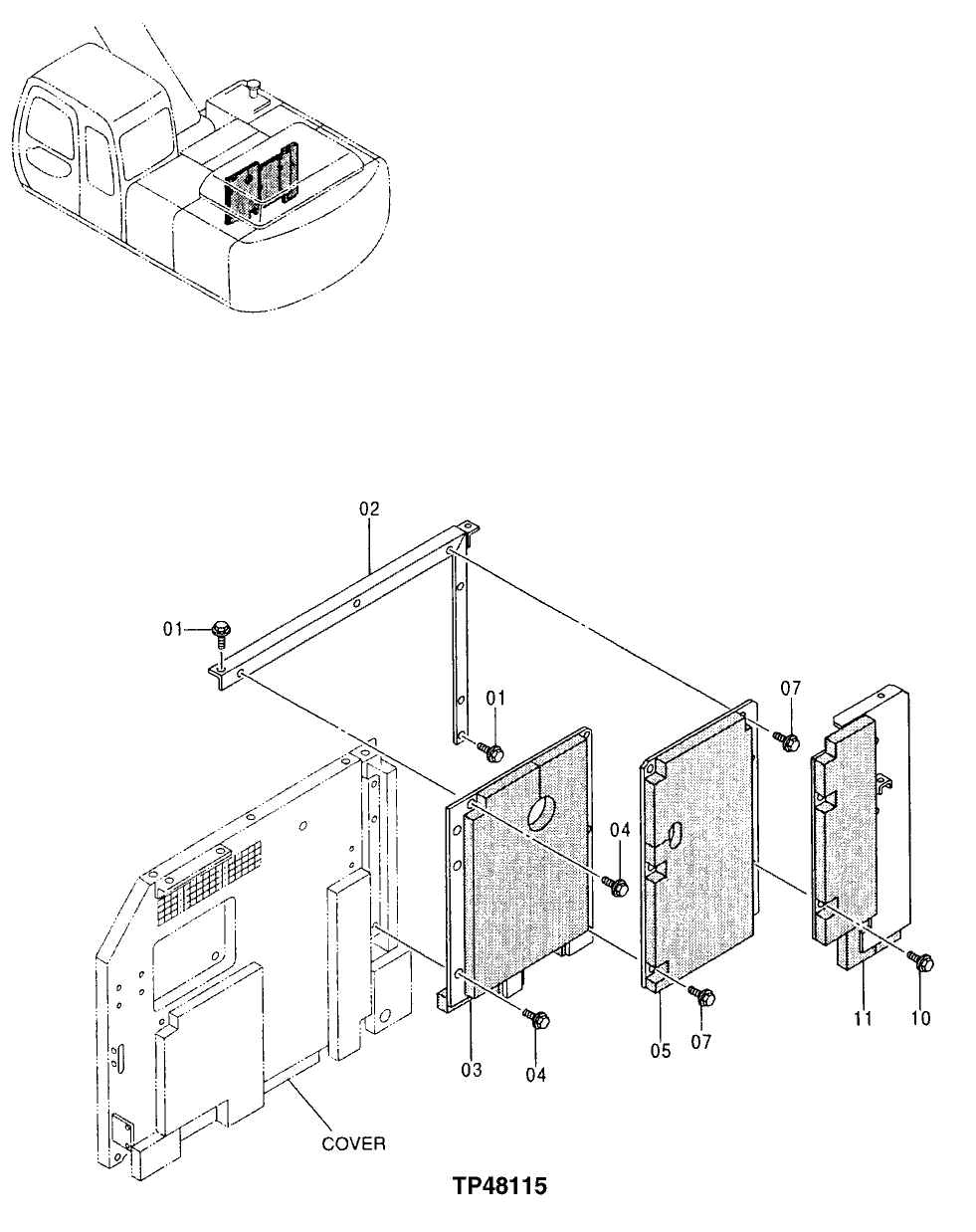

Запчасти John Deere 00LC 227 - COVER 1910 HOOD OR ENGINE ENCLOSURE

1

19M7662

Cap Screw

M10 X 30

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

2

8067993

Support

(SUB FOR AT215607)

1шт.

3

7032125

Cover

(SUB FOR AT215589)

1шт.

4

19M7402

Cap Screw

M10 X 25

3шт.

24M7346

Washer

11 X 20 X 2 mm

3шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

3шт.

5

8066729

Cover

(SUB FOR AT214379)

1шт.

7

19M7402

Cap Screw

M10 X 25

4шт.

24M7346

Washer

11 X 20 X 2 mm

4шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

10

19M7402

Cap Screw

M10 X 25

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

11

7032068

Cover

(SUB FOR AT214344)

1шт.
