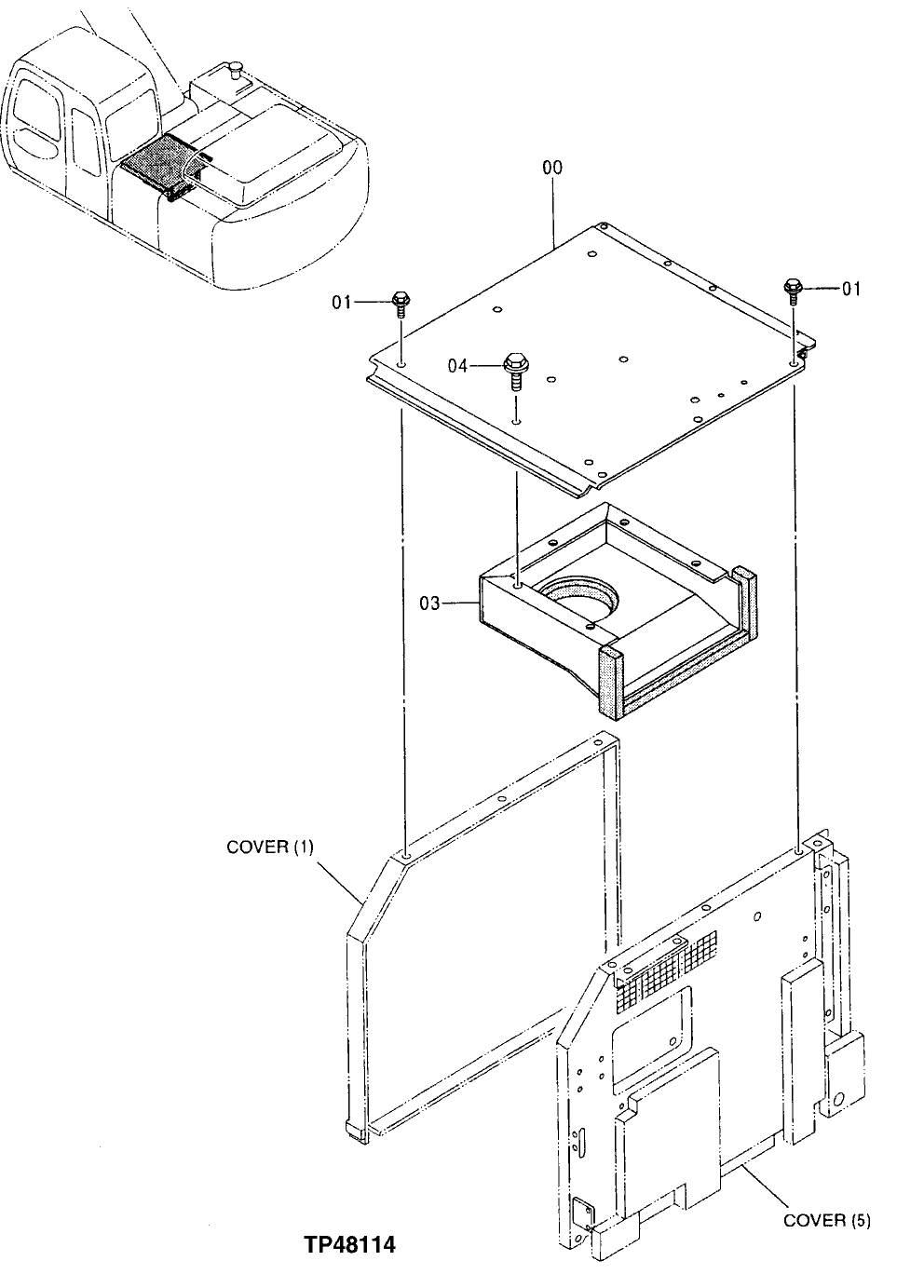

Запчасти John Deere 00LC 225 - COVER 1910 HOOD OR ENGINE ENCLOSURE

0

7032015

Cover

(SUB FOR AT215583)

1шт.

1

19M7662

Cap Screw

M10 X 30

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

12M7066

Lock Washer

10 mm

6шт.

3

7032021

Cover

(SUB FOR AT215584)

1шт.

4

19M7402

Cap Screw

M10 X 25

5шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

5шт.

24M7346

Washer

11 X 20 X 2 mm

5шт.
