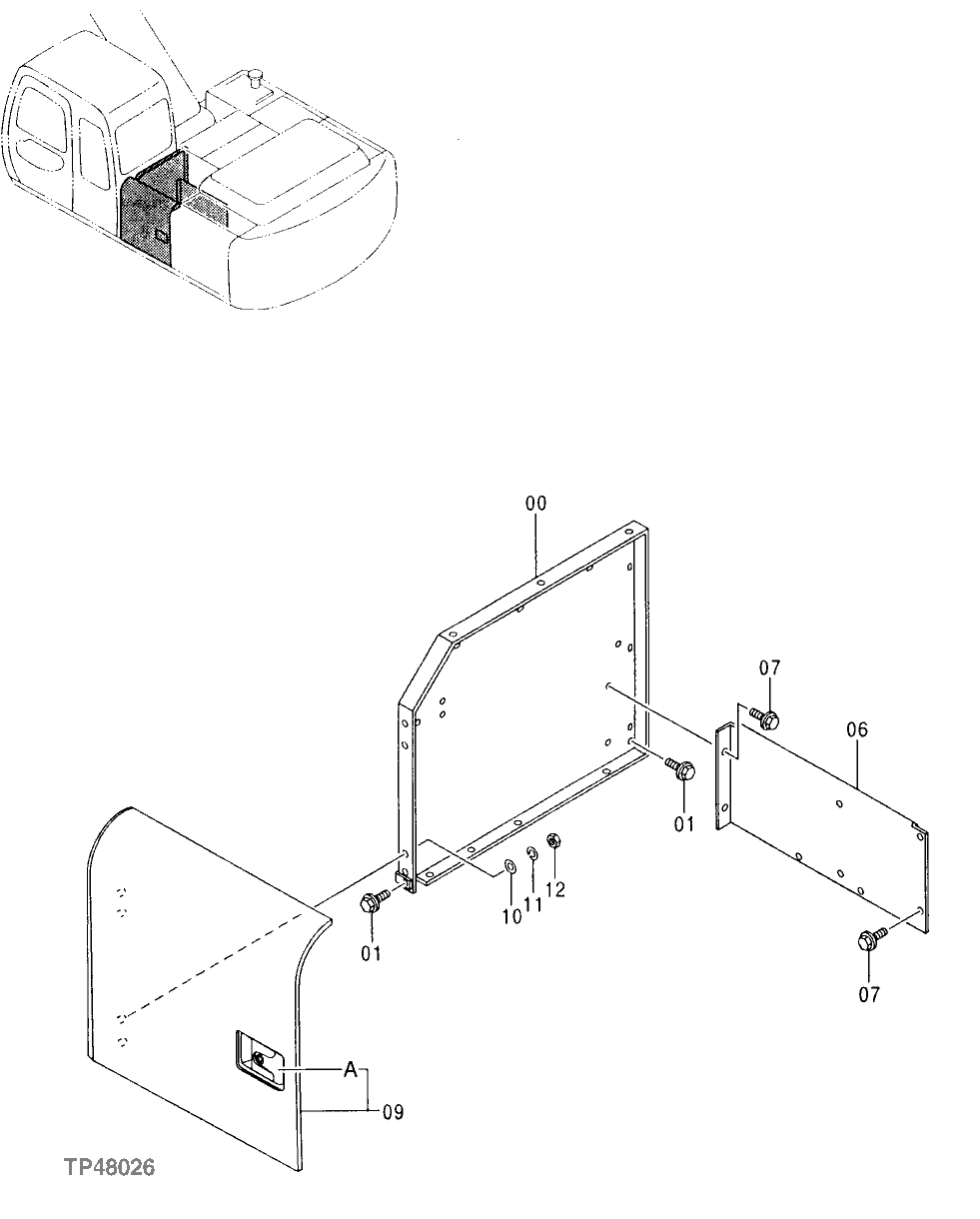

Запчасти John Deere 00LC 224 - COVER 1910 HOOD OR ENGINE ENCLOSURE

0

7029365J

Cover

(SUB FOR AT214337 OR 7029365)

1шт.

1

19M7662

Cap Screw

M10 X 30

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

6

3070725

Cover

(SUB FOR AT213768)

1шт.

7

19M7402

Cap Screw

M10 X 25

6шт.

24M7346

Washer

11 X 20 X 2 mm

6шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

6шт.

9

5004445J

Door

(SUB FOR AT214323 OR 5004445)

1шт.

9A

4361763

Lock

(SUB FOR AT214010)

1шт.

10

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

11

12M7066

Lock Washer

10 mm

4шт.

12

14M7274

Nut

M10

4шт.
