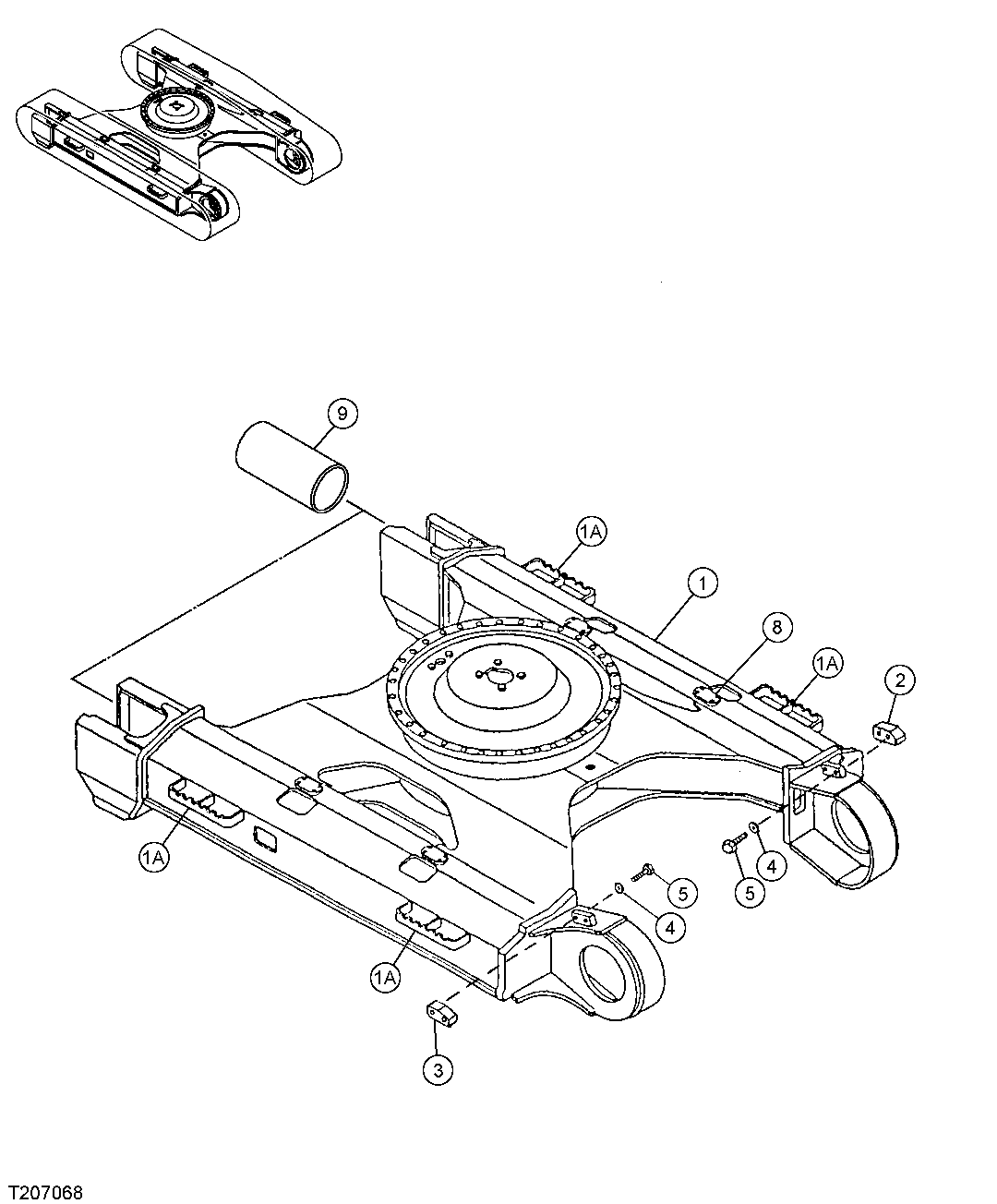

Запчасти John Deere 00LC 14 - TRACK FRAME 0130 TRACK SYSTEMS

1

Frame

(NOT AVAILABLE FOR SERVICE)

1шт.

1A

4447430

Step

4шт.

2

3080129

Retainer

(SUB FOR AT181147)

1шт.

3

3080128

Retainer

(SUB FOR AT181148)

1шт.

4

24M7338

Washer

17 X 30 X 3 mm

4шт.

5

19M7719

Cap Screw

M16 X 70

4шт.

6

4339101

Line

(SUB FOR AT192123)

2шт.

7

4339137

Bracket

(SUB FOR AT192124)

4шт.

8

4339137

Bracket

4шт.

9

4339101

Line

2шт.
