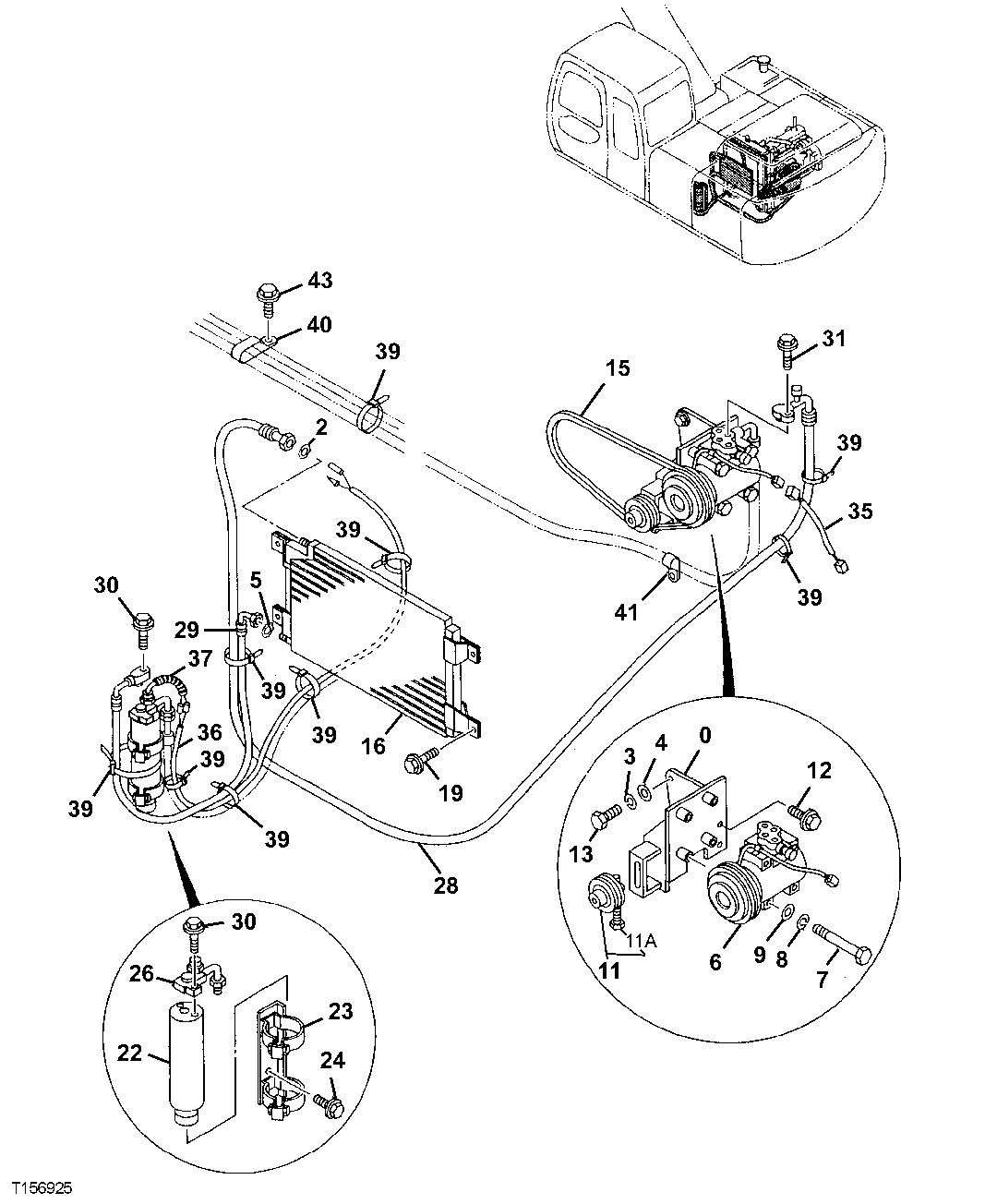

Запчасти John Deere 00LC 208 - AIR CONDITIONER SYSTEM ( - 050798) 1830 HEATING AND AIR CONDITIONING

0

7032002

Bracket

SUB FOR AT215114

1шт.

2

957366

O-Ring

SUB FOR AT188388 AND 4350207

1шт.

3

12H294

Lock Washer

5/8"

2шт.

4

24M7053

Washer

17 X 30 X 3 mm

2шт.

5

CH11568

Packing

SUB FOR AT181001 4350187 AND 4226445

1шт.

6

4333459

Compressor

SUB FOR AT215510

1шт.

7

J900804

Cap Screw

SUB FOR AT215473

4шт.

8

Washer

12M7065 NLA

4шт.

9

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

11

4346770

Pulley

SUB FOR AT213915

1шт.

11A

4451204

Bolt

1шт.

12

19M8081

Cap Screw

M10 X 80 SUB FOR AT215468 OR J021080; USE ALONG WITH 12M7066 , AND 24M7028

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

13

19M7489

Cap Screw

M16 X 45

2шт.

15

4661031

V-Belt

SUB FOR AT215493 OR 4235487 AND AT332521

1шт.

16

4356628

Heat Exchanger

SUB FOR AT215526

1шт.

19

19M7139

Cap Screw

M8 X 20

4шт.

Washer

12M7065 NLA

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

22

4333461

Tank

SUB FOR AT215511

1шт.

23

4333462

Support

SUB FOR AT215512

1шт.

24

19M7139

Cap Screw

M8 X 20

2шт.

Washer

12M7065 NLA

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

26

4339727

Structural Tube

SUB FOR AT215517

1шт.

28

4373976

Refrigerant Hose

SUB FOR AT215099

1шт.

29

4373977

Refrigerant Hose

SUB FOR AT215100

1шт.

30

19M7933

Cap Screw

M6 X 25 19M7286 NLA

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

31

19M7874

Cap Screw

M6 X 30

2шт.

12H302

Lock Washer

1/4"

2шт.

35

4342850

Wiring Harness

SUB FOR AT215519

1шт.

36

4291673

Wiring Harness

SUB FOR AT155388

1шт.

37

4333463

Switch

SUB FOR AT215513

1шт.

39

H77698

Tie Band

9шт.

40

4190266

Clip

SUB FOR TH108793

1шт.

41

T24432

Clamp

1шт.

43

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.
