Запчасти John Deere 00LC 13 - REPLACEMENT TRACK CHAINS, SNAP RING MASTER (500005 - ) 0130 TRACK SYSTEMS

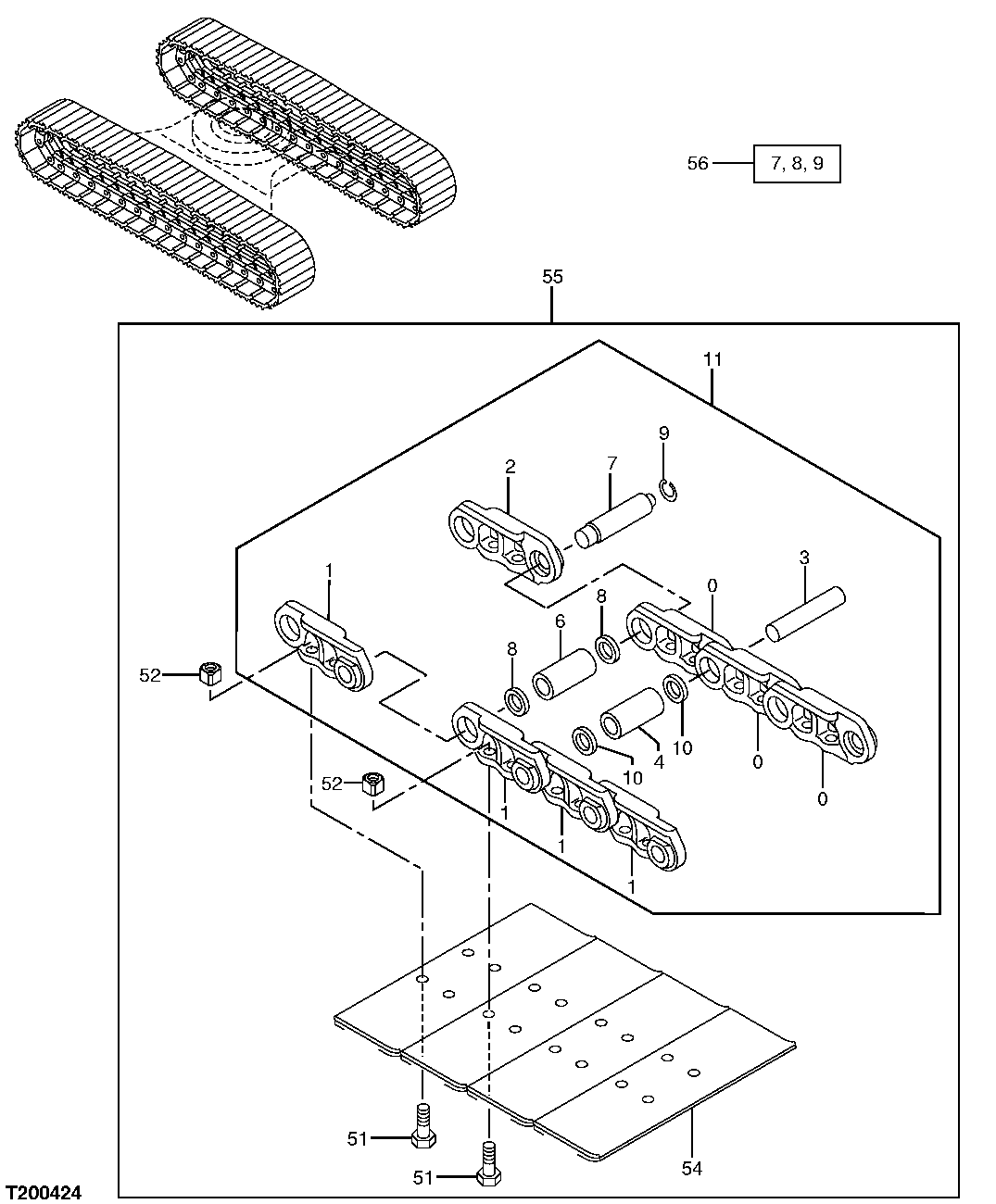

Схема запчастей John Deere 00LC - 13 - REPLACEMENT TRACK CHAINS, SNAP RING MASTER (500005 - ) 0130 TRACK SYSTEMS

Артикул

Название

Примечание

Количество

0

AT180025

Link

(RIGHT)

48шт.

1

AT180027

Link

(LEFT)

49шт.

2

T209261

Master Track LINK-RH

(RIGHT MASTER)

1шт.

3

AT180028

Pin Fastener

48шт.

4

AT186162

Bushing

48шт.

6

AT219468

Bushing

1шт.

7

T209260

Master Track Pin

(MASTER)

1шт.

8

AT219471

Spacer

(MASTER)

1шт.

9

T209259

Snap Ring

2шт.

10

AT186161

Seal

96шт.

11

AT311612

Track Chain W/O Shoes

1шт.

51

AT180036

Track Bolt

M18 X 52

196шт.

52

AT180048

Nut

M18

196шт.

54

AT180034

Open Center 3 Bar Shoe

(600MM WIDE)

49шт.

AT180035

Open Center 3 Bar Shoe

(700MM WIDE)

49шт.

AT219470

Open Center 3 Bar Shoe

(800MM WIDE)

49шт.

55

AT311613

Track Assembly With Shoes

(COMPLETE TRACK ASSEMBLY WITH 600MM SHOES)

1шт.

AT311614

Track Assembly With Shoes

(COMPLETE TRACK ASSEMBLY WITH 700MM SHOES)

1шт.

AT311615

Track Assembly With Shoes

(COMPLETE TRACK ASSEMBLY WITH 800MM SHOES)

1шт.

56

AT313621

Chain Kit

(MASTER PIN KIT) (INCLUDES T20 9260, T209259 AND (2) AT219471)

1шт.

Выбрано товаров: 20
