Запчасти John Deere 00LC 12 - TRACK CHAINS, PRESS IN MASTER (S.N. 500005- ) (500005 - ) 0130 TRACK SYSTEMS

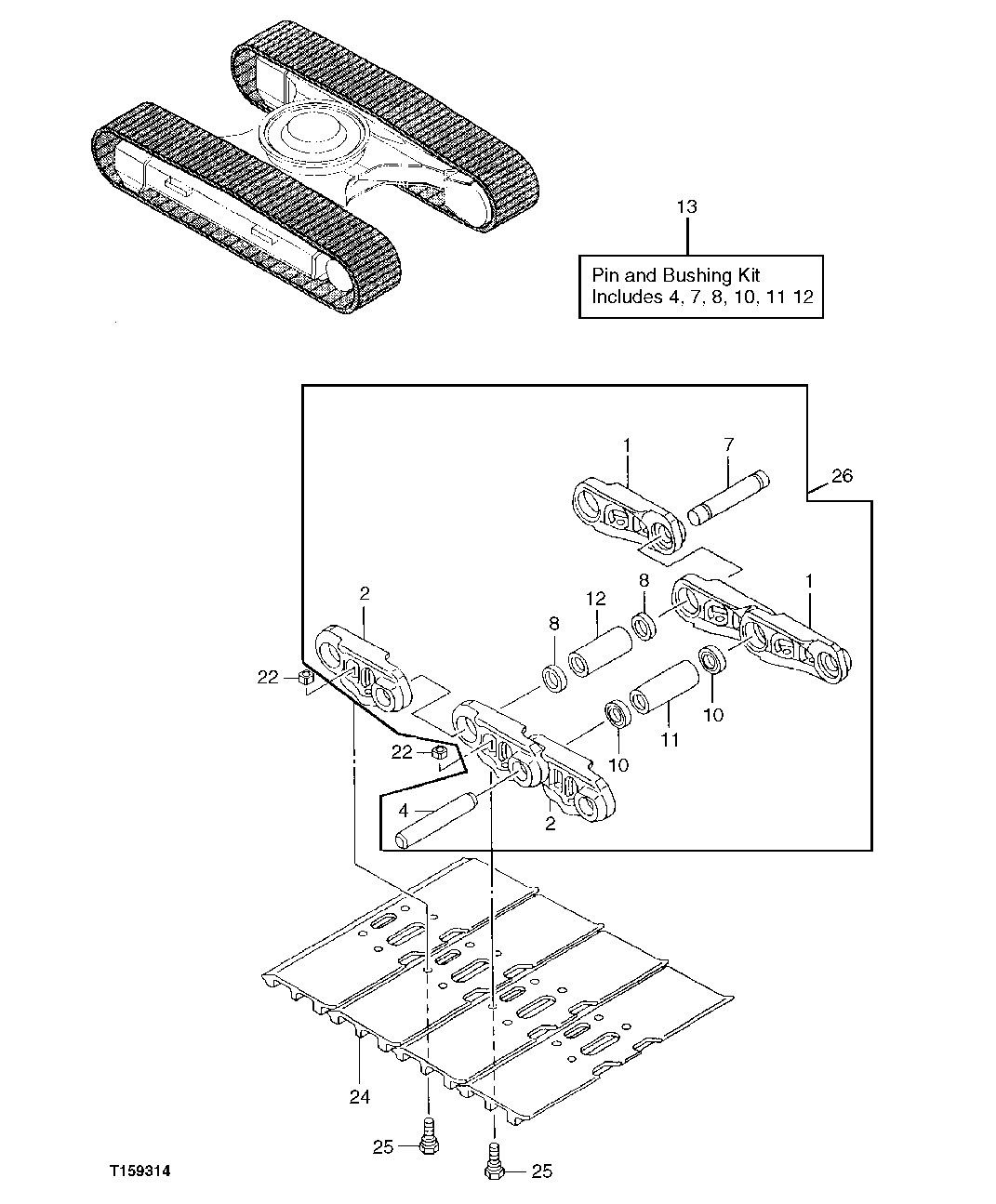

Схема запчастей John Deere 00LC - 12 - TRACK CHAINS, PRESS IN MASTER (S.N. 500005- ) (500005 - ) 0130 TRACK SYSTEMS

Артикул

Название

Примечание

Количество

1

AT180025

Link

49шт.

2

AT180027

Link

49шт.

4

AT180028

Pin Fastener

(A) 38 X 212 mm (1.496" X 8.346")

47шт.

7

AT180030

Pin Fastener

(A) (MASTER PIN) (ALSO ORDE R (2) AT219471 AND AT219468)

1шт.

8

Spacer

(MASTER) (FFSB13386 NO LONGER A VAILABLE) (REPLACED BY AT219471)

2шт.

AT219471

Spacer

(A) (MASTER) (ALSO ORDE R AT180030 AND AT219468)

2шт.

10

AT180029

Seal

(DUAL SPRING WASHER)

192шт.

AT186161

Seal

(A) ("M" SEAL)

94шт.

11

Bushing

(AT180032 NO LONGER AVAILA BLE) (REPLACED BY AT186162)

47шт.

AT186162

Bushing

(A) (ALSO ORDER (2) AT1 86161)(USE WITH "M" SEAL)

47шт.

12

Master Track Bushing

(MASTER) (FFSB113387 NO LONGER A VAILABLE) (REPLACED BY AT219468)

1шт.

AT219468

Master Track Bushing

(A) (MASTER) (ALSO ORDER (2) AT219471 AND AT180030)

1шт.

13

AT187185

Pin & Bushing Kit

(INCLUDES PARTS MARKED (A))

1шт.

22

AT180048

Nut

(EACH SIDE OF UNIT)

196шт.

24

AT180034

Open Center 3 Bar Shoe

(600 MM) (EACH SIDE OF UNIT)

49шт.

AT180035

Open Center 3 Bar Shoe

(700 MM) (EACH SIDE OF UNIT)

49шт.

AT219470

Open Center 3 Bar Shoe

(800 MM) (EACH SIDE OF UNIT)

49шт.

25

AT180036

Track Bolt

(EACH SIDE OF UNIT)

196шт.

26

Track Chain W/O Shoes

(AT219478 NO LONGER AVAILABLE) ( SUB AT311612, SNAP RING STYLE) ( QUANTITY OF 1 EACH SIDE OF UNIT)

2шт.

Выбрано товаров: 19
