Запчасти John Deere 00LC 11 - Track Chains, Snap Ring Master ( - 500004) 0130 TRACK SYSTEMS

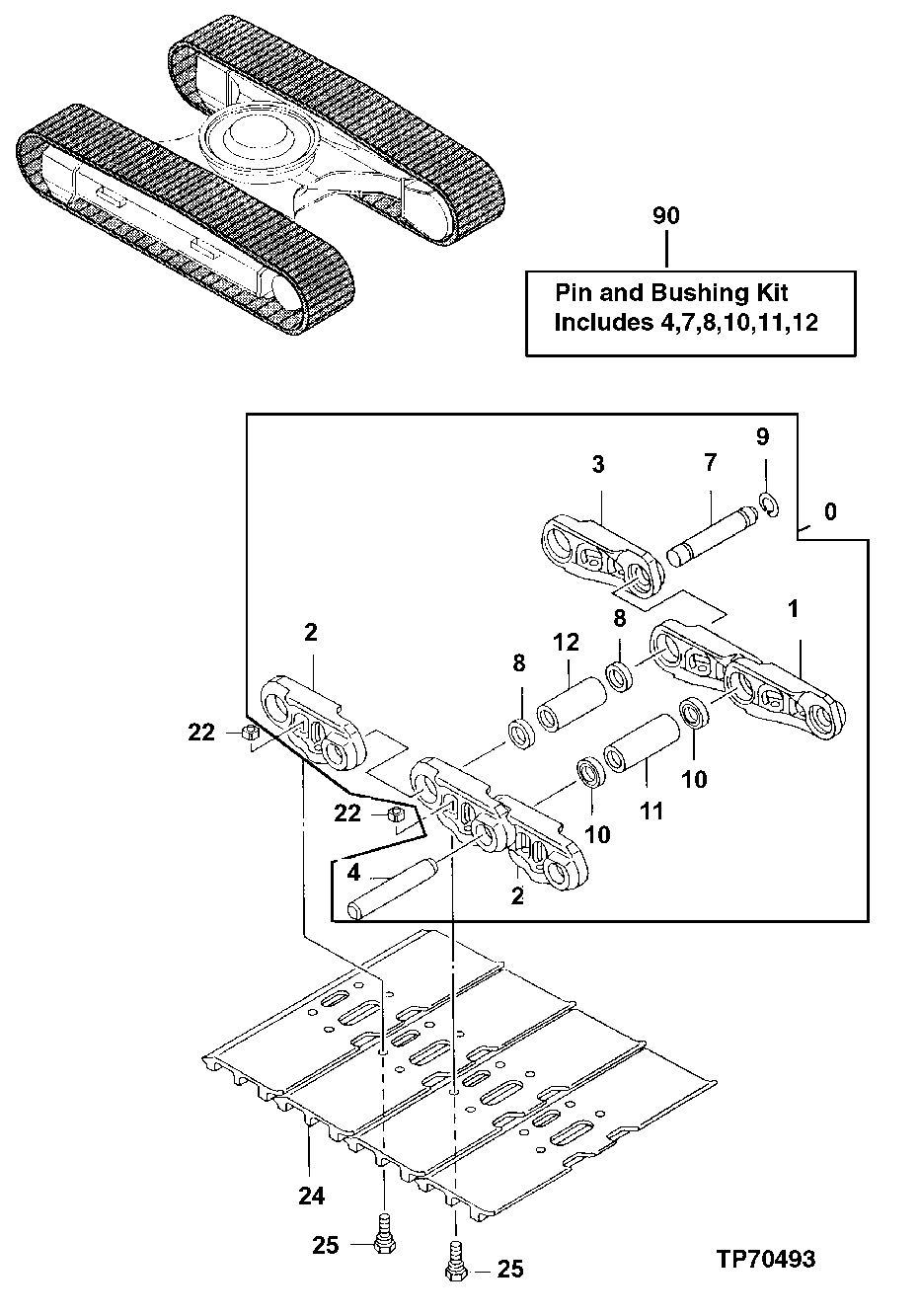

Схема запчастей John Deere 00LC - 11 - Track Chains, Snap Ring Master ( - 500004) 0130 TRACK SYSTEMS

Артикул

Название

Примечание

Количество

0

AT311612

Track Chain W/O Shoes

(SUB FOR AT214386 OR 9200211)(Q UANTITY OF 1 EACH SIDE OF UNIT)

2шт.

1

Track Link

( AT213715 NO LONGER AVAILABLE)

48шт.

2

AT180027

Link

(SUB FOR AT213716)

49шт.

3

T209261

Master Track LINK-RH

(SUB FOR AT213899)(MASTER)

1шт.

4

Pin Fastener

( AT174860 NO LONGER AVAILABLE)

47шт.

7

Pin

(AT174861 NO LONGER AVAILABLE) (REPLACE WITH T209260) (MASTER)

1шт.

8

AT219471

Spacer

Master

2шт.

9

T209259

Snap Ring

1шт.

10

4299066

Seal

(SUB FOR AT213823)

96шт.

11

AT186162

Bushing

(SUB FOR 4358588, AT213900 OR AT 219467 ) (ALSO ORDER (2) 4299066)

47шт.

12

Master Track Bushing

( AT174858 NO LONGER AVAILABL E) (SUB FOR AT213901 (MASTER))

1шт.

22

AT180048

Nut

(SUB FOR AT213805 OR 424 7133)(EACH SIDE OF UNIT)

196шт.

24

AT180034

Open Center 3 Bar Shoe

(SUB FOR AT213729 OR 2027982 )(600 G) (EACH SIDE OF UNIT)

49шт.

AT180035

Open Center 3 Bar Shoe

(SUB FOR AT213741 OR 2037789 )(700 G) (EACH SIDE OF UNIT)

49шт.

AT219470

Open Center 3 Bar Shoe

(SUB FOR AT213742 OR 2037790 )(800 G) (EACH SIDE OF UNIT)

49шт.

25

AT180036

Track Bolt

(SUB FOR AT213821, 4350565 O R 4297905)(EACH SIDE OF UNIT)

196шт.

90

Pin & Bushing Kit

(KIT NOT AVAILABLE FOR 9200211 TRACK CHAIN)

1шт.

Выбрано товаров: 17
