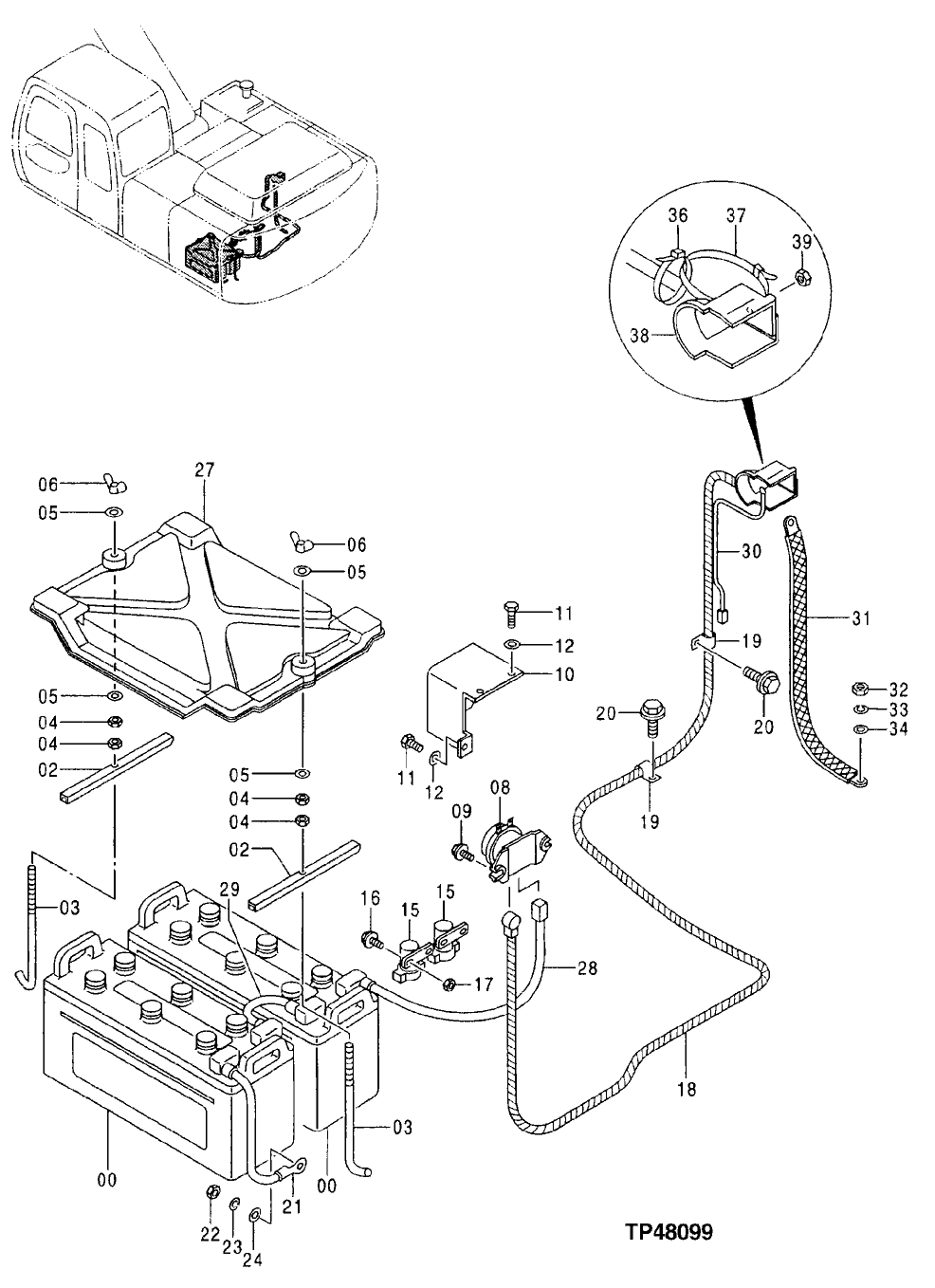

Запчасти John Deere 00LC 153 - ELECTRIC PARTS ( - 500000) 1674 WIRING HARNESS AND SWITCHES

0

TY23020

Dry Charged Battery

SUB FOR AT182291 OR TY21709, 12 VOLT

2шт.

2

4435074

Channel

SUB FOR TH104067

2шт.

3

4257034

Hook Bolt

SUB FOR AT155273

2шт.

4

14M7274

Nut

M10

4шт.

5

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

6

14M7025

Wing Nut

M10

2шт.

8

8943795431

Relay

SUB FOR 4255762 AND AT154229 Battery

1шт.

9

21M7288

Screw

M6 X 10

2шт.

21M7288

Screw

M6 X 10

2шт.

10

3056019

Cover

SUB FOR AT154139

1шт.

11

19M7932

Cap Screw

M8 X 16

3шт.

12

24M7055

Washer

8.400 X 16 X 1.600 mm

3шт.

15

AT145341

Relay

2шт.

16

19M7077

Cap Screw

M6 X 20

4шт.

17

14M7272

Nut

M6

4шт.

18

4373215

Battery Cable

SUB FOR AT215098 Starter To Battery Relay

1шт.

19

T28949

Clamp

SUB FOR TH108460 OR 4190273

2шт.

20

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

21

AR45925

Battery Cable

482.600 mm (19") Ground Strap

1шт.

22

14M7274

Nut

M10

1шт.

23

12M7066

Lock Washer

10 mm

1шт.

24

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

27

4351892

Cover

SUB FOR AT213963

1шт.

28

4350735

Battery Cable

SUB FOR AT213947 Battery To Battery Relay

1шт.

29

4350736

Battery Cable

SUB FOR AT213948 Battery To Battery

1шт.

30

4448296

Wiring Harness

SUB FOR AT155617 Starter

1шт.

31

AT38449

Ground Cable

1шт.

32

14M7274

Nut

M10

1шт.

33

12M7066

Lock Washer

10 mm

1шт.

34

12M7066

Lock Washer

10 mm

1шт.

36

H77698

Tie Band

1шт.

37

H77698

Tie Band

1шт.

38

Cover

Starter

1шт.

39

Nut

1шт.
