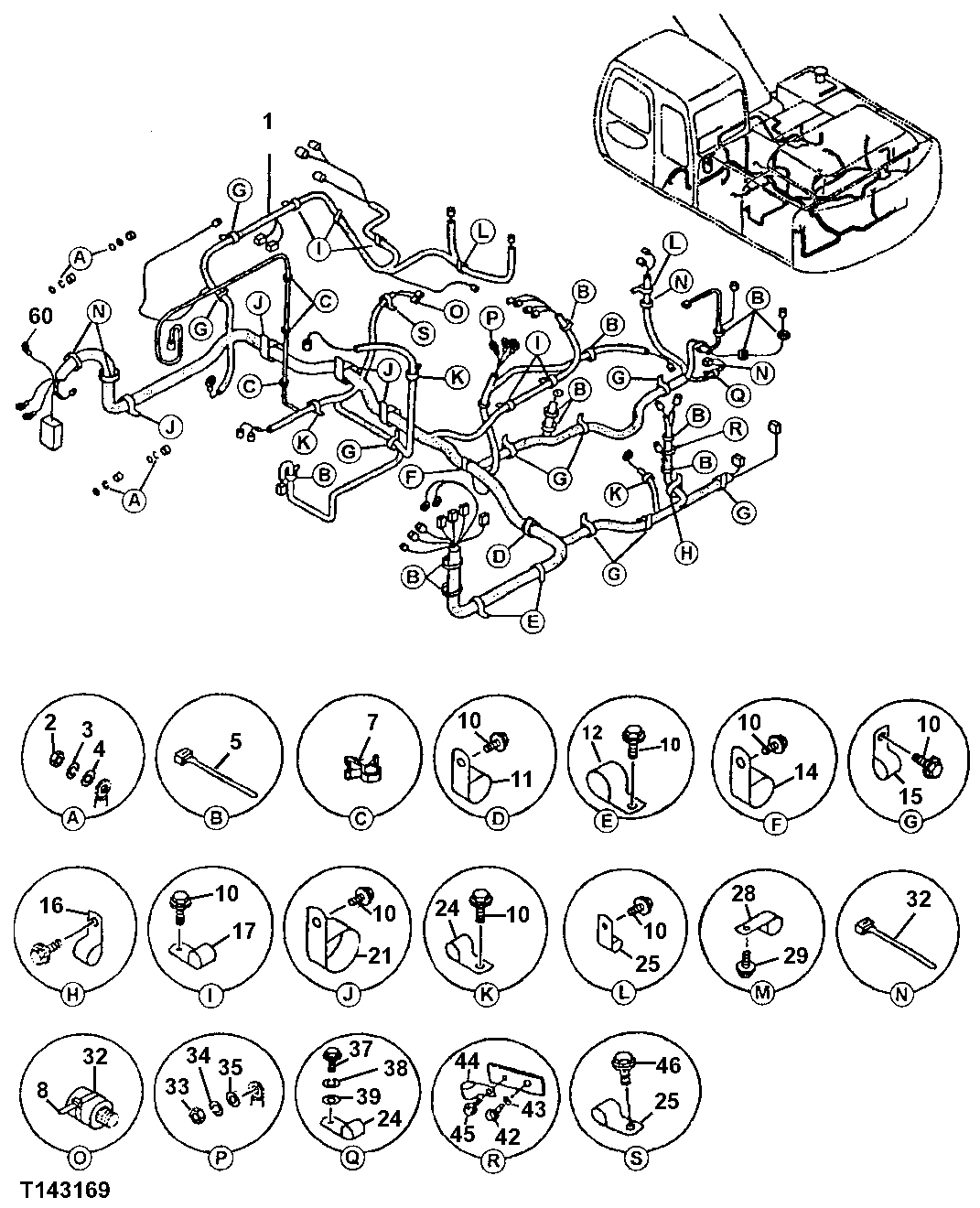

Запчасти John Deere 00LC 152 - ELECTRIC PARTS 1674 WIRING HARNESS AND SWITCHES

1

0003780

Wiring Harness

SUB FOR AT215084; SUB FOR AT189655; SEE D TAC SOLUTION FOR REPAIR KIT AND CONNECTORS

1шт.

1A

4270554

Fuse

SUB FOR AT160982; FUSIB LE LINK - 40 AMP - GREEN

2шт.

1B

4287670

Fuse

SUB FOR AT200499; FUSIBL E LINK - 60 AMP - YELLOW

1шт.

1C

4315323

Fuse

SUB FOR AT172435; FUSIBLE LINK - 45 AMP

1шт.

1D

4315324

Link

SUB FOR AT172436; FUSIBLE LINK - 75 AMP

1шт.

2

14M7274

Nut

M10

4шт.

3

12M7066

Lock Washer

10 mm

4шт.

4

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

5

H77698

Tie Band

SUB FOR M88199

13шт.

7

4343690

Clip

SUB FOR AT213895

3шт.

8

4207239

Cap

SUB FOR TH108591

1шт.

10

12M7066

Lock Washer

10 mm

ARшт.

19M7938

Cap Screw

M10 X 20

ARшт.

11

R50454

Clamp

SUB FOR TH109445 OR 4192034

1шт.

12

4190266

Clip

SUB FOR TH108793

2шт.

14

XCL-19

Hose Clamp

SUB FOR TH108459 OR 4192035

1шт.

15

T28949

Clamp

SUB FOR TH108460 OR 4190273

10шт.

16

T28949

Clamp

SUB FOR TH108458 OR 4190274

1шт.

17

4190275

Clamp

SUB FOR TH108598

5шт.

21

AT121321

Hose Clamp

4шт.

24

AH79175

Clip

SUB FOR TH108600 OR 4190272

5шт.

25

4190261

Clip

SUB FOR TH109649

3шт.

28

4000860

Clamp

SUB FOR AT154911

1шт.

29

12M7006

Lock Washer

6 mm

1шт.

19M8425

Cap Screw

M6 X 16 SUB FOR 19M7560

1шт.

32

H77698

Tie Band

5шт.

33

14M7297

Nut

M5

1шт.

34

12M7064

Lock Washer

5 mm

1шт.

35

24M7027

Washer

5.300 X 10 X 1 mm

1шт.

37

19M8456

Cap Screw

M8 X 100 TRAVEL ALARM MOUNTING HARDWARE

2шт.

AT219486

Bolt

TRAVEL ALARM MOUNTING HARDWARE

2шт.

38

Washer

12M7065 NLA

2шт.

39

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

42

19M7877

Cap Screw

M14 X 30

1шт.

43

12H317

Lock Washer

9/16"

1шт.

44

R73291

Clamp

SUB FOR TH108596; SUB FOR 4190262

1шт.

45

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

46

19M8017

Cap Screw

M12 X 20 SUB FOR AT200005 OR J 011220; USE ALONG WITH 12M7067

1шт.

12M7067

Lock Washer

12 mm

1шт.

60

Wiring Harness

AIR CONDITIONING WIRING HARNESS AT189654 NO LONGER REQUIRED - NO W IS PART OF COMPLETE WIRE HARNES S

1шт.
