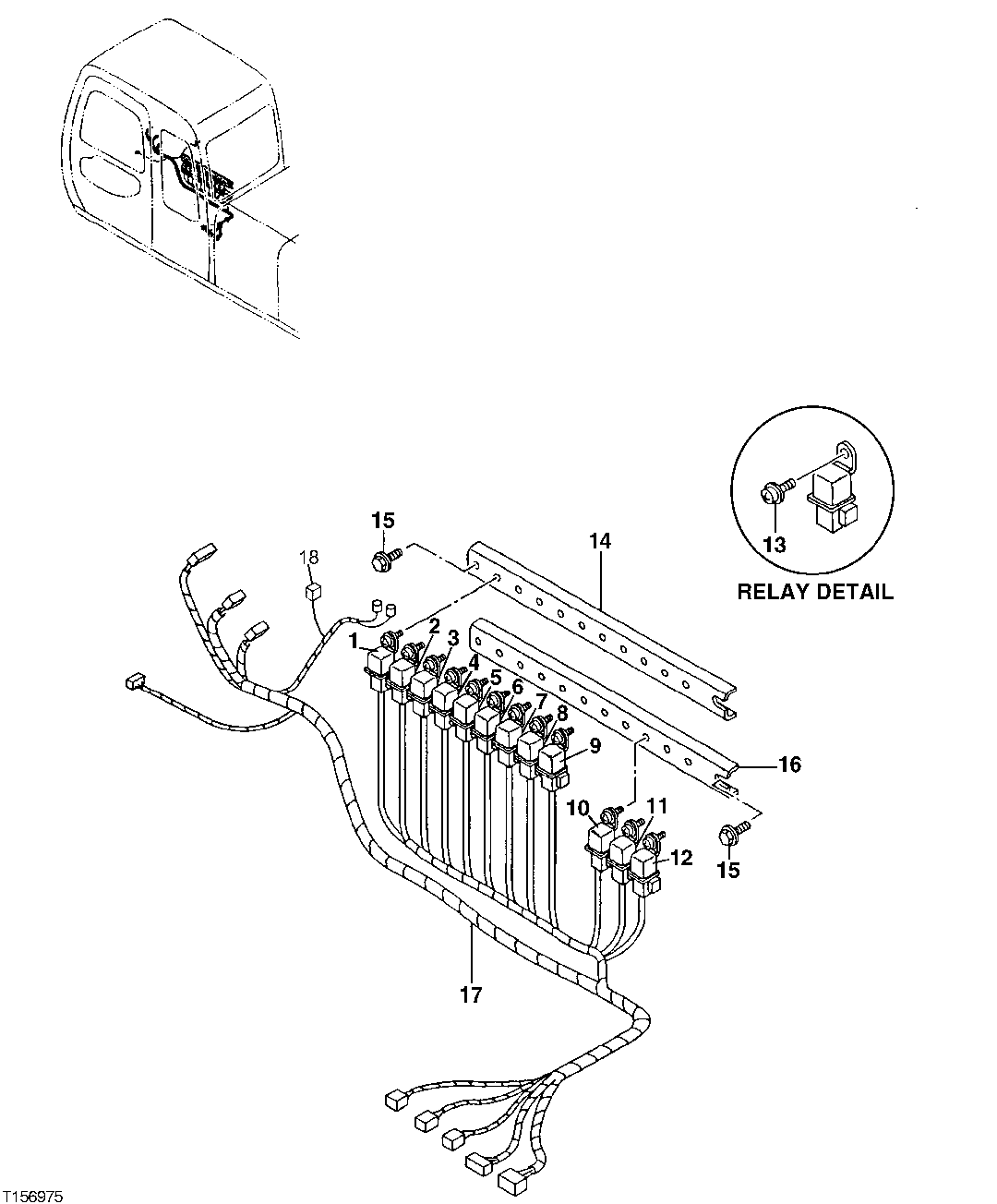

Запчасти John Deere 00LC 151 - Instrument Panel Relays 1674 WIRING HARNESS AND SWITCHES

1

4251588

Relay

SUB FOR AT154924 Wiper Green

1шт.

4414207

Relay

SUB FOR AT186647 Wiper Blue

1шт.

2

4251588

Relay

SUB FOR AT154924 Wiper Green

1шт.

4414207

Relay

SUB FOR AT186647 Wiper Blue

1шт.

3

4251588

Relay

SUB FOR AT154924 Wiper Green

1шт.

4414207

Relay

SUB FOR AT186647 Wiper Blue

1шт.

4

4251588

Relay

SUB FOR AT154924 Wiper Green

1шт.

4414207

Relay

SUB FOR AT186647 Wiper Blue

1шт.

5

4251588

Relay

SUB FOR AT154924 Horn Green

1шт.

4414207

Relay

SUB FOR AT186647 Horn Blue

1шт.

6

4251588

Relay

SUB FOR AT154924 Drive Light Green

1шт.

4414207

Relay

SUB FOR AT186647 Drive Light Blue

1шт.

7

4251588

Relay

SUB FOR AT154924 Work Light Green

1шт.

4414207

Relay

Work Light Blue

1шт.

8

4251588

Relay

SUB FOR AT154924 Windshield Washer Green

1шт.

4414207

Relay

SUB FOR AT186647 Windshield Washer Blue

1шт.

9

4251588

Relay

SUB FOR AT154924 Load Dump Green

1шт.

4414207

Relay

SUB FOR AT186647 Load Dump Blue

1шт.

10

4251588

Relay

SUB FOR AT154924 Start Aid Green

1шт.

4414207

Relay

SUB FOR AT186647 Start Aid Blue

1шт.

11

4251588

Relay

SUB FOR AT154924 Safety Green

1шт.

4414207

Relay

SUB FOR AT186647 Safety Blue

1шт.

12

4251588

Relay

SUB FOR AT154924 Travel Green

1шт.

4414207

Relay

SUB FOR AT186647 Travel Blue

1шт.

13

J900614

Bolt

SUB FOR TH104056

12шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

12шт.

12M7006

Lock Washer

6 mm

12шт.

14

8073968

Bracket

SUB FOR AT214362

1шт.

15

Washer

12M7065 NLA

4шт.

19M7932

Cap Screw

M8 X 16 SUB FOR 19M7162

4шт.

16

8073968

Bracket

SUB FOR AT214372; SUB FOR AT214362

1шт.

17

0002290

Wiring Harness

SUB FOR AT215083 Use With Green Relays

1шт.

0003461

Wiring Harness

SUB FOR AT186648 Use With Blue Relays

1шт.
