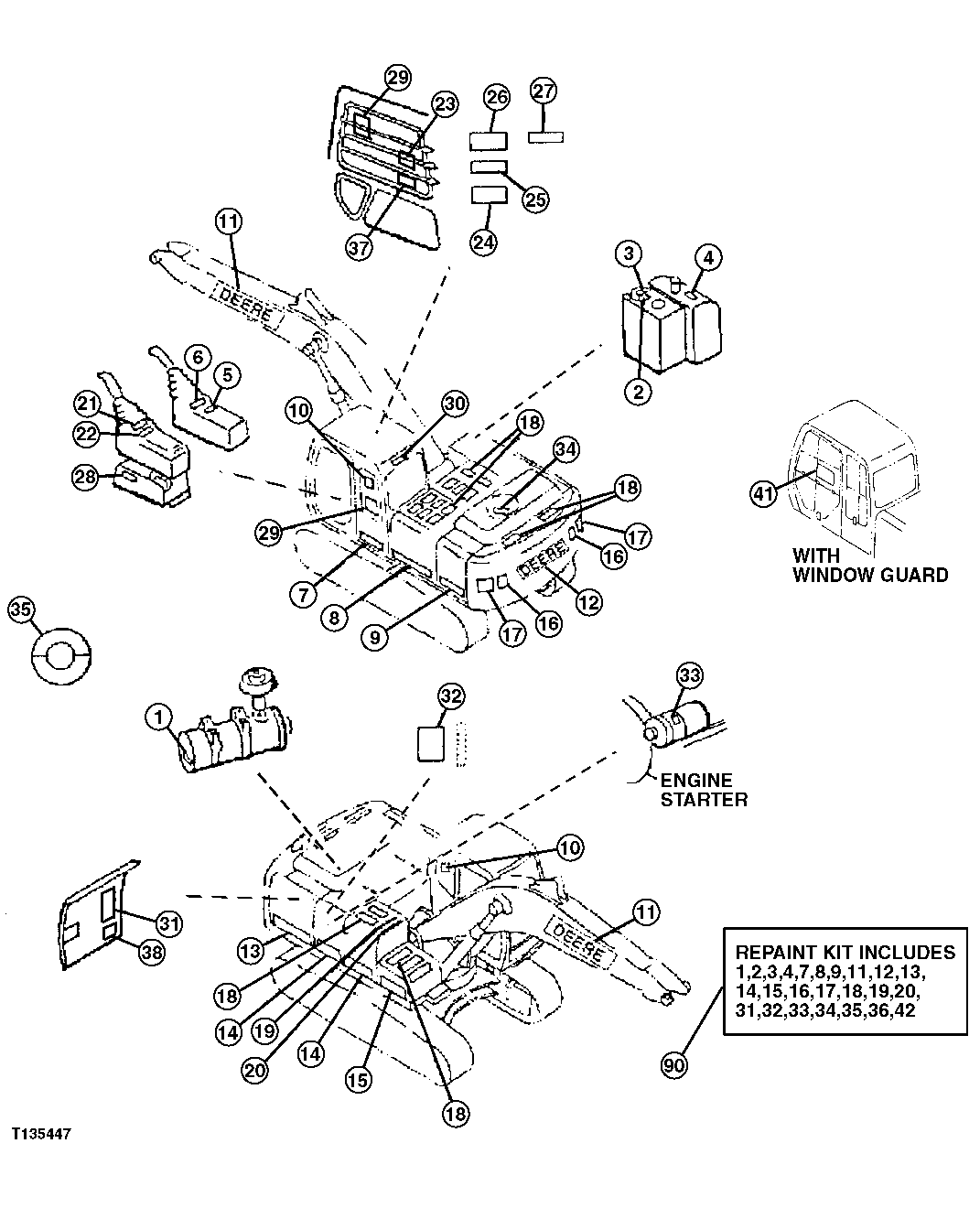

Запчасти John Deere 00LC 140 - LABELS AND DECALS 1320 VEHICLE FINISH AND TRIM

1

R56902

Label

(K) (DRY AIR CLEANER)

1шт.

2

P63448

Label

(K) (SUB FOR AT155733) (PUMP BLEED INFORMATION)

1шт.

3

T101942

Label

(K) (HYDRAULIC OIL)

1шт.

4

T79632

Label

(K) (DIESEL ONLY)

1шт.

5

4264805

Label

(SUB FOR AT155730)(IGNITION KEY SWITCH)

1шт.

6

T159842

Label

(RIGHT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)

1шт.

T159843

Label

(RIGHT CONTROL LEVER - JOHN DEE RE PATTERN) (YELLOW BACKGROUND)

1шт.

7

T161536

Label

(K) (SUB FOR P60910, THIS A PPLICATION)(STRIPE LEFT SIDE)

1шт.

8

T160713

Label

(K) (STRIPE LEFT SIDE)

1шт.

9

T160712

Label

(K) (200LC LEFT SIDE)

1шт.

10

T160538

Label

(TRANSPARENT LEAPING DEER)

2шт.

11

T160685

Label

(K) (DEERE - ON BOOM)

2шт.

12

T160684

Label

(K) (DEERE - ON COUNTERWEIGHT)

1шт.

13

T160686

Label

(K) (200LC RIGHT SIDE)

1шт.

14

T160687

Label

(K) (STRIPE - RIGHT SIDE)

2шт.

15

T160711

Label

(K) (STRIPE - RIGHT SIDE)

1шт.

16

JD5909

Reflector

(K) (RED REFLECTOR TAPE) (CUT TO LENGTH FROM JD5909 BULK MATERIAL) ( T160910 NOT AVAILABLE FOR SERVICE)

2шт.

17

T145893

Safety Sign

(K) (SUB FOR TH101411 )(WARNING - STAY CLEAR)

2шт.

18

H21259

Mat

(K)

16шт.

19

H21259

Mat

(K) (ANTI-SKID), (SUB FOR T161541 AND P60856)

1шт.

20

H21259

Mat

(K) (SUB FOR AT178903 OR T161541)

1шт.

21

T159841

Label

(LEFT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)

1шт.

T159844

Label

(LEFT CONTROL LEVER - JOHN DEE RE PATTERN) (YELLOW BACKGROUND)

1шт.

22

4288971

Label

(SUB FOR AT155729)(ETH ER AID - MOTION CANCEL)

1шт.

23

T159888

Label

ENGLISH (OPERATIONAL - START STOP)

1шт.

T163615

Label

SPANISH (OPERATIONAL - START STOP)

1шт.

T163598

Label

FRENCH (OPERATIONAL - START STOP)

1шт.

24

T159887

Safety Sign

ENGLISH (CAUTION)

1шт.

T162754

Label

SPANISH (CAUTION)

1шт.

T162774

Label

FRENCH (CAUTION)

1шт.

25

T146668

Safety Sign

(WARNING - AVOID CRUSHING)

1шт.

26

T146667

Safety Sign

(DANGER - ELECTROCUTION)

1шт.

27

T190393

Label

(SUB FOR T157809)(IMPORTANT - B REAK WINDOW FOR SECONDARY EXIT)

1шт.

28

4299059

Label

(SUB FOR T138886)(HYDRAULIC LOCKOUT)

1шт.

29

T160490

Label

ENGLISH (LIFT CAPACITY)

1шт.

T162750

Label

SPANISH (LIFT CAPACITY)

1шт.

T162770

Label

FRENCH (LIFT CAPACITY)

1шт.

T190565

Label

(SUB FOR T166489)(LONG FRONT LIFT CAPACITY)

1шт.

30

T146664

Safety Sign

(CAUTION WINDOW LOCK - INSIDE CAB)

1шт.

31

T159846

Label

(K) ENGLISH (PERIODIC MAINTENANCE)

1шт.

T163621

Label

SPANISH (PERIODIC MAINTENANCE)

1шт.

T163606

Label

FRENCH (PERIODIC MAINTENANCE)

1шт.

32

T149983

Label

(K) (IMPORTANT - OIL LEVEL) ( INSIDE RIGHT PUMP COMPARTMENT)

1шт.

33

T146102

Label

(K) (SUB FOR T146103)(BYPASS START)

1шт.

34

T152657

Safety Sign

(K) (IMPORTANT - RADIATOR)

1шт.

35

T147009

Label

(K) (RESERVOIR COVER)

1шт.

36

H21259

Mat

(K)

2шт.

37

T153672

Label

(LONG FRONT OPERATION)

1шт.

38

T153673

Label

(LONG FRONT PERIOD MAINTENANCE)

1шт.

41

T161729

Decals

(WINDOW GUARD INSTALLATION)

1шт.

42

T146671

Safety Sign

(K) (NOT ILLUSTRATED) (CAUTI ON) (LOCATED ON RADIATOR CAP)

1шт.

90

Kit

INCLUDES ALL (K) PARTS (REPAINT) ( AT181784 NLA) (SUB COMPONENTS)

1шт.
