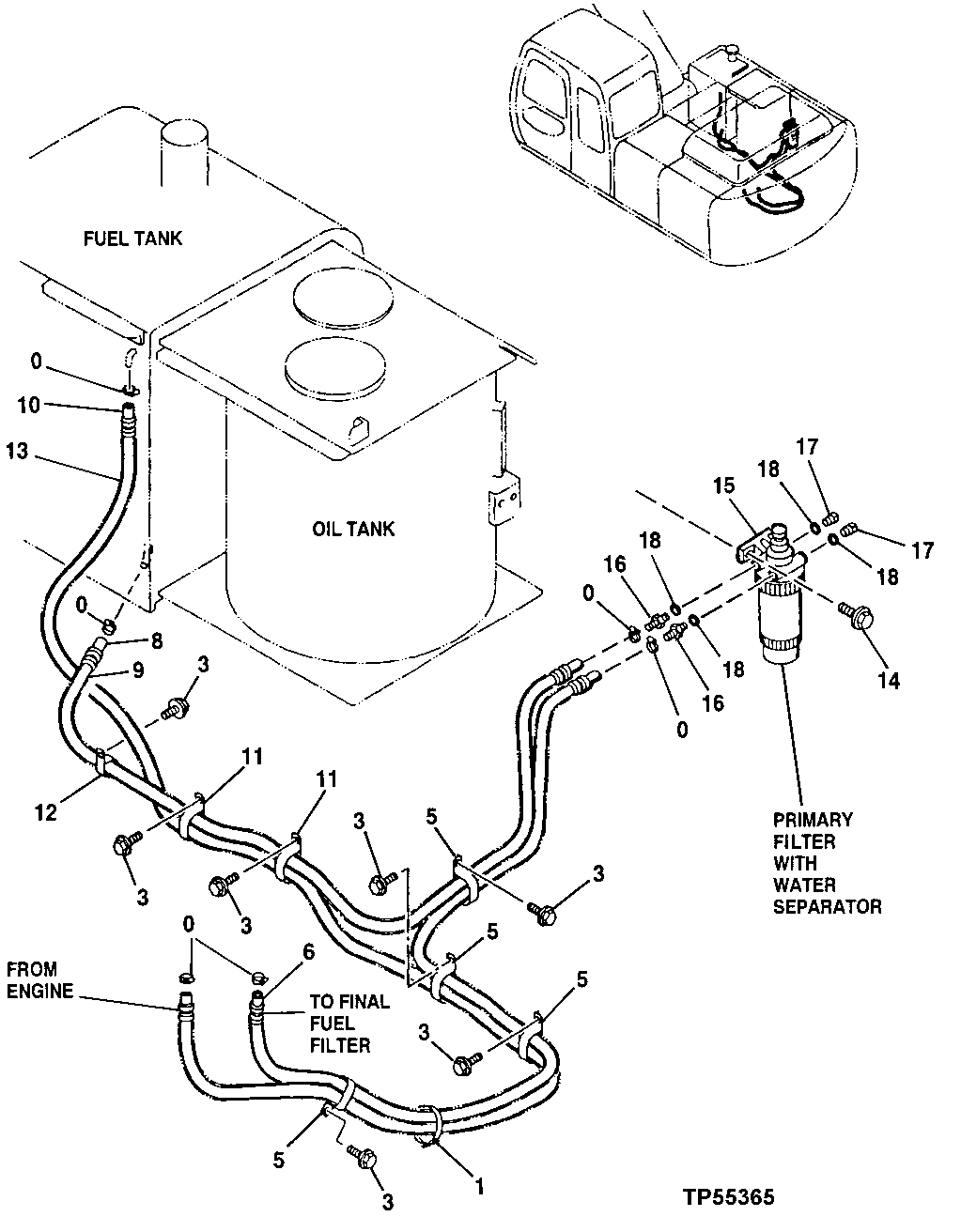

Запчасти John Deere 00LC 138 - Fuel Hoses and Fittings 0560 EXTERNAL FUEL SUPPLY SYSTEMS

0

TY22464

Clamp

SUB FOR AR21836

6шт.

1

H77698

Tie Band

1шт.

3

12M7066

Lock Washer

10 mm

7шт.

19M7938

Cap Screw

M10 X 20

7шт.

5

4190266

Clip

SUB FOR TH108793

4шт.

6

4295998

Hose

SUB FOR AT215491 OR 4201837

1шт.

7

Bulk Hose

MF TY26190, CTL 2150 mm, S UB FOR AT215496 OR 4260248

1шт.

8

Hydraulic Hose

MF TY22561, CTL 2250 mm, AT20 4838 NOT AVAILABLE FOR SERVICE

1шт.

9

4305108

Tube

SUB FOR AT215509, 4332697 OR 4362473

1шт.

10

Bulk Hose

SUB FOR AT215553, MF TY255 52 CTL 3100 mm, 4374283 NLA

1шт.

11

T32854

Clamp

2шт.

12

T28949

Clamp

SUB FOR TH108460 OR 4190273

1шт.

13

TY26190

Conduit

SUB FOR AT215093 AND 4307857

1шт.

14

19M7550

Cap Screw

M10 X 35

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

15

Filter

Primary Fuel Filter With Water Separator

1шт.

16

R65684

Fitting

2шт.

17

R82719

Fitting Plug

2шт.

18

51M7040

O-Ring

9.300 X 2.200 mm

4шт.
