Запчасти John Deere 00LC 137 - Fuel Tank 0560 EXTERNAL FUEL SUPPLY SYSTEMS

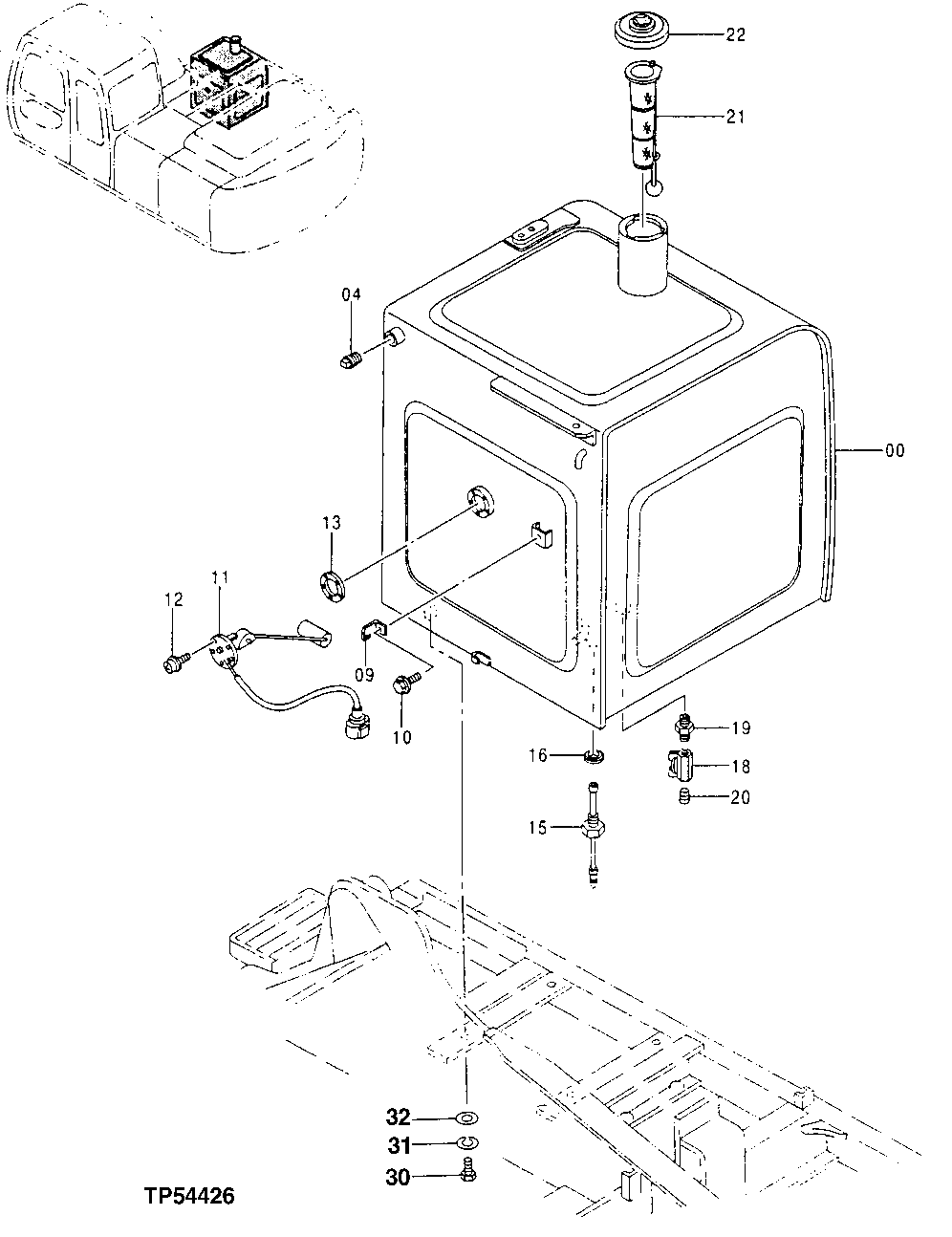

Схема запчастей John Deere 00LC - 137 - Fuel Tank 0560 EXTERNAL FUEL SUPPLY SYSTEMS

Артикул

Название

Примечание

Количество

0

5004403J

Fuel Tank

SUB FOR AT214320 OR 5004403

1шт.

4

94-2013

Fitting Plug

SUB FOR TH100648

1шт.

9

4257159

Bracket

SUB FOR AT154243

1шт.

10

19M8324

Cap Screw

M10 X 16

1шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

1шт.

11

4660782

Float

SUB FOR AT154239 OR 4257128

1шт.

12

21M7278

Screw

M5 X 10

5шт.

13

T211051

Gasket

SUB FOR U42323

1шт.

15

4259788

Switch

SUB FOR AT154272

1шт.

16

4157648

Sealing Washer

SUB FOR TH108583

1шт.

18

4374265

Drain Valve

SUB FOR AT177419

1шт.

19

T116057

Fitting

1шт.

20

942011

Fitting Plug

SUB FOR 94-2011 AND TH100434

1шт.

21

4353560

Strainer

SUB FOR AT213970

1шт.

22

4361638

Cap

KEY LOCKABLE, ORDER KEY SEPARATELY

1шт.

AT194969

Key

SUB FOR AT147803, H800, NOT ILLUSTRATED

1шт.

AT323462

Filler Cap

SUB FOR AT175989 OR 4361638, CAN BE LO CKED WITH PADLOCK, PADLOCK NOT INCLUDED

1шт.

30

4288155

Bolt

M16 X 38 SUB FOR AT154799

4шт.

31

12H294

Lock Washer

5/8"

4шт.

32

24M7338

Washer

17 X 30 X 3 mm

4шт.

Выбрано товаров: 20
