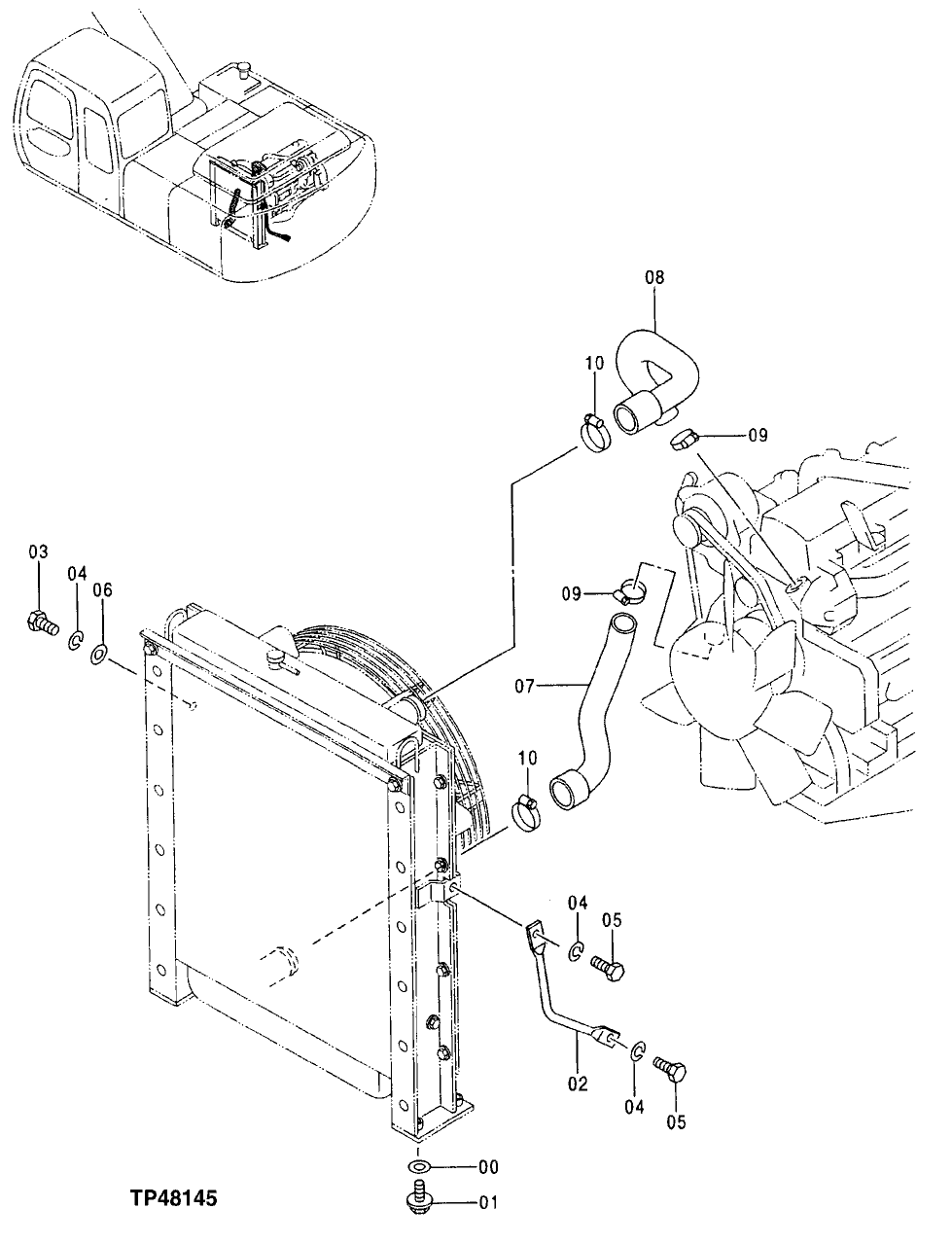

Запчасти John Deere 00LC 127 - RADIATOR SUPPORT 0510 ENGINE COOLING SYSTEMS

0

24M7345

Washer

13.500 X 24 X 2.500 mm

4шт.

1

19M7493

Cap Screw

M12 X 40

4шт.

12H301

Lock Washer

1/2"

4шт.

2

4372647

Stop

(SUB FOR AT215097)

1шт.

3

19M7488

Cap Screw

M16 X 40

1шт.

4

12H294

Lock Washer

5/8"

3шт.

5

19M8035

Cap Screw

M16 X 35

2шт.

6

24M7241

Washer

17 X 34 X 4 mm (SUB FO R TH101734 OR 4087197)

1шт.

7

AT215085

Radiator Hose

1шт.

8

AT215087

Radiator Hose

1шт.

9

TY22472

Clamp

(SUB FOR AT145651)

2шт.

10

TY22472

Clamp

(SUB FOR AT145651)

2шт.
