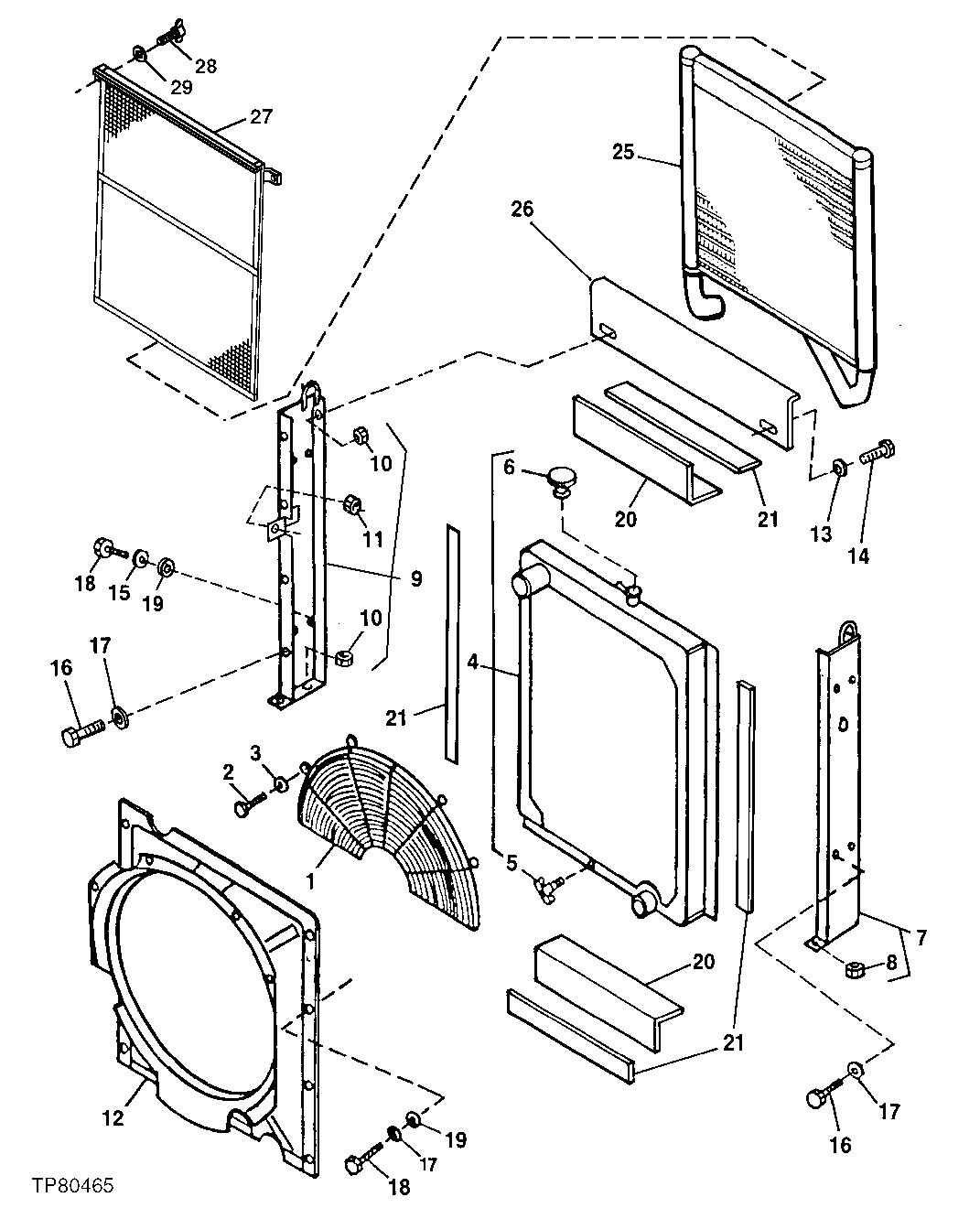

Запчасти John Deere 00LC 126 - RADIATOR 0510 ENGINE COOLING SYSTEMS

1

AT177483

Guard

1шт.

2

19M7868

Screw

M8 X 30

4шт.

3

24M7298

Washer

8.400 X 25 X 2 mm

4шт.

4

AT174029

Radiator

1шт.

5

AT13740

Drain Valve

1шт.

6

AT173610

Filler Cap

1шт.

7

Channel

AT179360 NLA

1шт.

8

14M7275

Nut

M12

2шт.

9

AT174035

Support

1шт.

10

14M7296

Flange Nut

M10

2шт.

11

14M7276

Nut

M16

1шт.

12

AT177482

Shroud

1шт.

13

24M7296

Washer

10.500 X 30 X 2.500 mm

2шт.

14

19M7784

Screw

M10 X 20

2шт.

15

24M7296

Washer

10.500 X 30 X 2.500 mm

8шт.

16

19M7783

Screw

M10 X 16

8шт.

17

24M7296

Washer

10.500 X 30 X 2.500 mm

8шт.

18

19M7785

Screw

M10 X 25

8шт.

19

24H1330

Washer

15/32" X 1-3/8" X 7/64"

8шт.

20

T159001

Isolator

729.600 mm (28.724")

2шт.

21

AT66778

Weatherstrip

1000 mm (39.370")

6шт.

25

4378370

Oil Cooler

SUB FOR AT215105

1шт.

26

Angle

NOT AVAILABLE FOR SERVICE

1шт.

27

4371007

Screen

SUB FOR AT190189

1шт.

28

21M1689

Wing Screw

M6 X 12

2шт.

29

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.
