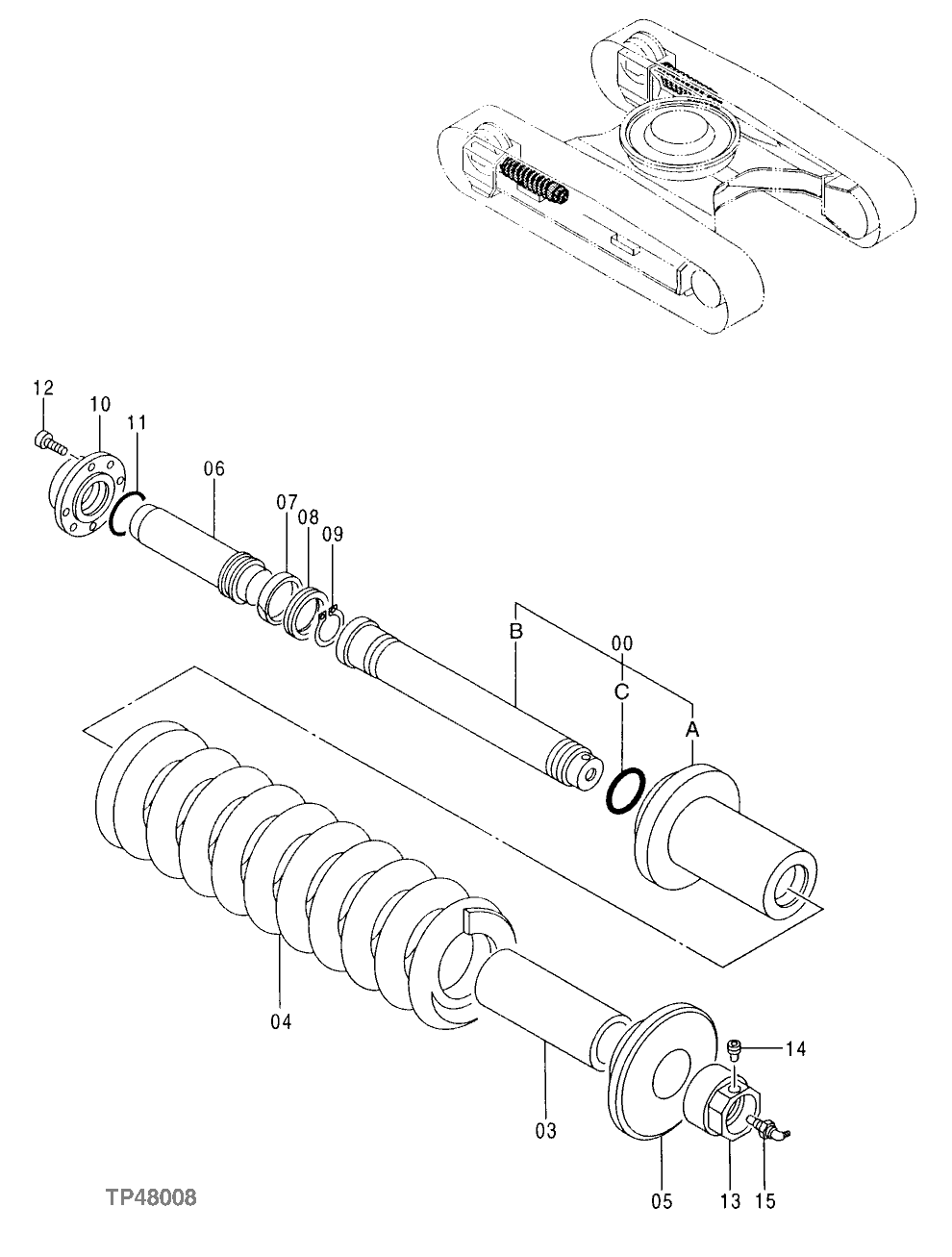

Запчасти John Deere 00LC 3 - ADJUSTER (SERIAL NO. -500002) ( - 500002) 0130 TRACK SYSTEMS

0

9144659

Cylinder

(SUB FOR AT214391)

1шт.

0A

3073799

Cylinder

(SUB FOR AT213786)

1шт.

0B

3076992

Hydraulic Cylinder Rod

(SUB FOR AT215488)

1шт.

0C

4360345

O-Ring

(SUB FOR AT213998)

1шт.

3

4371301

Sleeve

(SUB FOR AT215536)

1шт.

4

3076210

Spring

(SUB FOR AT215486)

1шт.

5

3073801

Washer

(SUB FOR AT213788)

1шт.

6

3076993

Hydraulic Cylinder Rod

(SUB FOR AT215489)

1шт.

7

TH109743

Wear Ring

1шт.

8

4177837

Packing

1шт.

9

40M7066

Snap Ring

1шт.

10

3073802

Flange

(SUB FOR AT213789)

1шт.

11

4113162

O-Ring

(SUB FOR AT213797)

1шт.

12

M341022

Screw

(SUB FOR TH105695)

4шт.

13

4357536

Nut

(SUB FOR AT213978)

1шт.

14

4248106

Fitting Plug

(SUB FOR AT154185)

1шт.

15

4255055

Valve

(SUB FOR AT154223)

1шт.
