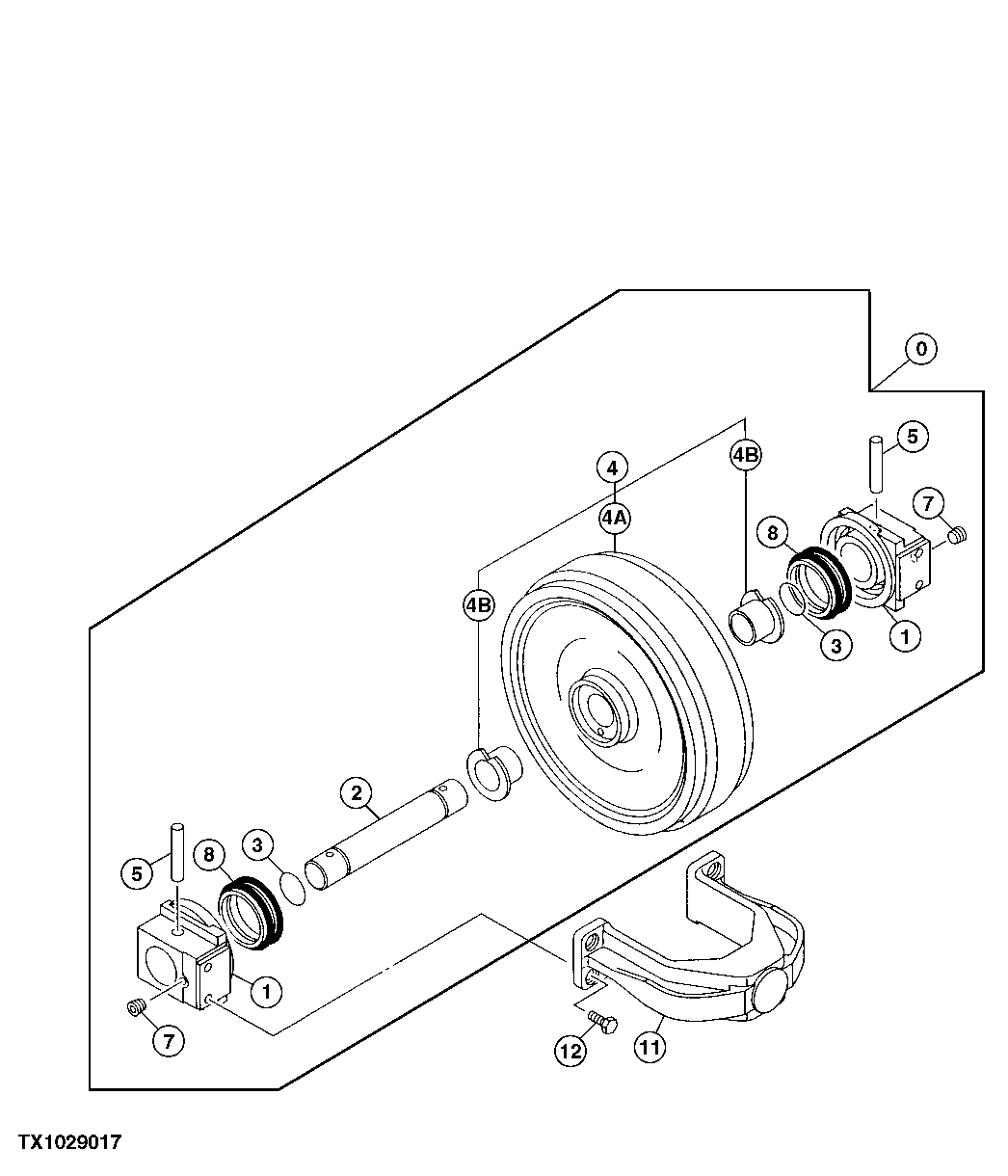

Запчасти John Deere 00LC 2 - FRONT IDLER 0130 TRACK SYSTEMS

0

Track Idler

9145269 NO LONGER AVAILABLE SU B AT180014 ) (SUB FOR AT214392

2шт.

AT180014

Track Idler

2шт.

1

1021805

Bearing

SUB FOR AT213727

2шт.

AT180016

Support

2шт.

2

3070162

Axle

SUB FOR AT213765

1шт.

AT180022

Shaft

1шт.

3

CH14671

Packing

2шт.

O-Ring

NLA

2шт.

4

9134157

Idler Sprocket

SUB FOR AT214384

1шт.

AT180020

Roller Shell

1шт.

4A

Idler

1шт.

4B

3069749

Bushing

SUB FOR AT213763

2шт.

AT180021

Bushing

2шт.

5

4126209

Pin

SUB FOR TH100432

2шт.

AT180015

Pin Fastener

2шт.

7

942011

Fitting Plug

SUB FOR 94-2011 AND TH100434

2шт.

AT180007

Fitting Plug

2шт.

8

Seal

NLA, SUB FOR TH100433

2шт.

Seal

NLA

2шт.

11

Yoke

SUB AT180023, SUB FOR AT15462 8, 1014036 NO LONGER AVAILABLE

2шт.

AT180023

Yoke

2шт.

12

19M8035

Cap Screw

M16 X 35

8шт.
