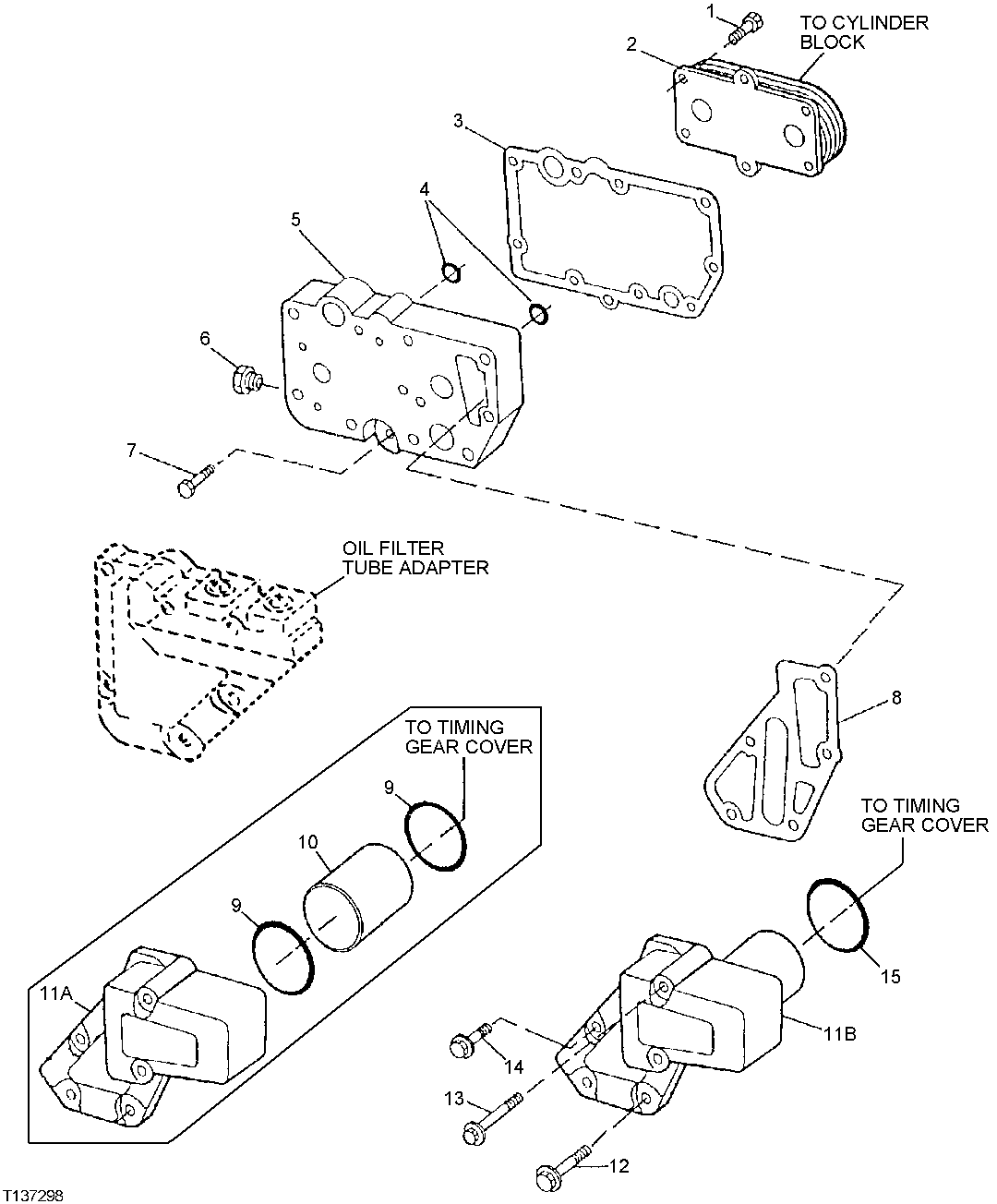

Запчасти John Deere 00LC 107 - ENGINE OIL COOLER ( - 830633) 0419B Engine Oil Cooler T06068TT051 T06068TT051

1

RE67231

Screw

(A) M6 X 16

6шт.

2

RE560752

Oil Cooler

(B) SUB FOR RE56690

1шт.

RE522821

Oil Cooler

RE522821; INCLUDES: RE56690(1), RE 67231 (6), R123471 (1), T122075 (2)

1шт.

3

R123501

Gasket

1шт.

4

T122075

O-Ring

2шт.

5

R123471

Housing

1шт.

6

RE46685

Plug

1шт.

7

RE46686

Plug

M12X1.5

1шт.

RE56323

Fitting Plug

SAE

1шт.

8

R501428

Gasket

SUB FOR R123502

1шт.

9

R61105

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139") USE WITH R135177

2шт.

10

R115252

Bushing

USE WITH R135177

1шт.

11A

R135177

Adapter Fitting

SUB R502811

1шт.

11B

R502811

Adapter Fitting

1шт.

12

19M7970

Screw

M8 X 100

2шт.

13

RE67238

Screw

(C) M8 X 20

1шт.

14

19M7802

Screw

M8 X 65

2шт.

15

R504734

O-Ring

USE WITH R502811

1шт.
