Запчасти John Deere 00LC 91 - Engine Oil Pan and Oil Level Sensor ( - 830633) 0407B Engine Oiling System T06068TT051 T06068TT051

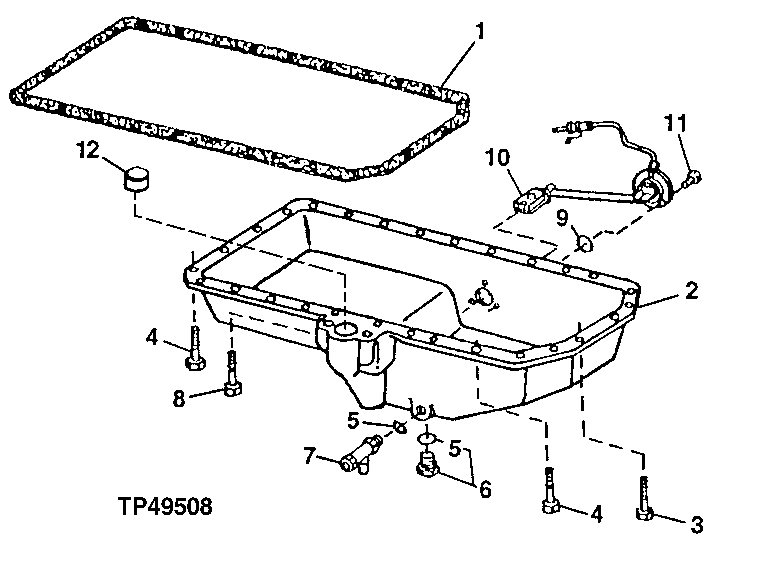

Схема запчастей John Deere 00LC - 91 - Engine Oil Pan and Oil Level Sensor ( - 830633) 0407B Engine Oiling System T06068TT051 T06068TT051

Артикул

Название

Примечание

Количество

1

R123354

Gasket

1шт.

2

R123338

Oil Pan

NLA; ORDER R532060

1шт.

R532060

Oil Pan

SUB FOR R123338

1шт.

3

19M7868

Screw

M8 X 30

6шт.

4

19M7867

Screw

M8 X 25

26шт.

5

51M7043

O-Ring

15.300 X 2.200 mm

2шт.

6

RE46685

Fitting Plug

1шт.

7

RE507952

Drain Valve

SUB FOR RE59579, THIS APPLICATION

1шт.

8

19M7799

Screw

M8 X 45

4шт.

9

R47154

O-Ring

25.070 X 2.616 mm (0.987" X 0.103")

1шт.

10

RE16223

Sensor

OIL LEVEL

1шт.

11

19M8425

Cap Screw

M6 X 16

3шт.

12

T35390

Plug

USE WITHOUT ENGINE OIL FILL TUBE

ARшт.

Выбрано товаров: 13
