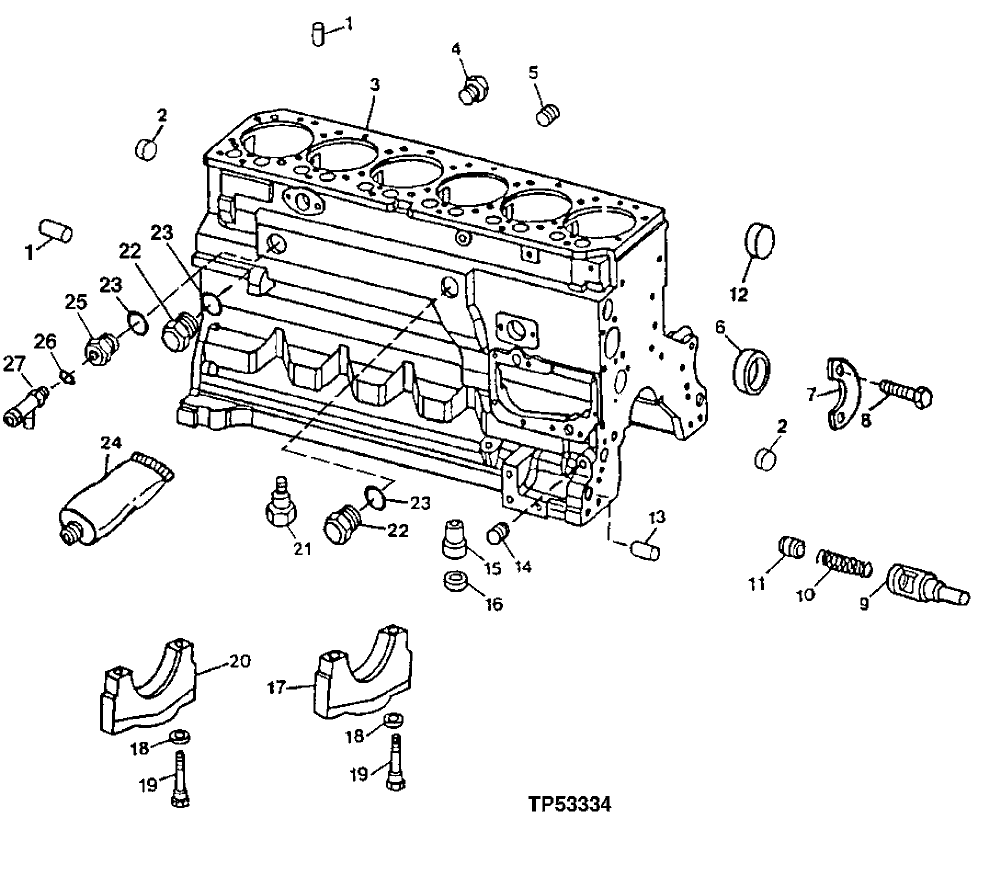

Запчасти John Deere 00LC 81 - CYLINDER BLOCK ( - 830633) 0404B Cylinder Block T06068TT051 T06068TT051

1

R48685

Dowel Pin

4шт.

2

T18891

Plug

2шт.

3

Cylinder Block

(MARKED R119565 ) (ORDER RE516152)

1шт.

4

R55233

Pipe Plug

1шт.

5

R104592

Pipe Plug

7шт.

6

R119874

Bushing

CAMSHAFT

1шт.

7

R132518

Plate

1шт.

8

19M8999

Screw

M8 X 25

2шт.

9

R121043

Valve

ENGINE OIL BY-PASS

1шт.

10

R111137

Spring

1шт.

11

R26493

Bushing

OIL PRESSURE REGULATING

1шт.

12

R116466

Plug

1шт.

13

R26650

Dowel Pin

2шт.

14

15H623

Pipe Plug

3/8"

1шт.

15

R115390

Bushing

1шт.

16

R75892

O-Ring

1шт.

17

R114241

Bearing Cap

MAIN BEARING

6шт.

18

T20168

Washer

14шт.

19

T23474

Cap Screw

14шт.

20

R132186

Bearing Cap

MAIN THRUST BEARING

1шт.

21

R131182

Orifice

6шт.

22

R39741

Drain Plug

2шт.

23

U13639

O-Ring

37.465 X 2.997 mm (1.475" X 0.118")

2шт.

24

PM38655

Sealant

(SUB FOR T43514)(PLASTIC GASKET)

1шт.

25

R123616

Plug

ARшт.

26

51M7043

O-Ring

15.300 X 2.200 mm

ARшт.

27

RE507952

Drain Valve

(SUB FOR RE59579, THIS APPLICATION)HEATER

ARшт.
