Запчасти John Deere 00LC 77 - REPLACEMENT TIMING GEAR COVER ( - 830633) 0402B Crankshaft And Valve Actuating Means T06068TT051 T06068TT051

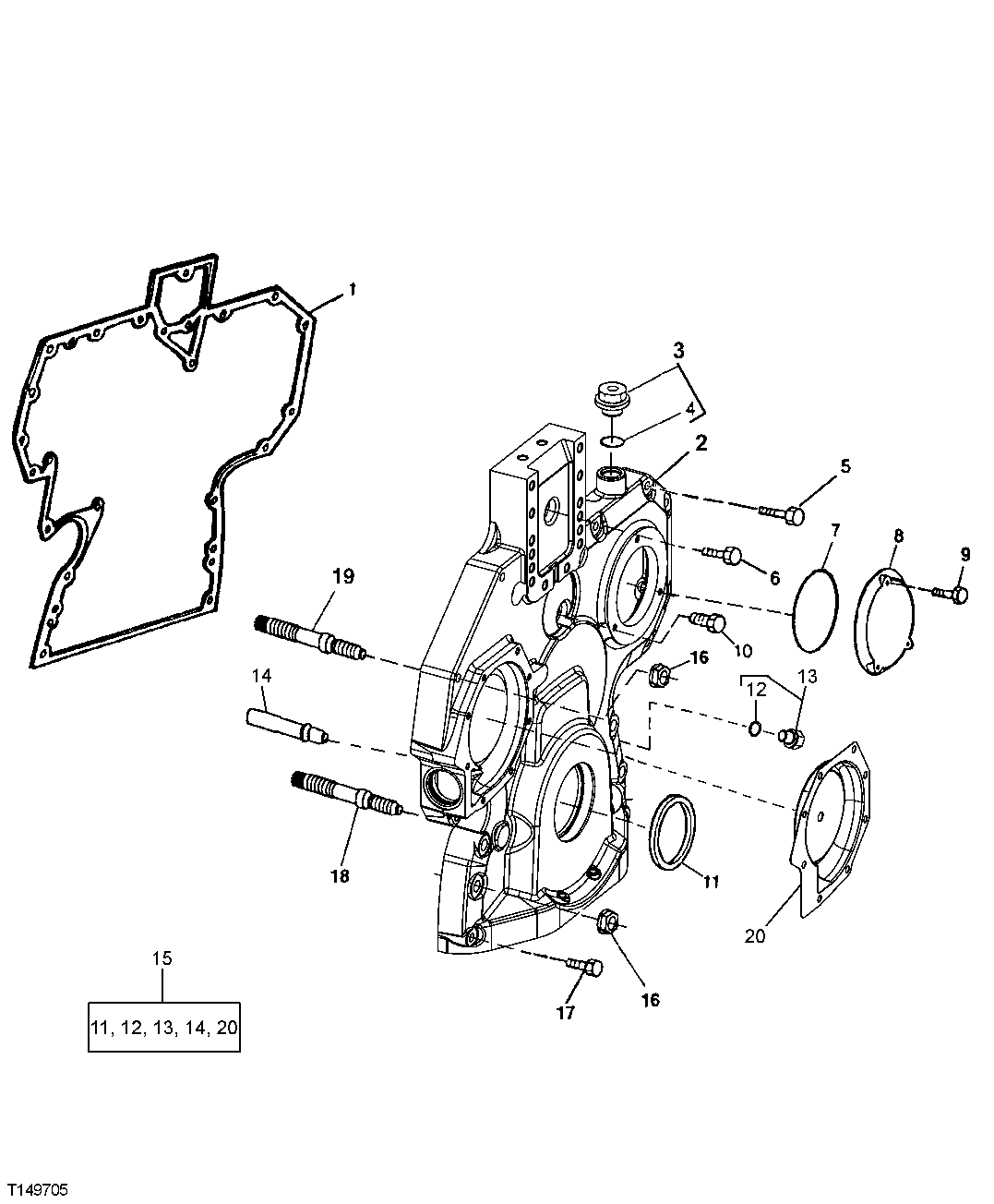

Схема запчастей John Deere 00LC - 77 - REPLACEMENT TIMING GEAR COVER ( - 830633) 0402B Crankshaft And Valve Actuating Means T06068TT051 T06068TT051

Артикул

Название

Примечание

Количество

1

R136515

Gasket

(WITH AUXILIARY DRIVE)

1шт.

R136516

Gasket

(WITHOUT AUXILIARY DRIVE)

1шт.

2

R504724

Cover

(WITH AUXILIARY DRIVE)

1шт.

R504725

Cover

(WITHOUT AUXILIARY DRIVE)

1шт.

3

RE501938

Plug

(WITHOUT TACHOMETER SENSOR)

1шт.

4

51M7044

O-Ring

17.300 X 2.200 mm

1шт.

5

19M8317

Screw

M8 X 40

6шт.

19M7867

Screw

M8 X 25

1шт.

RE67239

Screw

1шт.

6

19M8291

Screw

M8 X 35

1шт.

7

R121424

O-Ring

1шт.

8

R121411

Cover

1шт.

9

19M7775

Screw

M6 X 16

3шт.

10

19M7801

Screw

M8 X 60

1шт.

11

RE516340

Seal

(MARKED RE52346 OR RE50 5515 ) (SUB FOR RE59810)

1шт.

12

51M7044

O-Ring

17.300 X 2.200 mm

1шт.

13

RE501938

Plug

1шт.

14

RE505501

Bleed Valve

1шт.

15

RE515978

Cover Kit

1шт.

16

14M7296

Flange Nut

M10

6шт.

17

19M7979

Screw

M8 X 55

2шт.

18

R123584

Stud

4шт.

19

R134518

Stud

2шт.

20

RE508566

Insert

(WATER PUMP INSERT REPAIR)

1шт.

Выбрано товаров: 24
