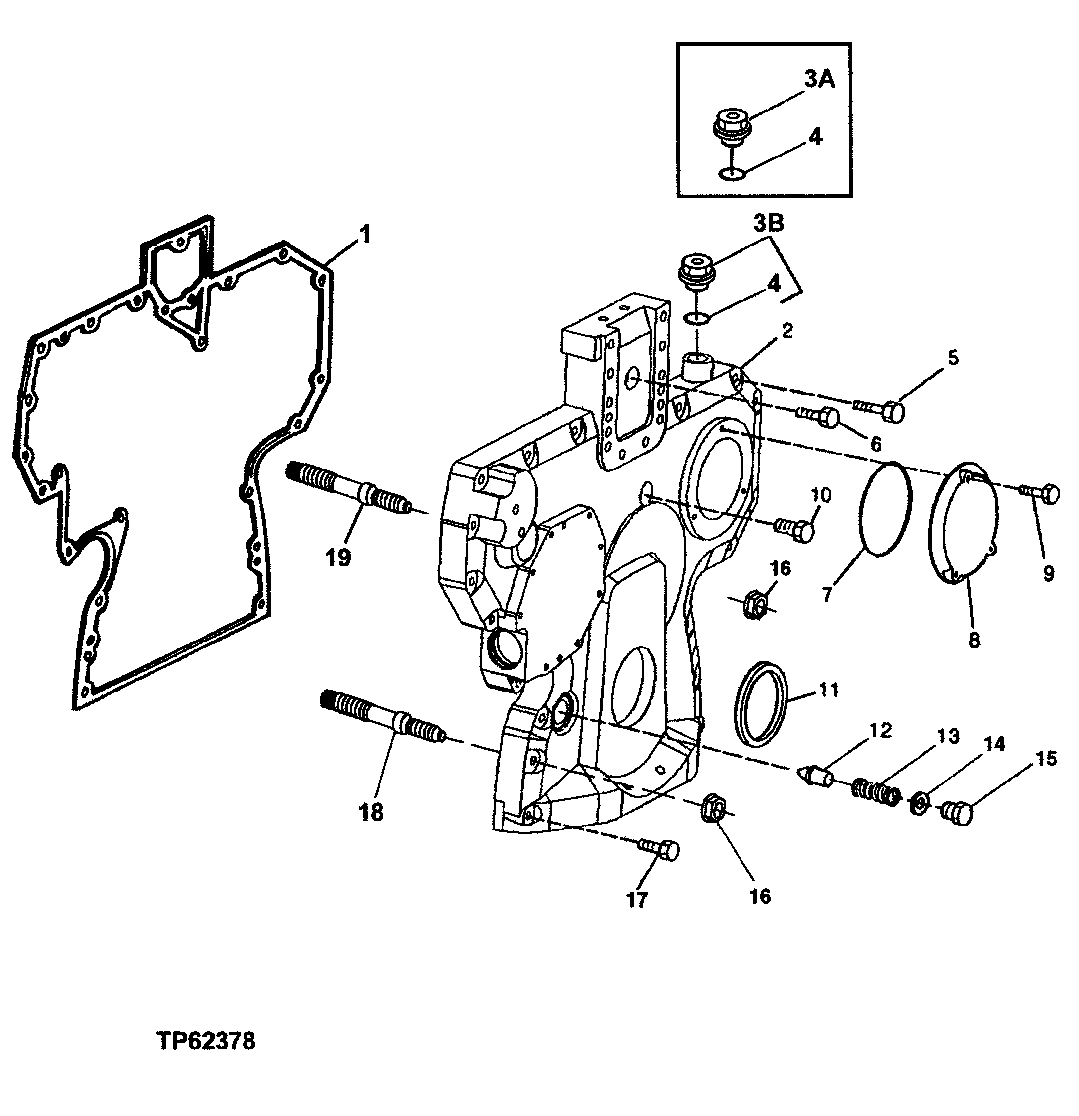

Запчасти John Deere 00LC 76 - TIMING GEAR COVER ( - 830633) 0402B Crankshaft And Valve Actuating Means T06068TT051 T06068TT051

1

R136516

Gasket

(SUB FOR R123421 OR R13453 4)(WITHOUT AUXILIARY DRIVE)

1шт.

R136515

Gasket

(WITH AUXILIARY DRIVE)

1шт.

2

R505462

Cover

(SUB FOR R121633 AND R134531 ) (SUB R5047 25 AND RE515978)(WITHOUT AUXILIARY DRIVE) (ALSO ORDER R134534, R134518, 14M7296-2PCS )

1шт.

R505461

Cover

(SUB FOR R121625, R134530 AND R501297 ) (SUB R504724 AND RE515978)(WITH AUXILIARY DRIVE)

1шт.

3A

R101085

Drain Plug

(SUB RE501938, THIS APPLICATI ON)(WITHOUT TACHOMETER SENSOR)

1шт.

3B

RE501938

Plug

(WITHOUT TACHOMETER SENSOR)

1шт.

4

51M7044

O-Ring

17.300 X 2.200 mm

1шт.

5

19M8317

Screw

M8 X 40

6шт.

19M7801

Screw

M8 X 60

1шт.

19M7867

Screw

M8 X 25

1шт.

RE67239

Screw

1шт.

RE67239

Screw

(SUB FOR RE67240)

1шт.

6

19M8291

Screw

M8 X 35

1шт.

7

R121424

O-Ring

1шт.

8

R121411

Cover

1шт.

9

19M7775

Screw

M6 X 16

3шт.

10

19M7801

Screw

M8 X 60

1шт.

11

RE516340

Seal

(MARKED RE52346 OR RE505515 ) ( SUB FOR RE59810)(FRONT OIL SEAL)

1шт.

12

R83169

Valve

1шт.

13

T27658

Spring

1шт.

14

A4827R

Washer

1шт.

15

R91692

Fitting Plug

OIL PRESSURE REGULATING

1шт.

16

14M7296

Flange Nut

M10

4шт.

17

19M7979

Screw

M8 X 55

2шт.

18

R123584

Stud

LOWER

4шт.

19

R134518

Stud

2шт.
