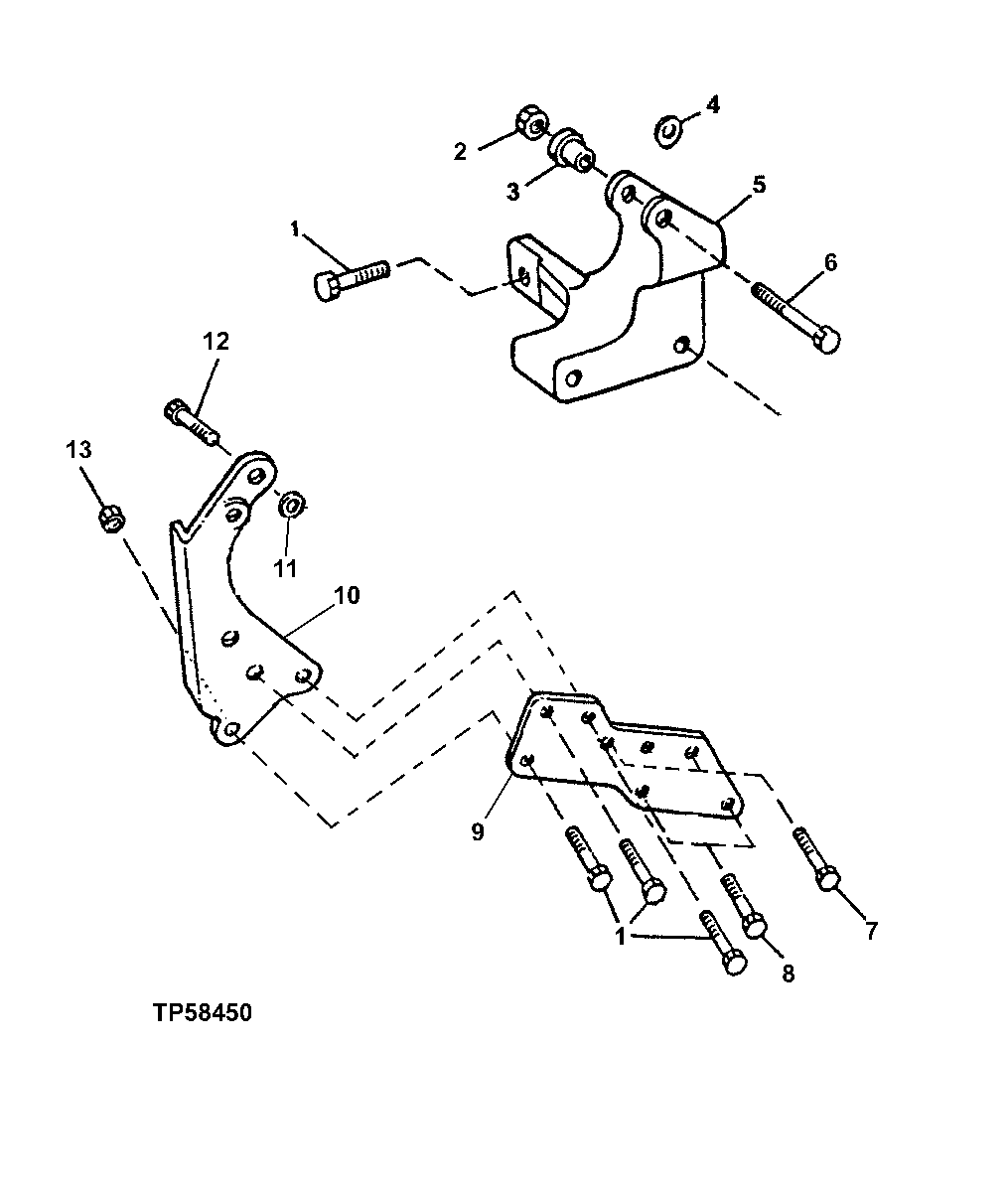

Запчасти John Deere 00LC 63 - ALTERNATOR MOUNTING BRACKETS (071872 - ) 0423A ALTERNATOR AND GENERATOR MOUNTING 0423 PE6068TT051 PE6068TT051

1

19M7786

Screw

M10 X 30

5шт.

2

14M7296

Flange Nut

M10

1шт.

3

R100377

Bushing

1шт.

4

R64525

Thrust Washer

10.310 X 17.480 X 0.910 mm (13/32" X 11/16" X 0.036")

1шт.

5

R132166

Bracket

1шт.

6

19M7812

Screw

M10 X 100

1шт.

7

19M7785

Screw

M10 X 25

2шт.

8

19M7801

Screw

M8 X 60

2шт.

9

R132913

Support

1шт.

10

R132167

Strap

1шт.

11

R48808

Washer

8.128 X 15.748 X 3.937 mm (0.320" X 0.620" X 0.155")

1шт.

12

19M8008

Cap Screw

M8 X 35

1шт.

13

14M7296

Flange Nut

M10

3шт.
