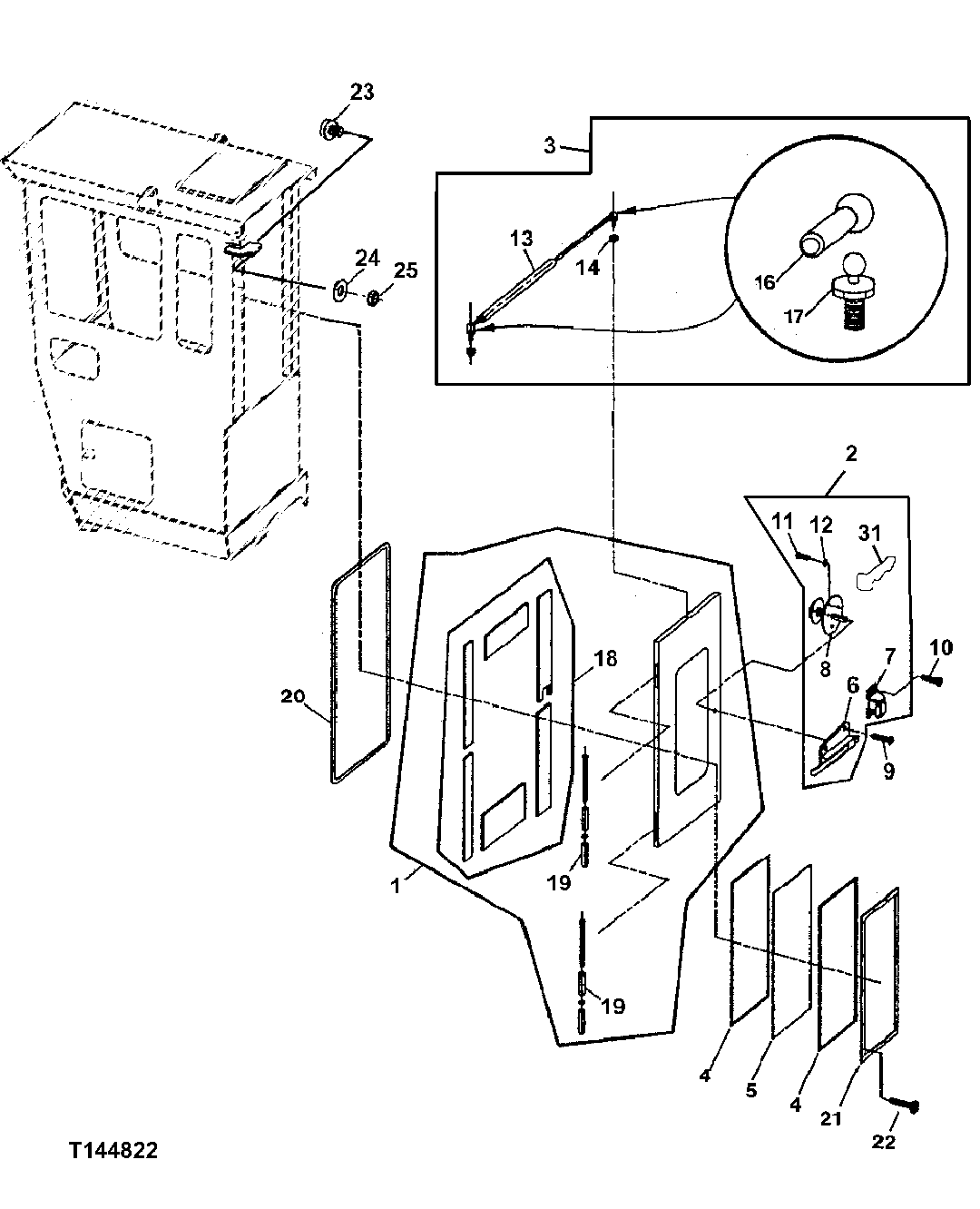

Запчасти John Deere 200LC, 330LC, 370 58 - Rear Entry Cab Door (Lexan Window) 1810 Operator Enclosure

1

FFSB103110

Door

1шт.

2

FFSB102218

Lock

1шт.

3

Gas Operated Cylinder

( FFSB102219 NO LONER AVAI LABLE) (FURNISH COMPONENTS)

1шт.

4

Seal

( FFSB103111 NO LONGER AVAILABLE FOR SERVICE) (FURNISH FFSB103444 B ULK MATERIAL CUT TO 7500 MM LENGTH )

2шт.

5

FFSB103121

Windowpane

1шт.

6

FFSB102221

Latch

1шт.

7

FFSB102222

Striker

1шт.

8

FFSB102231

Latch

1шт.

9

FFSB102643

Screw

4шт.

10

21H1145

Screw

1/4" X 1-1/4" ( FFSB102 644 NO LONGER AVAILABLE)

4шт.

11

21H1167

Screw

0.190" X 1/4"

3шт.

12

12H316

Lock Washer

0.216"

3шт.

13

FFSB102232

Cylinder

1шт.

14

N209131

Lock Nut

7.925 mm

2шт.

16

FFSB102234

Ball Joint Socket

2шт.

17

FFSB102235

Ball Stud

2шт.

18

Foam Pad

( FFSB102263 NOT AVAILABLE FOR SERVICE)

1шт.

19

FFSB102236

Hinge

2шт.

20

Weatherstrip

( FFSB102275 NO LONGER AVAILABLE FOR SERVICE) (FURNISH FFSB107987 B ULK MATERIAL CUT TO 5842 MM LENGTH )

1шт.

21

FFSB103112

Frame

1шт.

22

FFSB102626

Cap Screw

14шт.

23

FFSB103054

Bumper

1шт.

24

24H1136

Washer

11/32" X 11/16" X 0.065"

1шт.

25

N209131

Lock Nut

7.925 mm

1шт.

30

Cab

( FFSB103420 NO LONGER AVAILABLE) (NOT ILLUSTRATED) (CONVENIENCE ASSEMBLY) (48 INCH REAR ENTRY CAB WITH LEXAN WINDOWS) (CONTAINS ALL ITEMS ON THIS PAGE - ADDI TIONAL COMPONENTS LISTED ON SEPARATE PAG ES)

1шт.

31

FFSB105925

Key

1шт.
