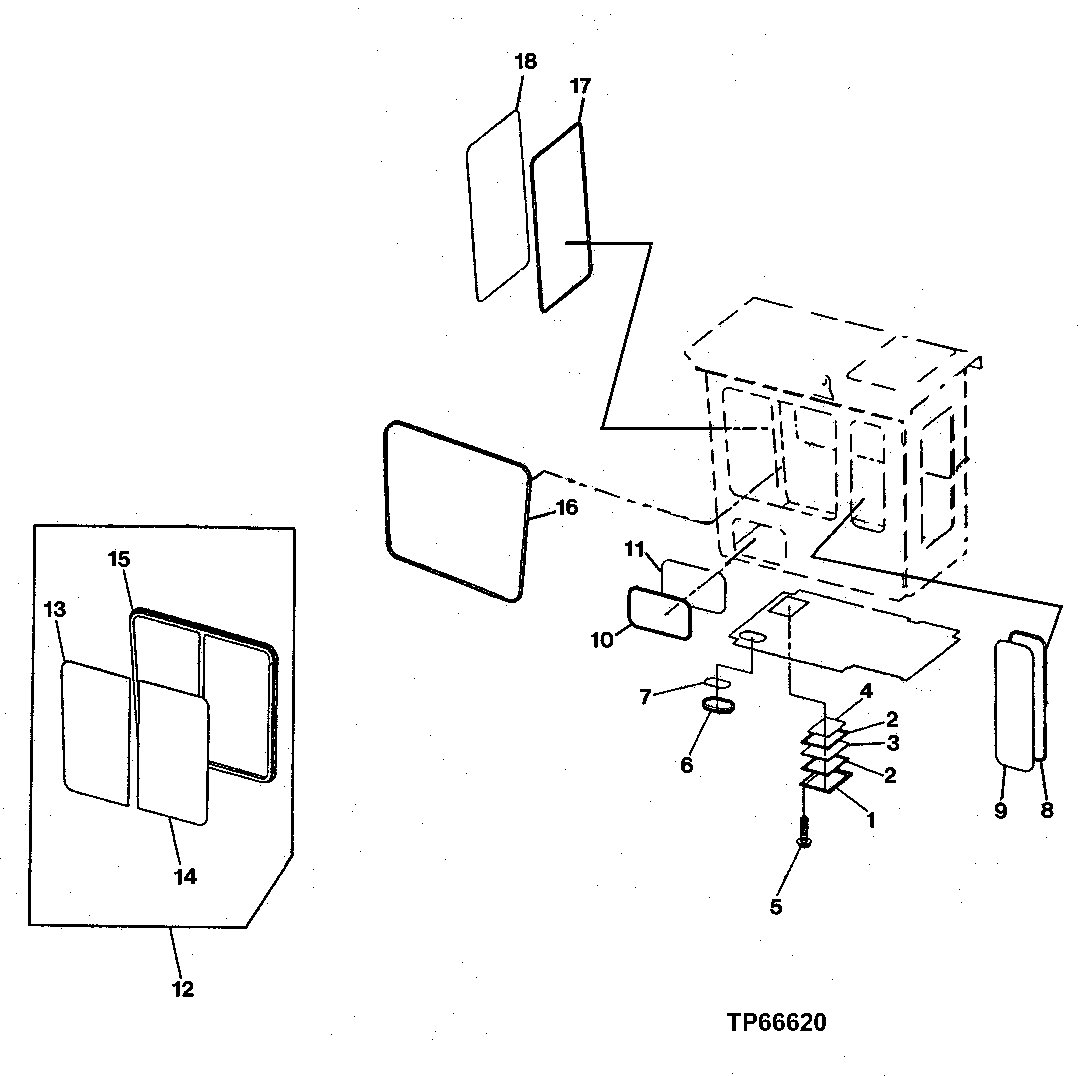

Запчасти John Deere 200LC, 330LC, 370 53 - Rear Entry Cab Windows (Glass Windows) 1810 Operator Enclosure

1

FFSB102209

Frame

1шт.

2

Seal

( FFSB102075 NOT AVAILABLE FOR SERVICE) (FURNISH FFSB103444 BUL K MATERIAL CUT TO 2600 MM LENGTH )

2шт.

3

FFSB102210

Window

(LEXAN)

1шт.

4

FFSB102211

Windowpane

1шт.

5

FFSB102626

Cap Screw

6шт.

6

FFSB102272

Weatherstrip

1шт.

7

FFSB102212

Windowpane

1шт.

8

FFSB102273

Weatherstrip

1шт.

9

FFSB102213

Windowpane

1шт.

10

FFSB102273

Weatherstrip

1шт.

11

FFSB102214

Windowpane

1шт.

12

FFSB102259

Window

1шт.

13

FFSB102215

Windowpane

1шт.

14

FFSB102230

Windowpane

1шт.

15

Frame

( FFSB102636 NOT AVAILABLE FOR SERVICE)

1шт.

16

FFSB102657

Isolator

1шт.

17

FFSB102658

Isolator

1шт.

18

FFSB102216

Windowpane

1шт.

50

Cab

( FFSB103419 NO LONGER AVAILABLE) (NOT ILLUSTRATED) (CONVENIENCE ASSEMBLY) (72 INCH REAR ENTRY CAB WITH GLASS WINDOWS) (CONTAINS ALL ITEMS ON THIS PAGE - ADDI TIONAL COMPONENTS LISTED ON SEPARATE PAG ES)

1шт.
