Запчасти John Deere 200LC, 330LC, 370 51 - LIFT ADAPTER FRAME 1740 Frame Installation

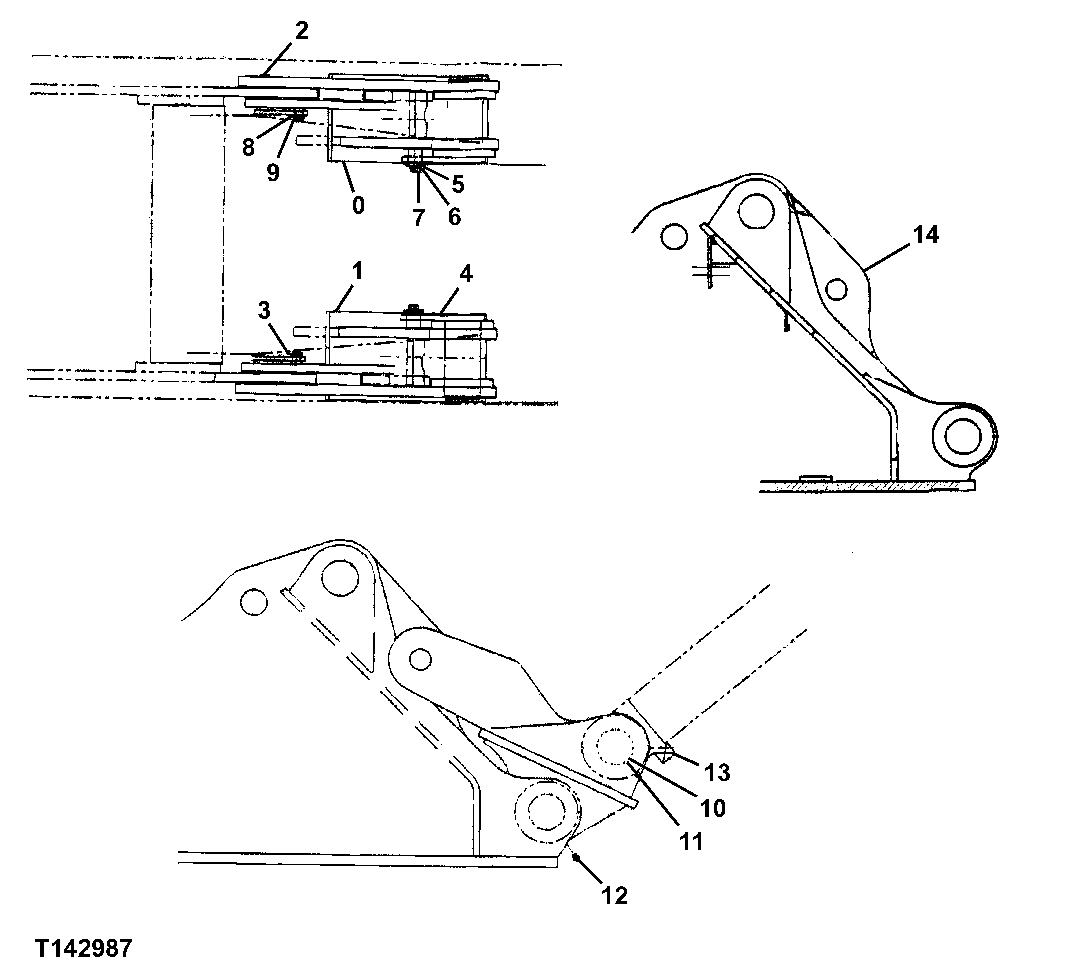

Схема запчастей John Deere 200LC, 330LC, 370 - 51 - LIFT ADAPTER FRAME 1740 Frame Installation

Артикул

Название

Примечание

Количество

0

FFSB103464

Bracket

1шт.

1

FFSB103465

Frame

1шт.

2

FFSB108070

Pin Fastener

(SUB FOR FFSB103466)

2шт.

3

FFSB103467

Spacer

2шт.

4

8069305

Pin Fastener

(SUB FOR AT250216)

2шт.

5

4040826

Bushing

21.200 X 60 X 10 mm (SUB FOR AT131671)

2шт.

6

J257220

Spring Washer

(SUB FOR AT213605)

2шт.

7

19M7950

Cap Screw

M20 X 45 (SUB FOR J922045)

2шт.

8

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

9

19M7403

Cap Screw

M12 X 35

2шт.

10

4373798

Wear Plate

(SUB FOR AT250013)

4шт.

11

4373799

Wear Plate

(SUB FOR AT250014)

8шт.

12

TH100074

Lubrication Fitting

2шт.

13

FFSB103572

Hydraulic Hose

4шт.

14

Frame

( FFSB103253 NO LONGER AVAILABLE FOR SERVICE)

2шт.

Выбрано товаров: 15
