Запчасти John Deere 200LC, 330LC, 370 24 - Counterweight with Extra Fuel Tank 0560 External Fuel Supply Systems

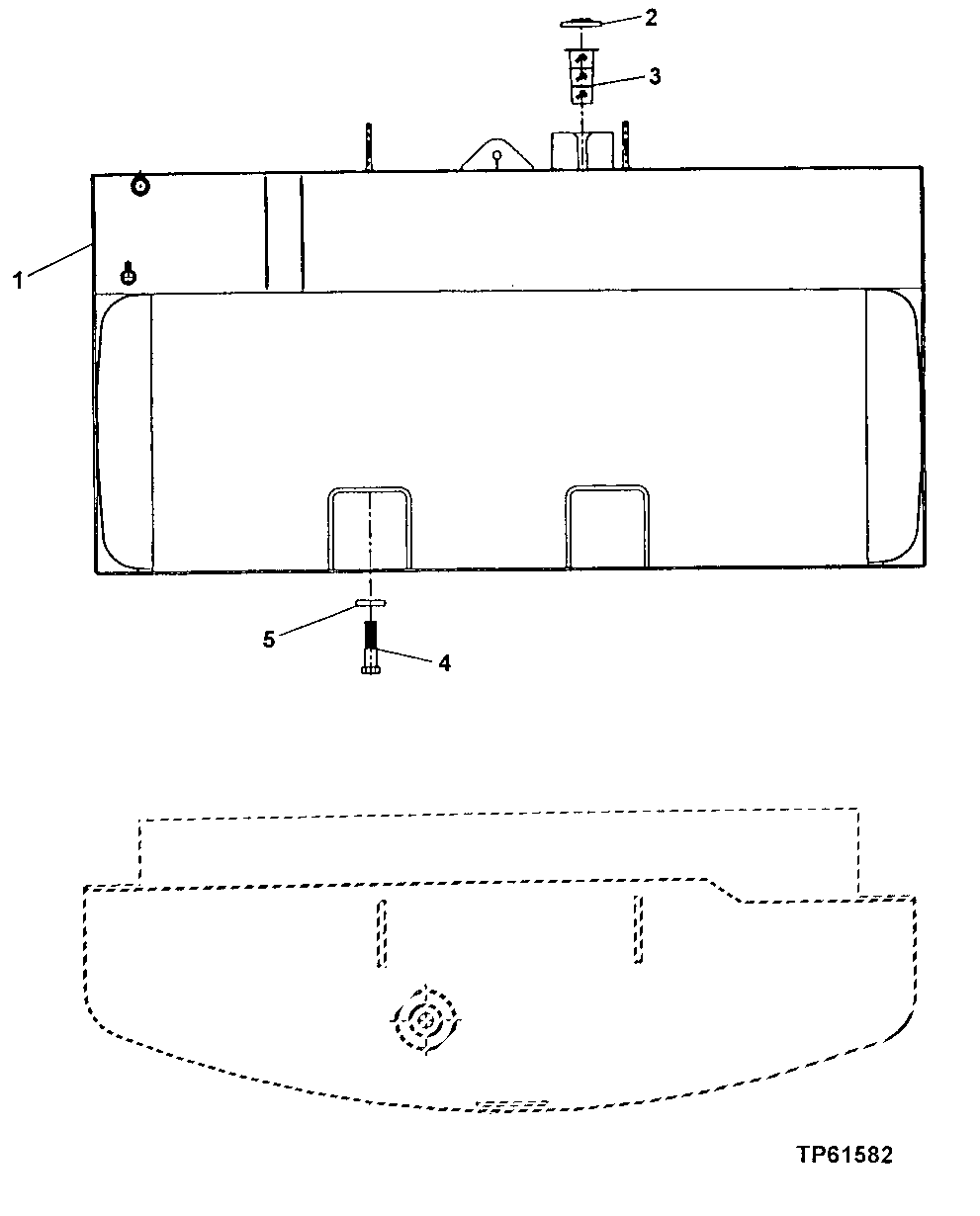

Схема запчастей John Deere 200LC, 330LC, 370 - 24 - Counterweight with Extra Fuel Tank 0560 External Fuel Supply Systems

Артикул

Название

Примечание

Количество

1

FFSB102097

Counterweight

1шт.

FFSB102098

Counterweight

1шт.

2

4361638

Cap

SUB FOR AT175989, KEY LOCK ABLE, ORDER KEY SEPARATELY

1шт.

AT194969

Key

1шт.

AT323462

Filler Cap

SUB FOR AT175989 OR 4361638, CAN BE LO CKED WITH PADLOCK, PADLOCK NOT INCLUDED

1шт.

3

4353560

Strainer

SUB FOR AT213970

1шт.

4

AT178268

Bolt

M33 X 370

4шт.

4368611

Screw

SUB FOR AT219698

4шт.

5

4381408P

Spacer

SUB FOR AT178269 OR 4381408

4шт.

4381407P

Spacer

SUB FOR AT250024 OR 4381407

4шт.

Выбрано товаров: 10
