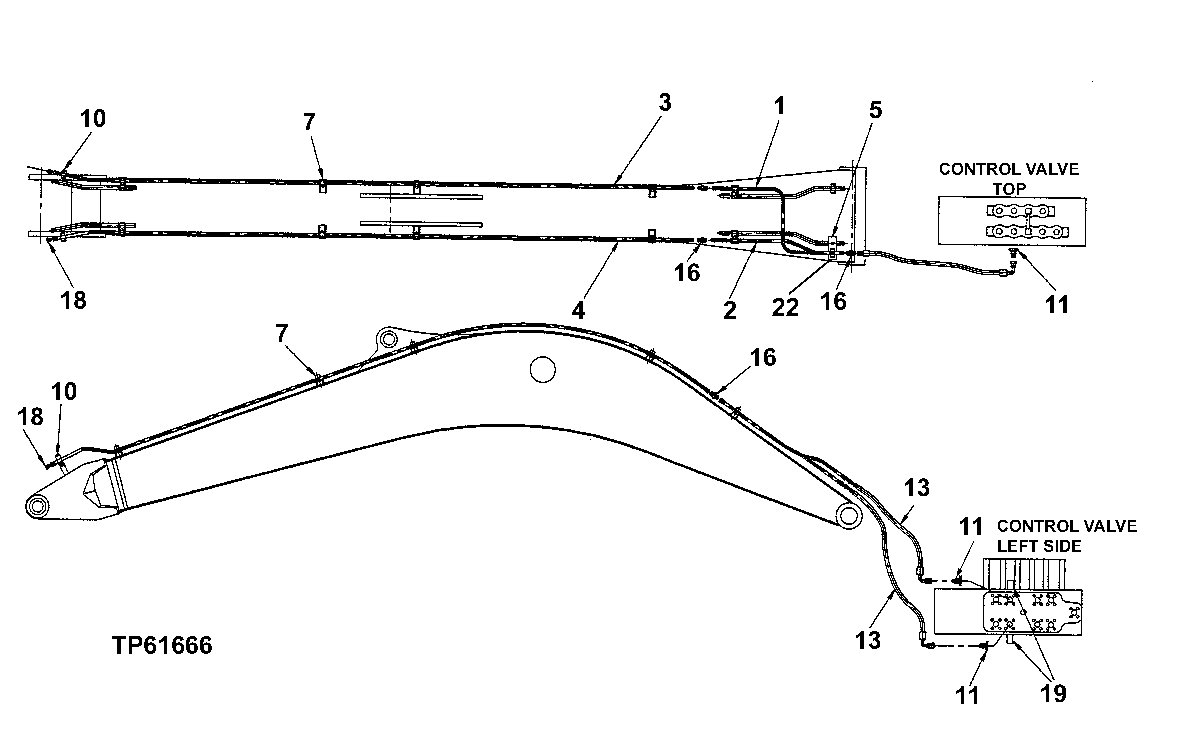

Запчасти John Deere 200LC, 330LC, 370 167 - HYDRAULIC THUMB FRONT END PIPING 3360 HYDRAULIC SYSTEM

1

FFSB102575

Oil Line

1шт.

2

FFSB102576

Oil Line

1шт.

3

FFSB102577

Oil Line

1шт.

4

FFSB102578

Oil Line

1шт.

5

FFSB102579

Clamp

1шт.

19M7753

Cap Screw

M12 X 70

1шт.

12H301

Lock Washer

1/2"

1шт.

7

FFSB102580

Clamp

10шт.

19M7363

Cap Screw

M12 X 60

10шт.

12H301

Lock Washer

1/2"

10шт.

10

4190126

Clamp

(SUB FOR TH109830)

2шт.

19M7363

Cap Screw

M12 X 60

2шт.

12H301

Lock Washer

1/2"

2шт.

11

T78313

O-Ring

32.920 X 3.530 mm

3шт.

FFSB102582

Adapter Fitting

3шт.

H61354

Flange Fitting

6шт.

19M7576

Screw

M10 X 30 (SUB FOR J781030)

12шт.

13

FFSB102581

Hydraulic Hose

2шт.

16

U44756

Fitting

3шт.

18

R37202

Fitting

2шт.

19

4419373

Pressure Relief Valve

(SUB FOR AT185397)

2шт.

22

FFSB100112

Half Clamp

4шт.

FFSB100114

Reinforcement

1шт.

Plate

( FFSB102622 NOT AVAILABLE FOR SERVICE)

1шт.

19H2007

Cap Screw

3/8" X 4-1/2"

2шт.

12H304

Lock Washer

3/8"

2шт.
