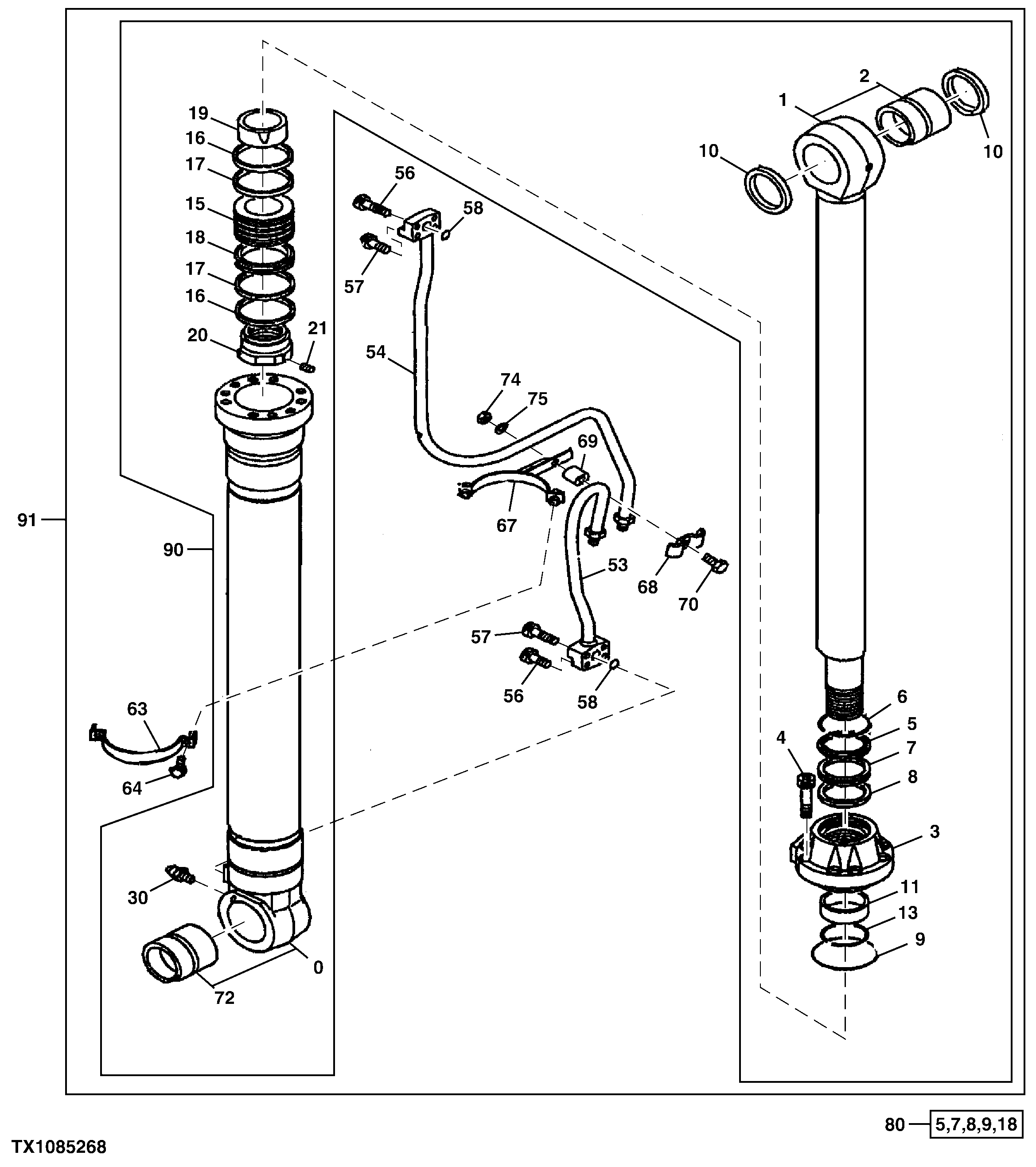

Запчасти John Deere 200LC, 330LC, 370 152 - LOG LOADER LEFT BOOM CYLINDER (370) (SERIAL NO. XXXXXX- ) 3360 HYDRAULIC SYSTEM

0

7039265

Tube

(SUB FOR FFSB107110)

1шт.

1

7037845

Rod

(SUB FOR FFSB107111)

1шт.

2

3083925

Bushing

(SUB FOR FFSB107112 OR AT192320)

1шт.

3

1025101

Hydr. Cylinder Rod Guide

(SUB FOR FFSB107205 OR AT219589)

1шт.

4

M342700

Screw

(SUB FOR FFSB107209 OR TH111068)

8шт.

5

AT264305

Seal

(SUB FOR FFSB107210, AT250009 OR 4370927)

1шт.

6

4370058

Snap Ring

(SUB FOR FFSB107211 OR AT250001)

1шт.

7

AT264300

Seal

(SUB FOR 4411659, FFSB1072 12, FFSB108217 OR AT192601)

1шт.

8

4411656

Ring

(SUB FOR FFSB107213, F FSB108218 OR AT192600)

1шт.

9

AT264309

O-Ring

For Heat Problems See DTAC Solution (S UB FOR FFSB107214, AT250098 OR 4393350)

1шт.

4641099

O-Ring

Heat Resistant

1шт.

10

4411613

Seal

(SUB FOR FFSB108219 OR AT192608)

2шт.

11

AT264304

Bushing

(SUB FOR FFSB107216, AT250007 OR 4370337)

1шт.

13

4372816

Snap Ring

(SUB FOR FFSB107217 OR AT250011)

1шт.

15

3080654

Piston

(SUB FOR FFSB107218 OR AT219642)

1шт.

16

AT264248

Ring

(SUB FOR FFSB107226, AT250005 OR 4370063)

2шт.

17

AT264303

Wear Ring

(SUB FOR FFSB107228, AT250006 OR 4370064)

2шт.

18

AT264301

Seal

(SUB FOR FFSB107229, AT250004 OR 4370062)

1шт.

19

2041632

Ring

(SUB FOR FFSB107230, AT192324 OR 2044681)

1шт.

20

3062096

Nut

(SUB FOR FFSB107231 OR AT200985)

1шт.

21

4201806

Set Screw

(SUB FOR FFSB107232 OR TH110066)

1шт.

30

TH100074

Lubrication Fitting

(SUB FOR FFSB107233)

1шт.

53

8081915

Line

(SUB FOR FFSB107235)

1шт.

54

8081899

Line

(SUB FOR FFSB107234)

1шт.

56

19M8341

Screw

M12 X 45 (SUB FOR FFSB107236)

4шт.

57

19M8444

Screw

M12 X 60 (SUB FOR FFSB107237)

4шт.

58

AT264324

O-Ring

(SUB FOR FFSB107238 OR TH100044)

2шт.

63

3080222

Clamp

(SUB FOR FFSB107240)

1шт.

64

19M7550

Cap Screw

M10 X 35 (SUB FOR FFSB107241)

2шт.

67

8081943

Clamp

(SUB FOR FFSB107239)

1шт.

68

4229234

Clamp

(SUB FOR FFSB107242 OR TH111990)

1шт.

69

4410980

Spacer

(SUB FOR FFSB107243 OR AT192325)

1шт.

70

19M8348

Cap Screw

M12 X 65 (SUB FOR FFSB107244)

1шт.

72

FFSB102183

Bushing

1шт.

74

14M7275

Nut

M12 (SUB FOR FFSB107245)

1шт.

75

12H301

Lock Washer

1/2"

1шт.

80

9180582

Seal Kit

For Heat Problems See DTAC Soluti on (SUB FOR FFSB108220, AT264441 O R AT192606 (ALSO INCLUDES AT280442 )

1шт.

9257552

Seal Kit

Heat Resistant

1шт.

90

Hydraulic Cylinder

(SUB 4656440) ( FFSB110795 OR 9218638 NLA) For Cylinder Applications Other Than Log Lo aders See 330LC/370 Excavator Parts Catalog

1шт.

91

Hydraulic Cylinder

( FFSB104895 NLA)

1шт.
