Запчасти John Deere 200LC, 330LC, 370 148 - RIGHT BOOM CYLINDER (LOG LOADER CONFIGURATION)(SN 200417- ) 3360 HYDRAULIC SYSTEM

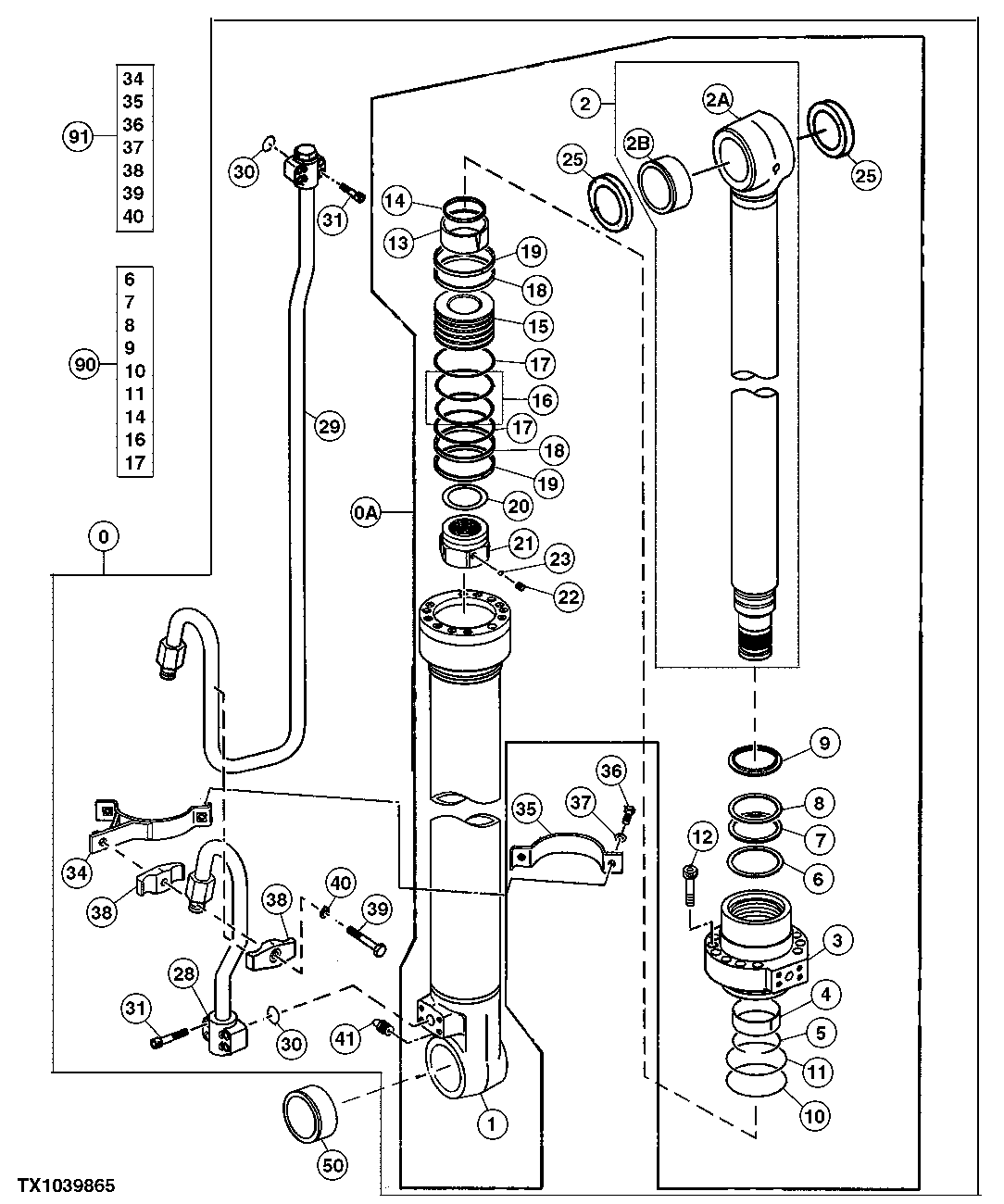

Схема запчастей John Deere 200LC, 330LC, 370 - 148 - RIGHT BOOM CYLINDER (LOG LOADER CONFIGURATION)(SN 200417- ) 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

0

4641543

Hydraulic Cylinder

(SUB FOR FFSB114749 ) (ORDER FFSB104898)

1шт.

0A

Hydraulic Cylinder

( 4656437 NLA)

1шт.

1

1163001

Tube

1шт.

2

1163006

Hydraulic Cylinder Rod

1шт.

2A

1163003

Hydraulic Cylinder Rod

1шт.

2B

0237108

Bushing

1шт.

3

0961803

Hydraulic Cylinder Cap

1шт.

4

T108050

Wear Ring

(SUB FOR 0309204)

1шт.

5

TH102766

Snap Ring

(SUB FOR 0236905)

1шт.

6

H227909

Seal

(SUB FOR 0976005)

1шт.

7

H227910

Seal

(SUB FOR 0976006)

1шт.

8

H155310

Back-Up Ring

(SUB FOR 0667405)

1шт.

9

H155311

Seal

(SUB FOR 0667406)

1шт.

10

AT264224

O-Ring

(SUB FOR A811130)

1шт.

11

H178691

Back-Up Ring

(SUB FOR 0789107)

1шт.

12

19M8913

Screw

M18 X 80 (SUB FOR 0219305)

12шт.

13

H155319

Ring

(SUB FOR 0409908)

1шт.

14

H155320

Seal

(SUB FOR 0667407)

1шт.

15

0876407

Piston

1шт.

16

AH173446

Ring

(SUB FOR 0309210)

1шт.

17

H178694

Back-Up Ring

(SUB FOR 0789109)

2шт.

18

H227905

Ring

(SUB FOR 0962104)

2шт.

19

H178696

Back-Up Ring

(SUB FOR 0309212)

2шт.

20

T108063

Shim

(SUB FOR 0309216)

1шт.

21

0789111

Nut

1шт.

22

22M6684

Set Screw

M12 X 12 (SUB FOR 0309011)

1шт.

23

T13624

Ball

(SUB FOR 0111707)

1шт.

25

0461103

Seal

2шт.

28

1163002

Oil Line

1шт.

29

1163004

Oil Line

1шт.

30

AT264348

O-Ring

(SUB FOR 984614)

2шт.

31

19M8448

Screw

M12 X 35 (SUB FOR M341236)

8шт.

34

1163005

Clamp

1шт.

35

H227901G

Clamp

(SUB FOR 0309221 OR H227901)

1шт.

36

19M7550

Cap Screw

M10 X 35 (SUB FOR J901035)

2шт.

37

12M7066

Lock Washer

10 mm (SUB FOR A590910)

2шт.

38

0236915G

Half Clamp

(SUB FOR 0236915)

2шт.

39

19M7291

Cap Screw

M14 X 90 (SUB FOR 0236916)

1шт.

40

12H317

Lock Washer

9/16" (SUB FOR A590914)

1шт.

41

TH100074

Lubrication Fitting

(SUB FOR J75481)

1шт.

50

FFSB106710

Bushing

1шт.

90

4662884

Seal Kit

1шт.

91

1163007

Clamp

1шт.

Выбрано товаров: 43
