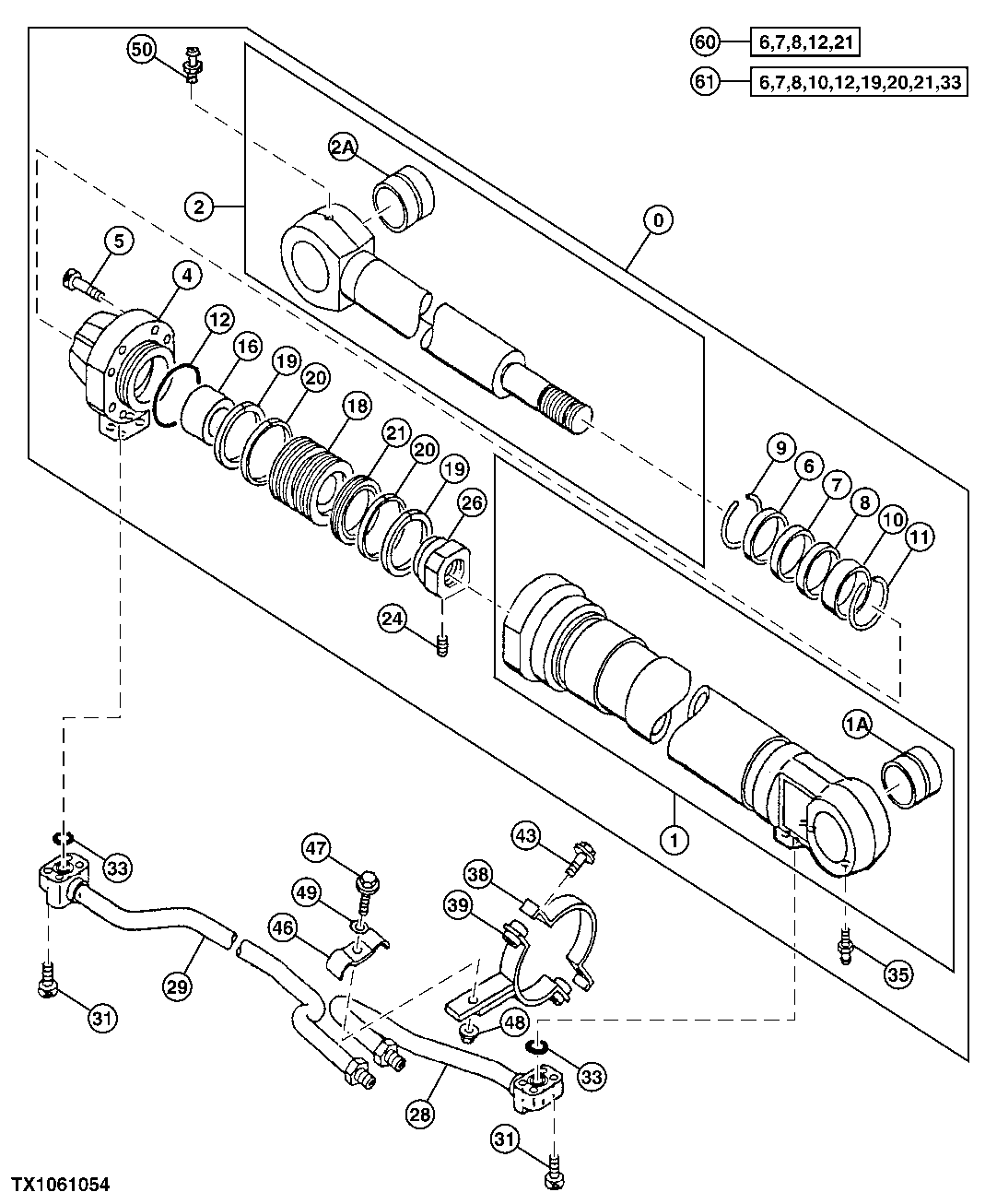

Запчасти John Deere 200LC, 330LC, 370 146 - LOG LOADER RIGHT BOOM CYLINDER (200LC) (SN -051018) 3360 HYDRAULIC SYSTEM

0

Hydraulic Cylinder

SUB FFSB104898, LEFT AND RIGHT CYLINDERS M UST BOTH BE REPLACED AT THE SAME TIME, FOR CYLINDER APPLICATONS OTHER THAN LOG LOADERS SEE 200 EXCAVATOR PARTS CATALOG, FFSB11079 3 OR 9218634 NO LONGER AVAILABLE FOR SERVIC E

1шт.

1

Hydraulic Cylinder Barrel

FFSB102692 NLA

1шт.

1A

FFSB102566

Bushing

1шт.

2

Rod

FFSB102690 NO LONGER AVAILABLE FOR SERVICE

1шт.

2A

3042080

Bushing

SUB FOR AT165103

1шт.

4

1015435

Hydr. Cylinder Rod Guide

SUB FOR AT217933

1шт.

5

19M8630

Screw

M24 X 80

8шт.

6

AT264294

Seal

SUB FOR AT217969, 4348201

1шт.

7

AT264408

Seal

SUB FOR TH111216

1шт.

8

AT264409

Ring

1шт.

4389326

Ring

2шт.

9

4369508

Ring

SUB FOR AT217983

1шт.

10

AT217959

Wear Ring

1шт.

11

4264982

Snap Ring

SUB FOR AT131254

1шт.

12

AT264268

O-Ring

1шт.

16

4264978

Spacer

SUB FOR AT217956

1шт.

18

3052363

Piston

SUB FOR AT217937

1шт.

19

AT264397

Ring

SUB FOR TH110033

2шт.

20

AT264266

Wear Ring

SUB FOR AT154718

2шт.

21

AT264297

Seal

SUB FOR TH110036, AT218148

1шт.

24

4201805

Set Screw

M12 X 16 SUB FOR TH110037

1шт.

26

3063059

Nut

SUB FOR AT217940

1шт.

28

FFSB103117

Oil Tube

1шт.

29

FFSB103118

Oil Tube

1шт.

31

19M8489

Screw

M12 X 65

8шт.

33

AT264324

O-Ring

SUB FOR TH100044

2шт.

35

TH100074

Lubrication Fitting

SUB FOR FFSB107233

1шт.

38

FFSB103067

Clamp

1шт.

43

19M7361

Cap Screw

M12 X 50 SUB FOR FFSB103201

2шт.

12H301

Lock Washer

1/2"

2шт.

14M7275

Nut

M12

2шт.

46

4189860

Clamp

SUB FOR TH108314

1шт.

47

19M8088

Cap Screw

M12 X 75 SUB FOR FFSB105797

1шт.

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

48

14M7275

Nut

M12

1шт.

49

12H301

Lock Washer

1/2"

1шт.

50

JD7769

Lubrication Fitting

1шт.

60

9180587

Seal Kit

1шт.

61

AT264437

Hydraulic Cylinder Kit

NLA, ORDER 9180587, SUB FOR 9161917 OR AT218042

1шт.
