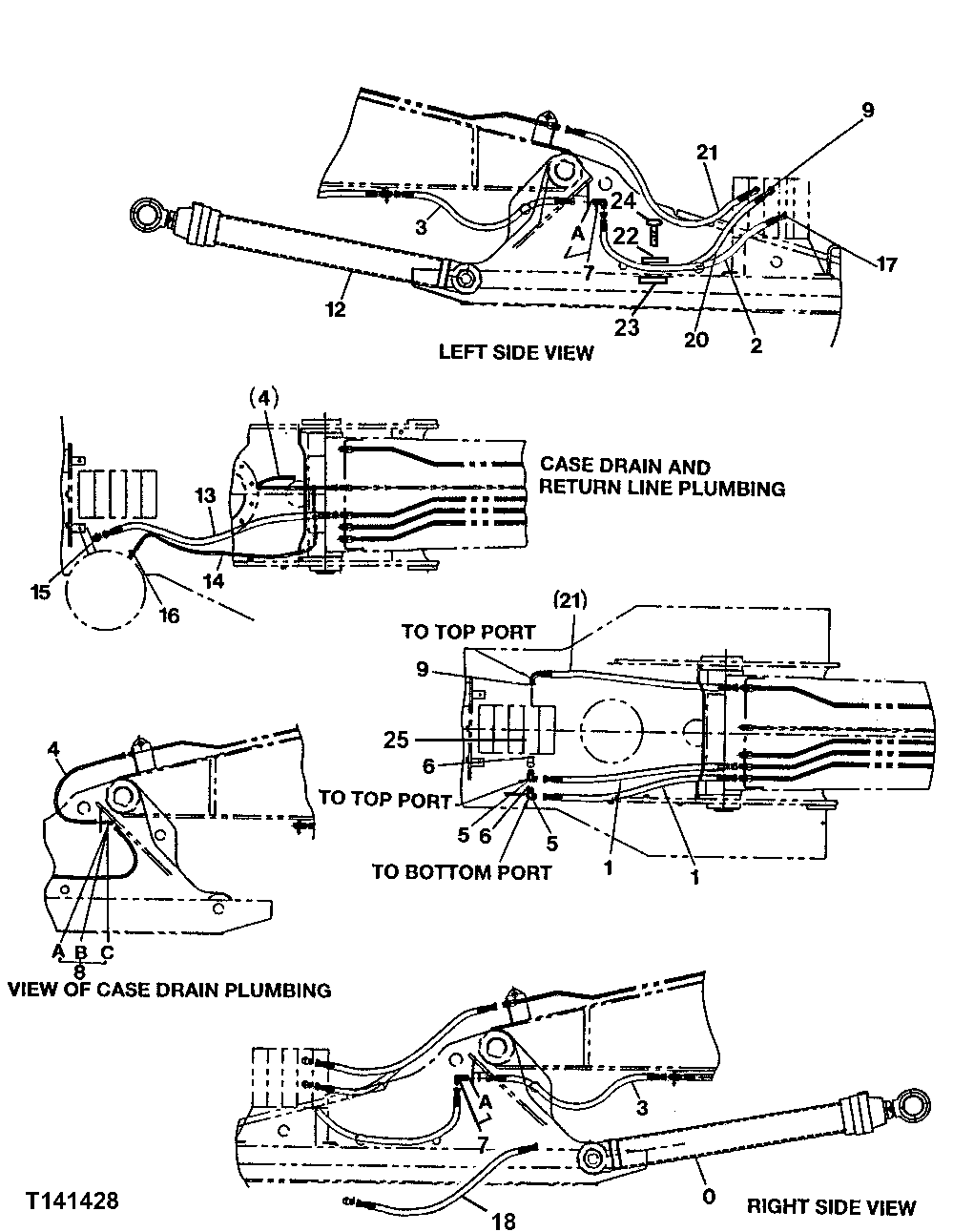

Запчасти John Deere 200LC, 330LC, 370 141 - Boom Cylinder Pipings (Butt-N-Top) 3360 HYDRAULIC SYSTEM

0

Hydraulic Cylinder

(SUB 4656440)(RIGHT BOOM CYLIN DER) (SEE SEPARATE PAGE FOR DET AIL) ( 9218638, FFSB104896 NLA )

1шт.

1

FFSB102509

Hydraulic Hose

2шт.

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

2шт.

2

FFSB102165

Hydraulic Hose

(TO RIGHT HAND BULKHEAD CYLI NDER TAIL END) (68.5 INCHES)

1шт.

3

FFSB102166

Hydraulic Hose

2шт.

4

FFSB102167

Hydraulic Hose

1шт.

5

Adapter Fitting

( FFSB107329 NO LONGER AVAILABLE)

2шт.

X16C5OLO-S

Elbow Fitting

(SUB FOR FFSB103495)

2шт.

X6F5OLO-S

Adapter Fitting

(SUB FOR FFSB106529)

2шт.

6

FFSB102168

Adapter Fitting

2шт.

H61354

Flange Fitting

2шт.

19M7576

Screw

M10 X 30 (SUB FOR J781030)

2шт.

T78313

O-Ring

32.920 X 3.530 mm

2шт.

7

FFSB102228

Adapter Fitting

2шт.

7A

T78715

Nut

36.525 mm

2шт.

8

Adapter Fitting

( FFSB102227 NOT AVAILABLE FOR SERV ICE - FURNISH INDIVIDUAL COMPONENTS)

2шт.

8A

38H1321

Elbow Fitting

1шт.

8B

T77857

O-Ring

12.421 X 1.778 mm

2шт.

8C

T78716

Nut

20.625 mm

1шт.

9

H61354

Flange Fitting

2шт.

19M7576

Screw

M10 X 30 (SUB FOR J781030)

2шт.

T78313

O-Ring

32.920 X 3.530 mm

2шт.

12

Hydraulic Cylinder

(SUB 4656440)(LEFT BOOM CYLIND ER) (SEE SEPARATE PAGE FOR DETA IL) ( 9218638, FFSB104895 NLA)

1шт.

13

FFSB102512

Hydraulic Hose

1шт.

14

FFSB102511

Hydraulic Hose

1шт.

15

4189535

Adapter Fitting

1шт.

16

AN33434

Tee Fitting

1шт.

17

R29867

Flange Fitting

2шт.

T72216

O-Ring

37.694 X 3.531 mm

1шт.

J781228

Bolt

(SUB FOR AT214412)

4шт.

18

FFSB105555

Hydraulic Hose

(37 INCHES)

2шт.

20

4386290

Hydraulic Hose

(SUB FOR AT250056)(TO LEFT BULKHEAD CYLINDER ROD END)

1шт.

21

AT250055

Hydraulic Hose

1шт.

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

1шт.

22

4202103

Clamp

(SUB FOR FFSB108769 ) (SUB FOR TH108302)

1шт.

23

9736782

Clamp

(SUB FOR FFSB108770 ) (SUB FOR AT201191)

1шт.

24

19M8348

Cap Screw

M12 X 65 (SUB FOR FFSB106424)

1шт.

12H301

Lock Washer

1/2"

1шт.

25

4419373

Pressure Relief Valve

(SUB FOR FFSB105643 ) (SUB FOR AT185397)

1шт.
