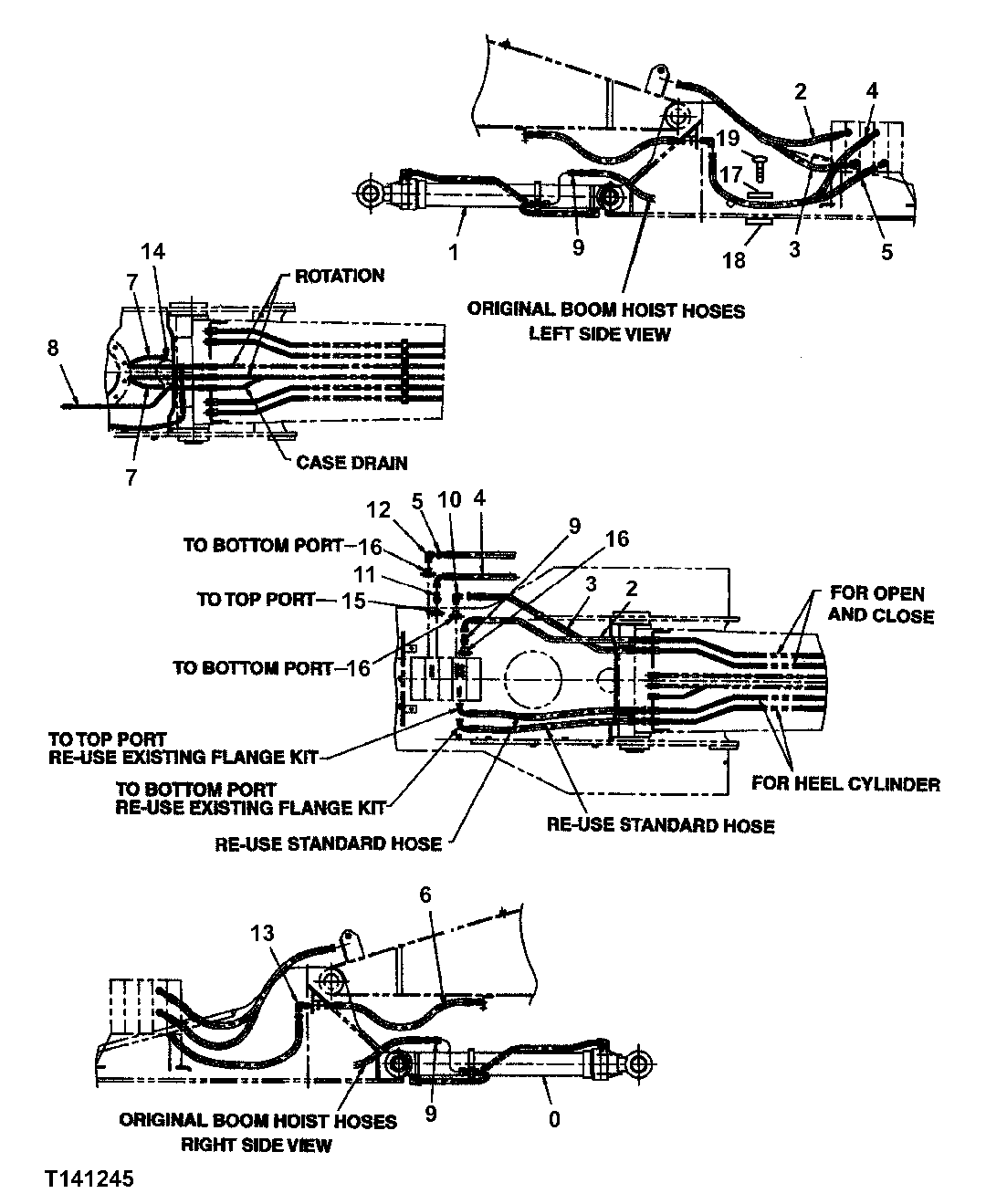

Запчасти John Deere 200LC, 330LC, 370 140 - BOOM CYLINDER PIPINGS (HEELER) 3360 HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
0
Hydraulic Cylinder
(RIGHT BOOM CYLINDER) (FOR COMPONENTS SEE SEPARATE PAGE) ( FFSB110793 NLA)
1шт.
Hydraulic Cylinder
(SUB 4656437)(RIGHT BOOM CYLINDE R) (FOR COMPONENTS SEE SEPARATE P AGE) ( FFSB104898, 9218634 NLA)_
1шт.
1
Hydraulic Cylinder
(SUB 4656437)(LEFT BOOM CYLINDER) ( FFSB110 973 NLA) (FOR COMPONENTS SEE SEPARATE PAGE)
1шт.
Hydraulic Cylinder
(LEFT BOOM CYLINDER) (FOR COMPONENTS SEE SEPARATE PAGE) ( FFSB104899, 9218634 NLA)
1шт.
2
FFSB103311
Hydraulic Hose
1шт.
3
FFSB103312
Hydraulic Hose
1шт.
4
FFSB103309
Hydraulic Hose
(TO LEFT HAND BULKHEAD CYLINDER ROD END)
1шт.
5
FFSB103308
Hydraulic Hose
(TO RIGHT HAND BULKHEAD CYLINDER TAIL END)
1шт.
6
FFSB103310
Hydraulic Hose
1шт.
7
FFSB102167
Hydraulic Hose
2шт.
8
FFSB103313
Hydraulic Hose
1шт.
9
38H1194
Adapter Fitting
ARшт.
R29936
O-Ring
29.743 X 2.946 mm
ARшт.
10
38H1052
Elbow Fitting
1шт.
R29936
O-Ring
29.743 X 2.946 mm
1шт.
11
38H1179
Adapter Fitting
1шт.
R29936
O-Ring
29.743 X 2.946 mm
1шт.
13
38H1456
Elbow Fitting
1шт.
14
38H1321
Elbow Fitting
1шт.
15
FFSB103314
Plate
(TO TOP PORT)
1шт.
FFSB103501
Adapter Fitting
1шт.
R29424
Flange Fitting
2шт.
T72888
O-Ring
24.994 X 3.531 mm
1шт.
16
FFSB102168
Adapter Fitting
3шт.
H61354
Flange Fitting
12шт.
19M7576
Screw
M10 X 30 (SUB FOR J781030)
32шт.
T78313
O-Ring
32.920 X 3.530 mm
6шт.
17
4202103
Clamp
(SUB FOR FFSB108769 ) (SUB FOR TH108302)
1шт.
18
9736782
Clamp
(SUB FOR FFSB108770 ) (SUB FOR AT201191)
1шт.
12H301
Lock Washer
1/2"
1шт.
Выбрано товаров: 39
