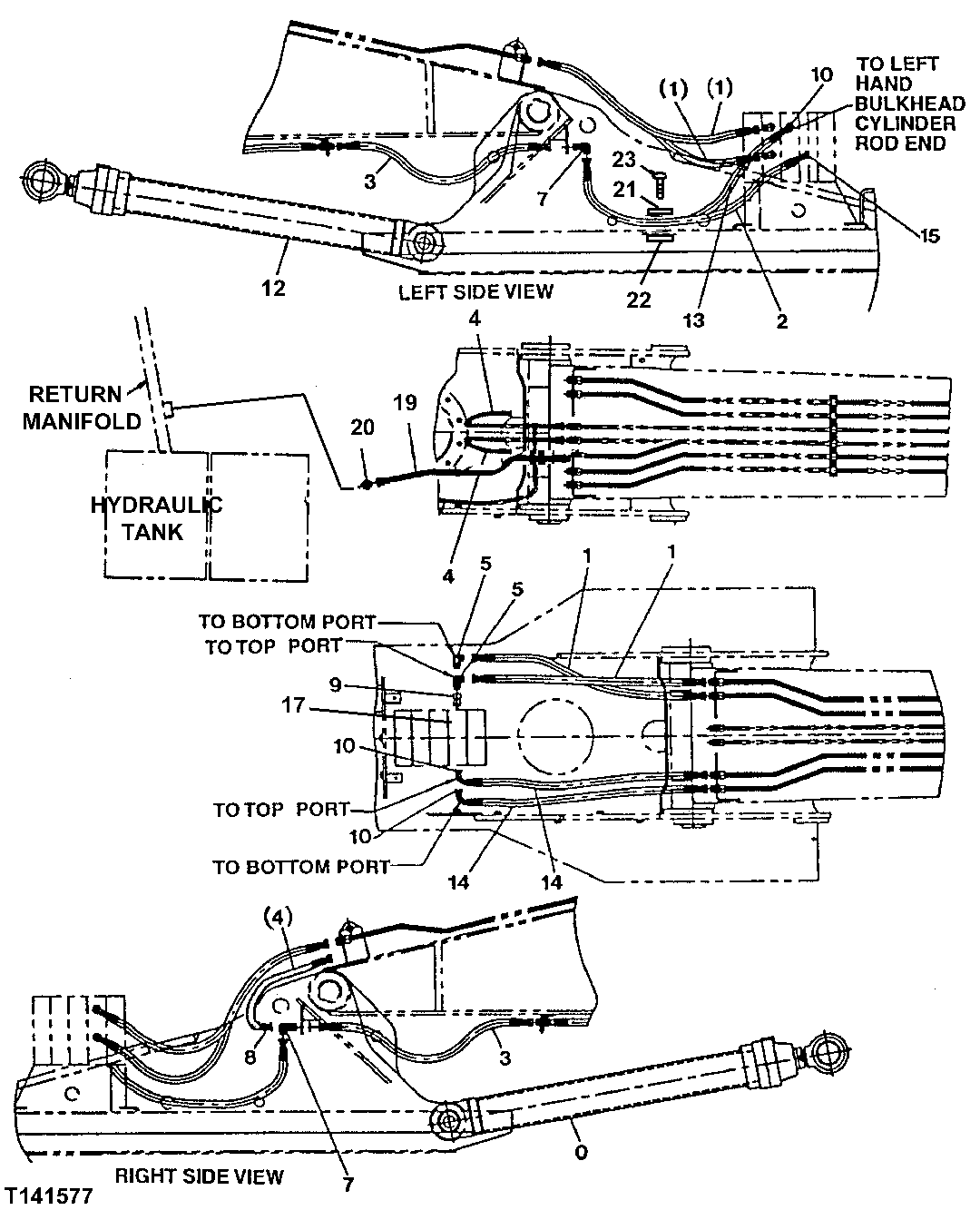

Запчасти John Deere 200LC, 330LC, 370 139 - Boom Cylinder Pipings (Heeler) 3360 HYDRAULIC SYSTEM

0

Hydraulic Cylinder

(RIGHT LOG LOADER BOOM CYLINDER ) (NOT AVAILABLE FOR SERVICE - F OR COMPONENTS SEE SEPARATE PAGE)

1шт.

1

FFSB102164

Hydraulic Hose

2шт.

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

2шт.

2

FFSB102165

Hydraulic Hose

(TO RIGHT HAND BULKHEAD CYLI NDER TAIL END) (68.5 INCHES)

1шт.

3

FFSB102166

Hydraulic Hose

2шт.

4

FFSB102167

Hydraulic Hose

2шт.

5

Elbow Fitting

( 38H1493 NOT AVAILABLE FOR SERVICE)

2шт.

7

38H1456

Elbow Fitting

2шт.

T78715

Nut

36.525 mm

2шт.

8

38H1321

Elbow Fitting

2шт.

T77857

O-Ring

12.421 X 1.778 mm

2шт.

T78716

Nut

20.625 mm

2шт.

9

FFSB102168

Adapter Fitting

2шт.

H61354

Flange Fitting

2шт.

19M7576

Screw

M10 X 30 (SUB FOR J781030)

4шт.

T78313

O-Ring

32.920 X 3.530 mm

1шт.

10

H61354

Flange Fitting

8шт.

19M7576

Screw

M10 X 30 (SUB FOR J781030)

16шт.

T78313

O-Ring

32.920 X 3.530 mm

4шт.

12

Hydraulic Cylinder

(LEFT BOOM CYLINDER) (NOT AVAILABLE FOR S ERVICE - FOR COMPONENTS SEE SEPARATE PAGE)

1шт.

13

4386290

Hydraulic Hose

(SUB FOR AT250056)

1шт.

14

AT250055

Hydraulic Hose

2шт.

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

2шт.

15

R29867

Flange Fitting

2шт.

T72216

O-Ring

37.694 X 3.531 mm

1шт.

J781228

Bolt

(SUB FOR AT214412)

4шт.

17

4419373

Pressure Relief Valve

(SUB FOR FFSB105643 ) (SUB FOR AT185397)

1шт.

19

FFSB103766

Hydraulic Hose

1шт.

20

X1216F4OMXS

Adapter Fitting

(SUB FOR FFSB103796)

1шт.

21

4202103

Clamp

(SUB FOR FFSB108769 ) (SUB FOR TH108302)

1шт.

22

9736782

Clamp

(SUB FOR FFSB108770 ) (SUB FOR AT201191)

1шт.

23

19M8348

Cap Screw

M12 X 65 (SUB FOR FFSB106424)

1шт.

12H301

Lock Washer

1/2"

1шт.
