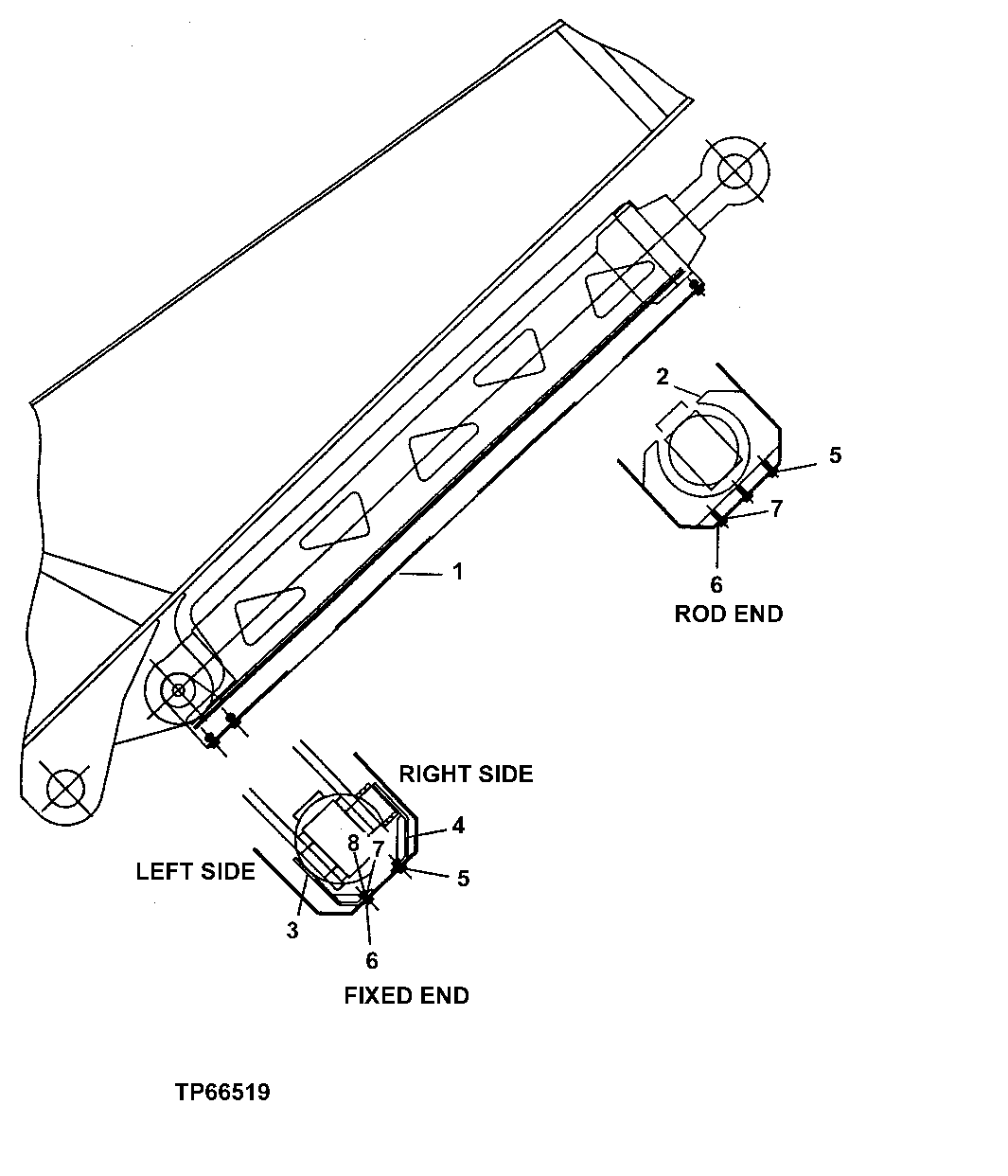

Запчасти John Deere 200LC, 330LC, 370 124 - ARM CYLINDER GUARD 3344 Boom

1

FFSB103284

Guard

(CONVENIENCE ASSEMBLY) (CONT AINS ALL ITEMS ON THIS PAGE)

1шт.

2

Bracket

( FFSB103285 NOT AVAILABLE FOR SERVICE)

1шт.

3

Bracket

( FFSB103286 NOT AVAILABLE FOR SERVICE)

1шт.

4

Bracket

( FFSB103287 NOT AVAILABLE FOR SERVICE)

1шт.

5

19M7395

Cap Screw

M16 X 40

7шт.

6

24M7053

Washer

17 X 30 X 3 mm

7шт.

7

12M7069

Lock Washer

16 mm

7шт.

8

14M7276

Nut

M16

4шт.
