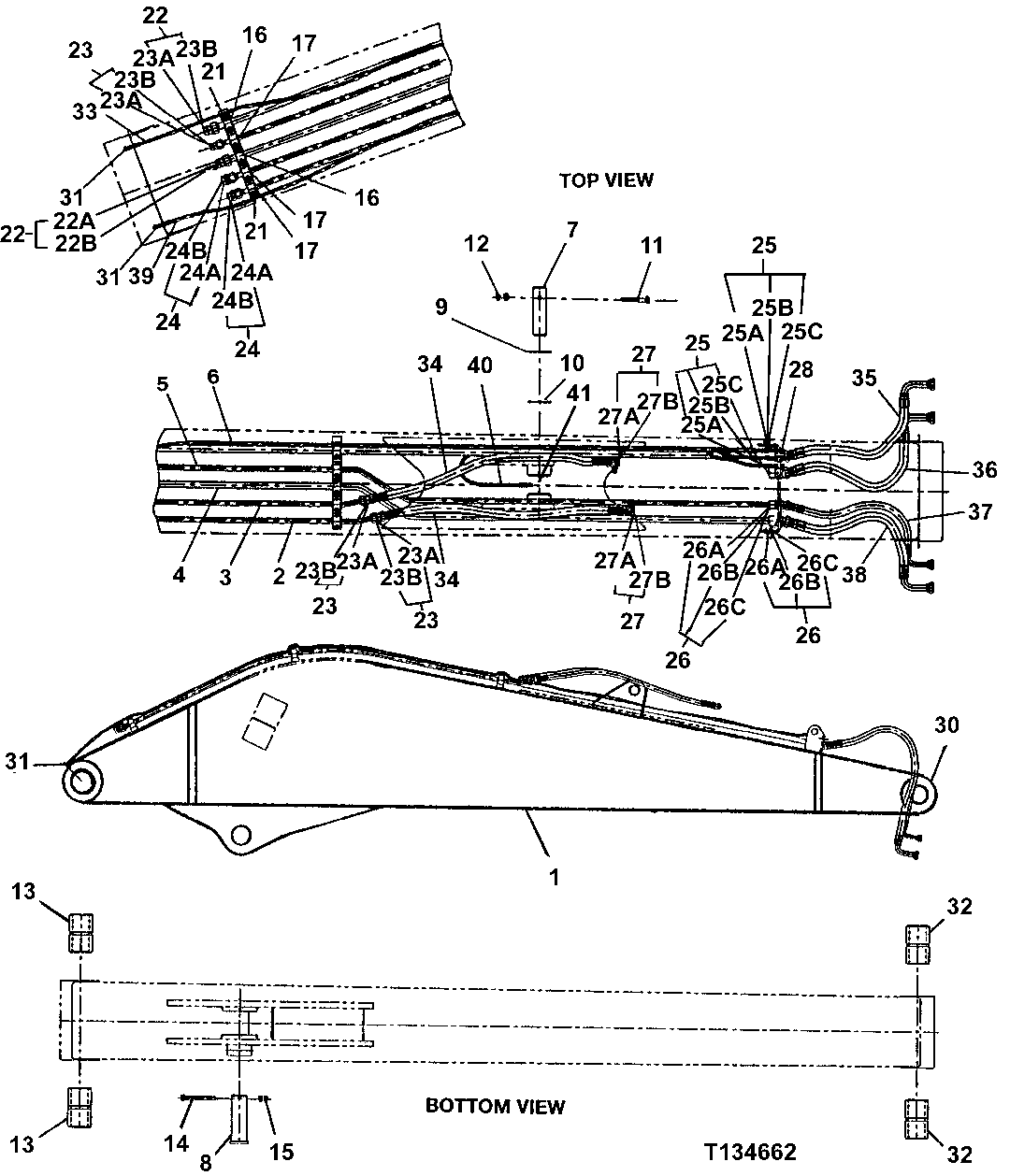

Запчасти John Deere 200LC, 330LC, 370 118 - BUTT-N-TOP ARM 3340 BACKHOE AND EXCAVATOR FRAMES

1

FFSB100133

Arm

1шт.

2

FFSB100128

Oil Line

1шт.

3

FFSB100129

Oil Line

1шт.

4

FFSB100130

Oil Line

1шт.

5

FFSB100131

Oil Line

1шт.

6

FFSB100132

Oil Line

1шт.

7

FFSB107257

Pin Fastener

(SUB FOR FFSB102450)

1шт.

8

FFSB107208

Pin Fastener

(SUB FOR FFSB100057)

1шт.

FFSB105628

Pin

1шт.

FFSB107208

Pin Fastener

(SUB FOR FFSB100057)

1шт.

FFSB105628

Pin

1шт.

9

FFSB105951

Wear Plate

(SUB FOR TH108944, THIS APPLICATION)

2шт.

10

FFSB105952

Wear Plate

(SUB FOR TH108944, THIS APPLICATION)

2шт.

11

19M8043

Cap Screw

M16 X 140

1шт.

12

14M7276

Nut

M16

2шт.

13

3055205

Bushing

(SUB FOR FFSB100054)

2шт.

14

19M8100

Cap Screw

M20 X 180

1шт.

15

14M7277

Nut

M20 (SUB FOR 14M7144)

2шт.

16

19H1726

Cap Screw

3/8" X 2-1/4"

16шт.

FFSB100114

Reinforcement

8шт.

FFSB100115

Lock Nut

16шт.

FFSB100112

Half Clamp

8шт.

17

19H1726

Cap Screw

3/8" X 2-1/4"

4шт.

FFSB100114

Reinforcement

2шт.

FFSB100115

Lock Nut

4шт.

FFSB100113

Half Clamp

2шт.

21

H75541

Clamp

(SUB FOR FFSB102223)

2шт.

22

Adapter Fitting

( FFSB102147 NOT AVAILABLE FOR SERVICE)

2шт.

22A

38H1281

Union Fitting

1шт.

22B

T76938

O-Ring

23.520 X 1.780 mm

2шт.

23

Adapter Fitting

( FFSB102148 NOT AVAILABLE FOR SERVICE)

3шт.

23A

38H1272

Union Fitting

1шт.

23B

T77858

O-Ring

18.771 X 1.778 mm

2шт.

24

X16-12HLO-S

Union Fitting

(SUB FOR FFSB102143)

2шт.

24A

T77858

O-Ring

18.771 X 1.778 mm

1шт.

24B

T76938

O-Ring

23.520 X 1.780 mm

1шт.

25

Adapter Fitting

( FFSB102538 NOT AVAILABLE FOR SERVICE)

2шт.

25A

38H1536

Elbow Fitting

1шт.

25B

T78715

Nut

36.525 mm

1шт.

25C

T76938

O-Ring

23.520 X 1.780 mm

1шт.

26

Adapter Fitting

( FFSB102539 NOT AVAILABLE FOR SERVICE)

2шт.

26A

38H1567

Elbow Fitting

1шт.

26B

T78707

Nut

30.175 mm

1шт.

26C

T77858

O-Ring

18.771 X 1.778 mm

1шт.

27

Adapter Fitting

( FFSB102540 NOT AVAILABLE FOR SERVICE)

2шт.

27A

38H1461

Elbow Fitting

1шт.

27B

T77858

O-Ring

18.771 X 1.778 mm

1шт.

28

X4WGTX-WLN-S

Adapter Fitting

(SUB FOR FFSB102226)

3шт.

TH100074

Lubrication Fitting

3шт.

30

JD7769

Lubrication Fitting

(SUB FOR FFSB104342)

1шт.

31

T107303

Elbow Fitting

3шт.

32

4443885

Bushing

(SUB FOR FFSB100055)

2шт.

33

FFSB102459

Hydraulic Hose

1шт.

34

FFSB102449

Hydraulic Hose

2шт.

35

FFSB102453

Hydraulic Hose

1шт.

36

FFSB102454

Hydraulic Hose

1шт.

37

FFSB102455

Hydraulic Hose

1шт.

38

FFSB102456

Hydraulic Hose

1шт.

39

FFSB102460

Hydraulic Hose

1шт.

40

FFSB102458

Hydraulic Hose

1шт.

41

T28850

Elbow Fitting

(SUB FOR FFSB104587)

1шт.
