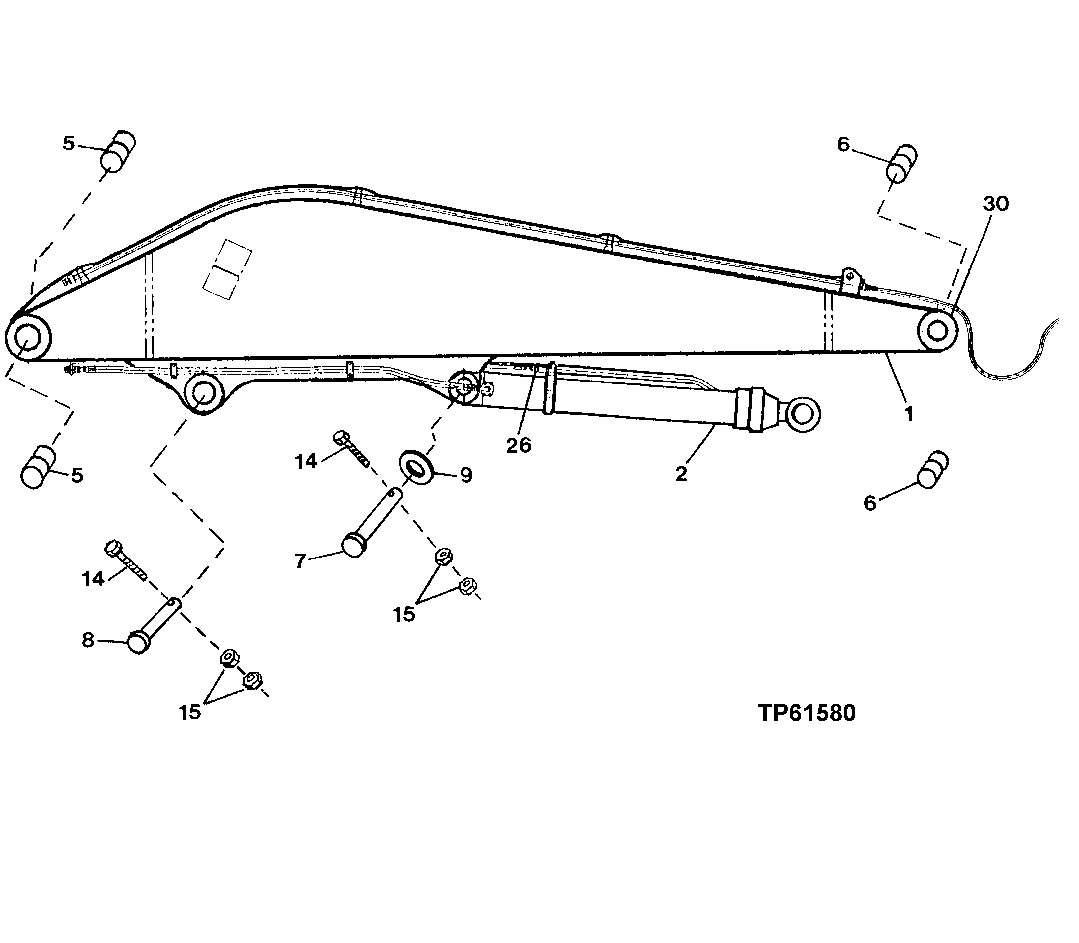

Запчасти John Deere 200LC, 330LC, 370 115 - HEELER ARM 3340 BACKHOE AND EXCAVATOR FRAMES

1

FFSB102995

Arm

(CONVENIENCE ASSEMBLY)

1шт.

2

Cylinder

(HEEL) (SEE SEPARATE PAGE FOR DETAIL)

1шт.

5

4443885

Bushing

(SUB FOR FFSB100055)

2шт.

6

4352398

Bushing

(SUB FOR FFSB102565)

2шт.

7

FF105533

Pin

(SUB FOR FFSB102817 AND FFSB107289)

1шт.

8

FFSB107287

Pin Fastener

(SUB FOR FFSB102815)

1шт.

FFSB105730

Cylinder

1шт.

9

4367410R

Thrust Washer

(SUB FOR AT214040 OR 4367410)(2.0 MM)

1шт.

4366692R

Thrust Washer

(SUB FOR AT214030 OR 4366692)(1.0 MM)

2шт.

14

19M8503

Cap Screw

M20 X 160

2шт.

15

14M7277

Nut

M20

4шт.

26

X16-12HLO-S

Union Fitting

(SUB FOR FFSB103487, FFSB102143)

1шт.

30

JD7844

Lubrication Fitting

3шт.
