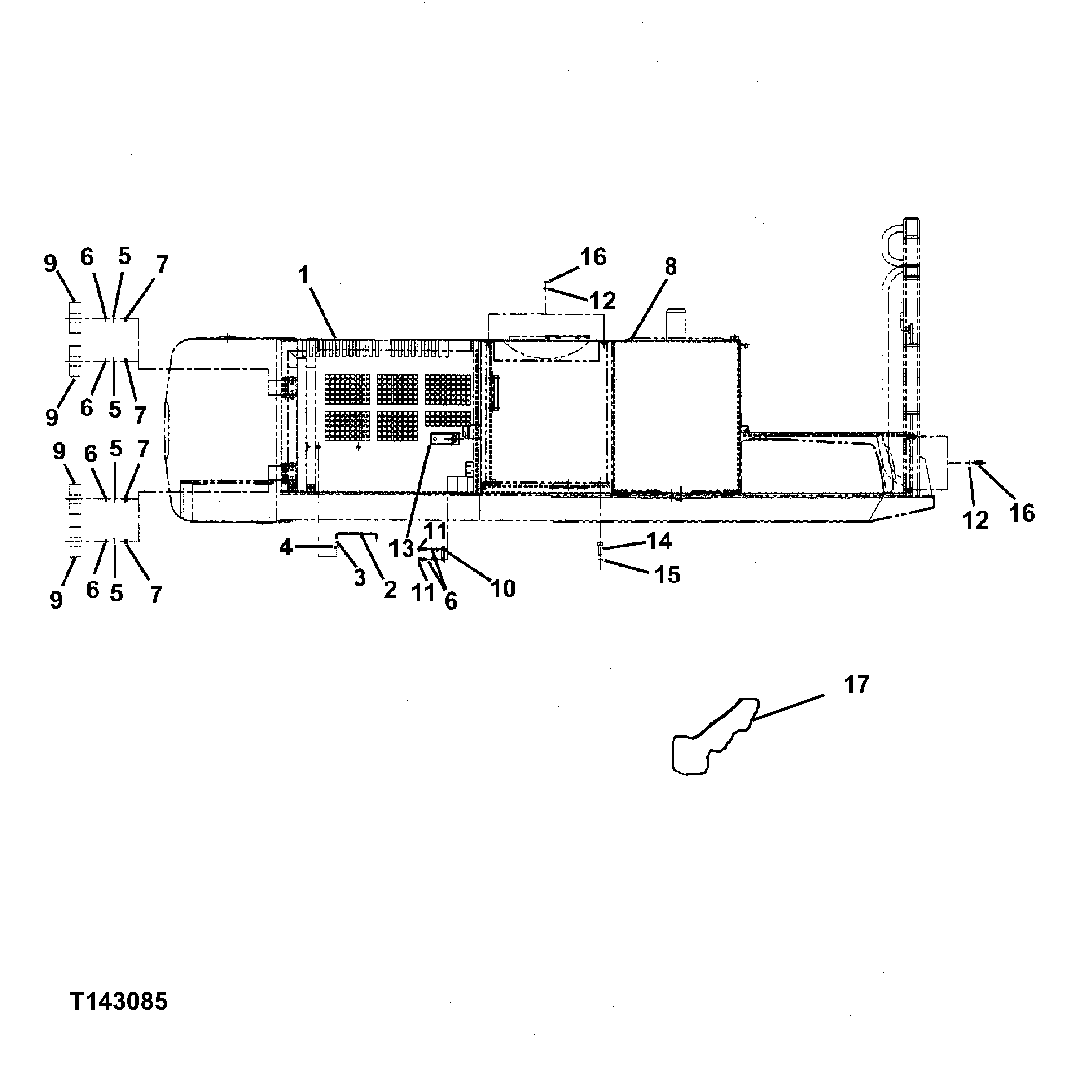

Запчасти John Deere 200LC, 330LC, 370 96 - SIDE GUARDING FULL RIGHT SIDE 1910 Hood Or Engine Enclosure

1

FFSB104470

Door

(FOR MACHINES WITH RIGHT SIDE CORNER GUARD)

1шт.

2

4341788

Rod

(SUB FOR AT213884 OR 4341788J)

1шт.

3

H132922

Cotter Pin

1шт.

4

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

5

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

6

12M7066

Lock Washer

10 mm

6шт.

7

14M7274

Nut

M10

4шт.

8

FFSB104486

Guard

1шт.

9

FFSB104491

Spacer

4шт.

10

FFSB102907

Plate

1шт.

11

19M7662

Cap Screw

M10 X 30

2шт.

12

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

13

FFSB102543

Latch

1шт.

14

19M7489

Cap Screw

M16 X 45

2шт.

15

12M7069

Lock Washer

16 mm

2шт.

16

19M7403

Cap Screw

M12 X 35

4шт.

17

FFSB106978

Key

1шт.
