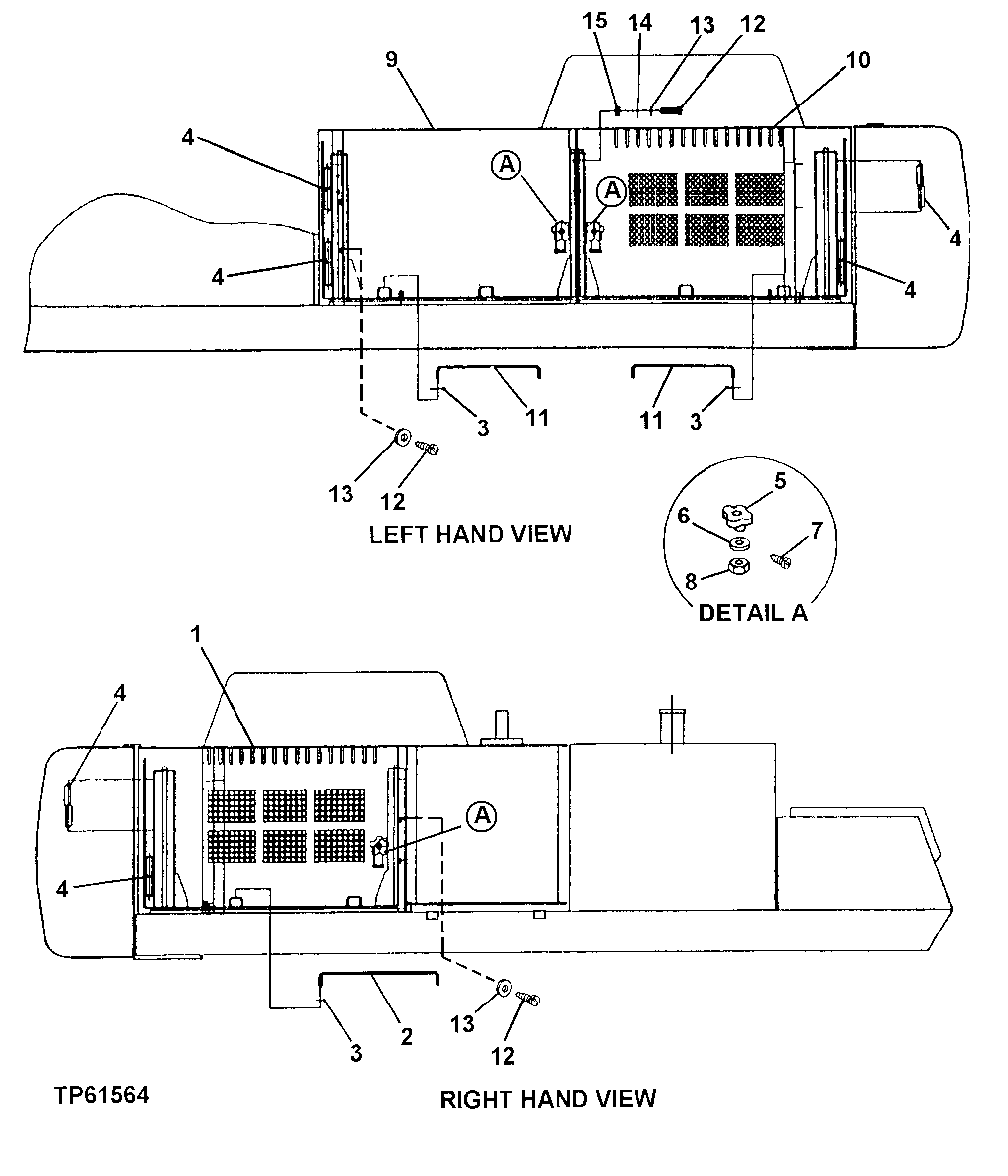

Запчасти John Deere 200LC, 330LC, 370 93 - SIDE GUARDING 1910 Hood Or Engine Enclosure

1

FFSB102017

Door

(NOT FOR USE WITH EXPANDED FUEL TANK)

1шт.

2

FFSB102018

Pin Fastener

1шт.

3

24H1111

Washer

17/32" X 1-1/16" X 0.090"

3шт.

4

FFSB102020

Hinge

6шт.

5

FFSB102021

Handle

3шт.

6

24H1236

Washer

13/16" X 2" X 0.149"

3шт.

7

22H896

Set Screw

0.190" X 3/16" ( FFSB102 541 NO LONGER AVAILABLE)

3шт.

8

FFSB102024

Retainer

3шт.

9

FFSB102025

Door

1шт.

10

FFSB102026

Door

1шт.

11

FFSB102027

Pin Fastener

2шт.

12

19H1800

Cap Screw

3/8" X 1-1/2"

6шт.

13

12H304

Lock Washer

3/8"

6шт.

14

24H1305

Washer

13/32" X 13/16" X 0.065"

2шт.

15

14H812

Nut

3/8"

2шт.
