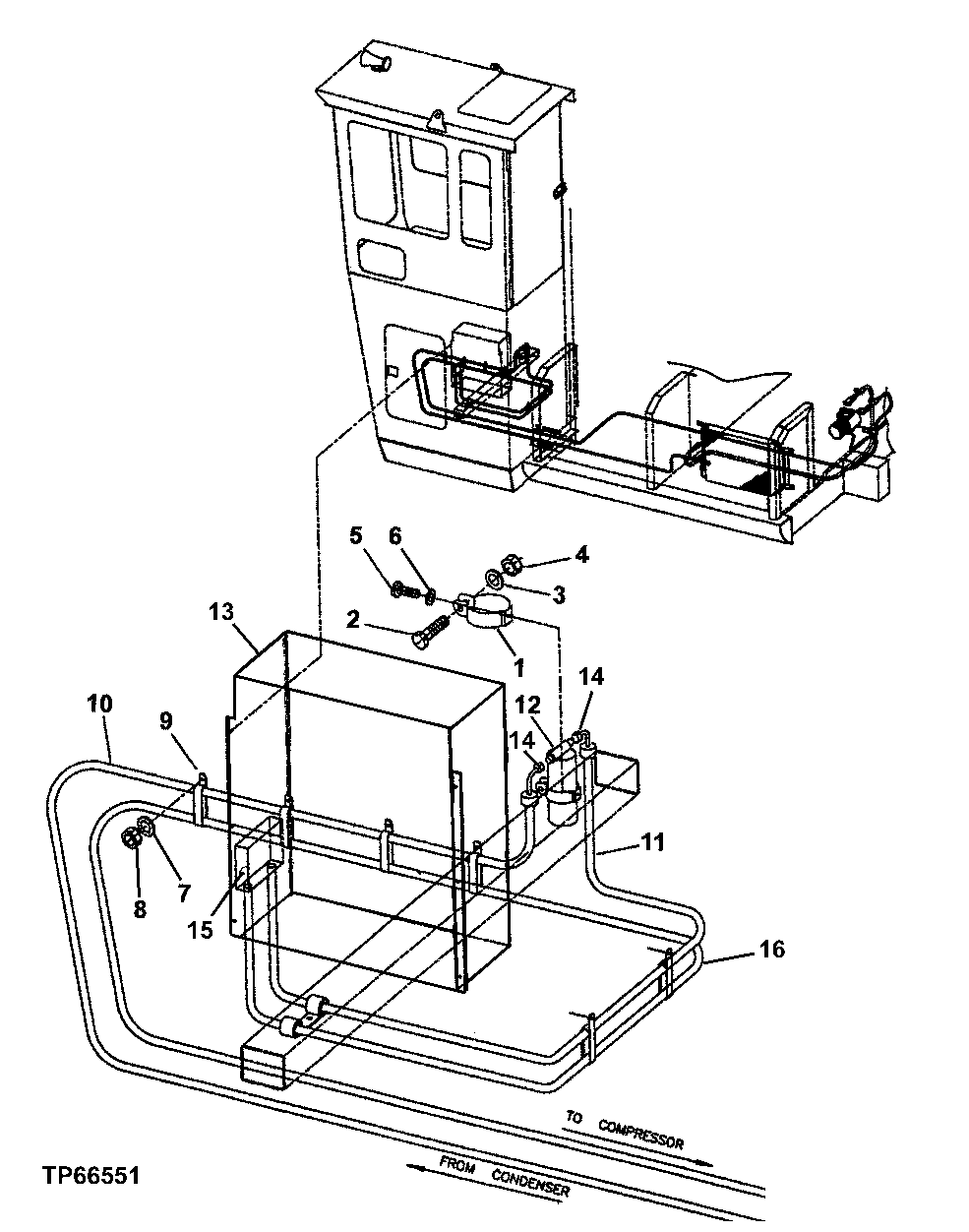

Запчасти John Deere 200LC, 330LC, 370 86 - REAR ENTRY CAB AIR CONDITIONER PIPING 1830 HEATING AND AIR CONDITIONING

1

FFSB102854

Clamp

1шт.

2

19H1898

Cap Screw

1/4" X 1-1/2"

1шт.

3

24H1287

Washer

9/32" X 5/8" X 0.065"

1шт.

4

K40001

Lock Nut

FFSB102853 NO LONGER AVAILABLE

1шт.

5

19H1900

Cap Screw

5/16" X 3/4"

1шт.

6

12H303

Lock Washer

5/16"

1шт.

7

24H1305

Washer

13/32" X 13/16" X 0.065"

6шт.

8

M68954

Lock Nut

FFSB102855 NO LONGER AVAILABLE

6шт.

9

FFSB102828

Clip

6шт.

10

FFSB102930

Refrigerant Hose

48 INCH REAR ENTRY CAB

1шт.

FFSB102856

Refrigerant Hose

72 INCH REAR ENTRY CAB

1шт.

11

FFSB102931

Refrigerant Hose

48 INCH REAR ENTRY CAB

1шт.

Refrigerant Hose

FFSB102857 NLA, 72 INCH REAR ENTRY CAB

1шт.

12

811913900

Receiver-Dryer

SUB FOR FFSB102859

1шт.

13

FFSB102748

Evaporator

1шт.

14

R10093

O-Ring

SUB FOR FFSB103060

3шт.

15

811144800

O-Ring

SUB FOR FFSB103061

1шт.

16

Refrigerant Hose

NLA, 48 INCH REAR ENTRY CAB

1шт.

FFSB102858

Refrigerant Hose

72 INCH REAR ENTRY CAB

1шт.
