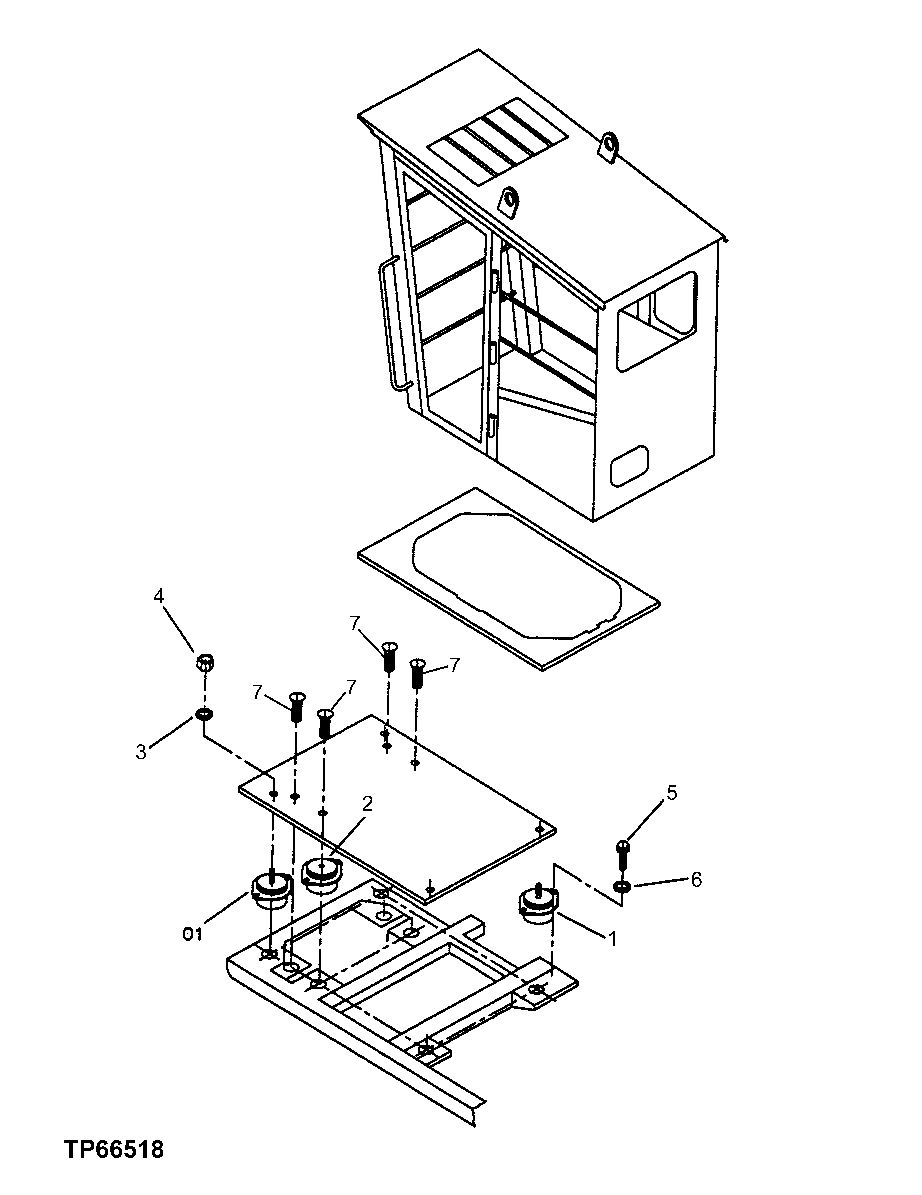

Запчасти John Deere 200LC, 330LC, 370 77 - FORESTRY CAB MOUNT 1810 Operator Enclosure

1

4366825

Isolator

SUB FOR 4386890 AND AT250068

4шт.

2

Isolator

FURNISH 4386890, FFSB103053 N LA Remove Stud These Locations

4шт.

3

24M7338

Washer

17 X 30 X 3 mm

4шт.

4

14M7328

Lock Nut

M16

4шт.

5

19M7493

Cap Screw

M12 X 40 SUB FOR 4330785 OR J921240

16шт.

6

12H301

Lock Washer

1/2"

16шт.

7

19M8575

Screw

M16 X 30

4шт.

20

Cab

Not Illustrated Convenience Assembl y Forestry Cab Contains All Items On This Page Additional Components Lis ted On Seperate Pages FFSB103421 NL A

1шт.
