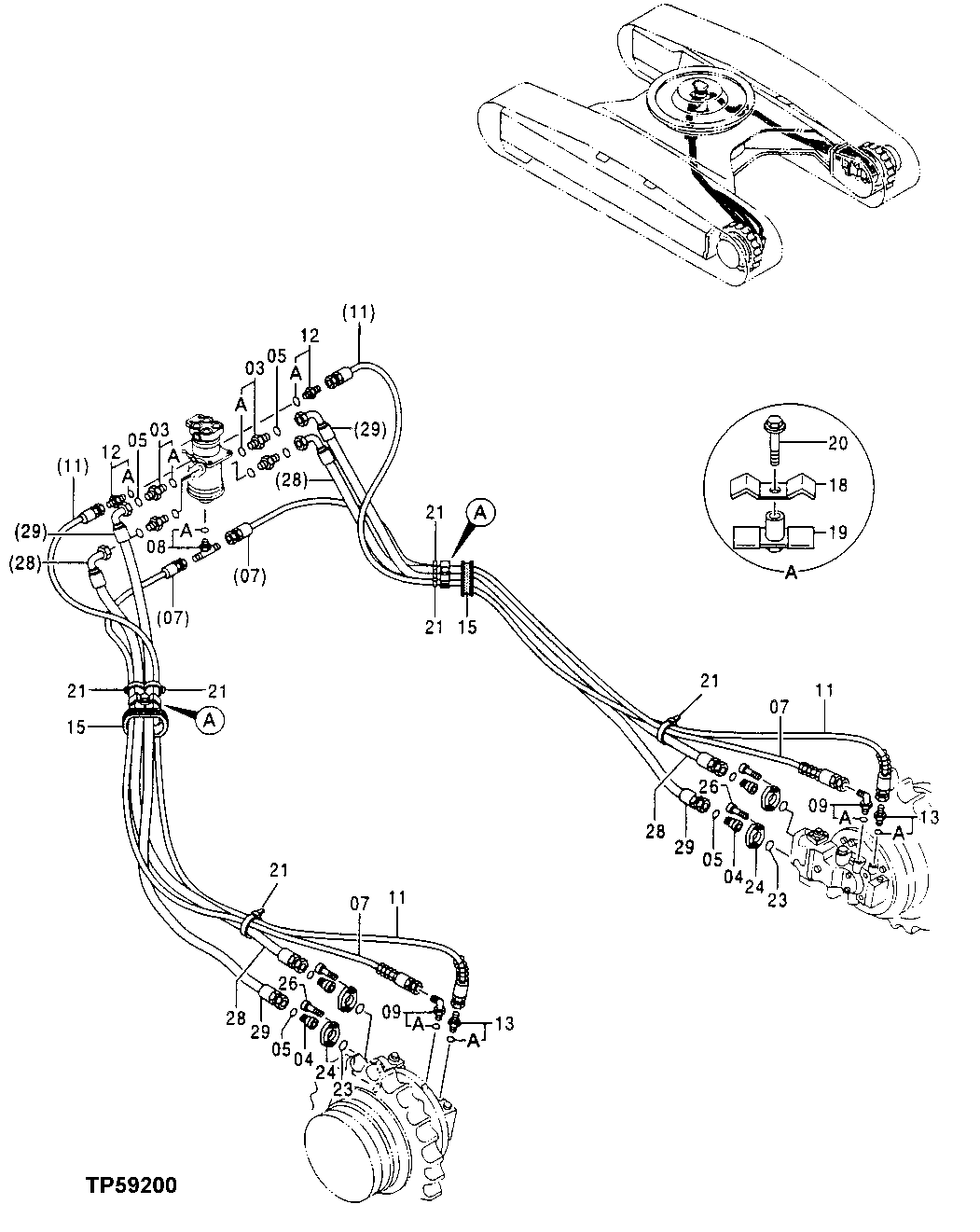

Запчасти John Deere 200LC, 330LC, 370 13 - TRAVEL PIPINGS 0260 HYDRAULIC SYSTEM

3

4189601

Adapter Fitting

(SUB FOR AT107394)

4шт.

3A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

4

4394152

Adapter Fitting

(SUB FOR AT250100)

4шт.

5

T76938

O-Ring

23.520 X 1.780 mm

8шт.

7

FFSB102063

Hydraulic Hose

2шт.

8

4221224

Tee Fitting

(SUB FOR AT318018 AND AT154156)

1шт.

8A

4506418

O-Ring

17.800 X 2.400 mm (SUB FOR U46489)

1шт.

9

4154672

Elbow Fitting

(SUB FOR TH101008)

2шт.

9A

4506418

O-Ring

17.800 X 2.400 mm (SUB FOR U46489)

1шт.

11

FFSB102062

Hydraulic Hose

2шт.

12

4200465

Adapter Fitting

(SUB FOR TH108328)

2шт.

12A

M800650

Packing

1шт.

13

4200468

Adapter Fitting

(SUB FOR AT126336)

2шт.

13A

CH11570

O-Ring

13.800 X 2.400 mm

1шт.

15

4396013

Bushing

(SUB FOR AT250104)

2шт.

18

4202103

Clamp

(SUB FOR TH108302)

2шт.

19

9736782

Clamp

(SUB FOR AT201191)

2шт.

20

19M8348

Cap Screw

M12 X 65

2шт.

12H301

Lock Washer

1/2"

2шт.

21

H77698

Tie Band

6шт.

23

T78313

O-Ring

32.920 X 3.530 mm

4шт.

24

4085560

Flange Fitting

(SUB FOR TH101960)

8шт.

26

19M9163

Screw

M12 X 40 (SUB FOR J781240)

16шт.

28

FFSB102064

Hydraulic Hose

2шт.

29

FFSB102064

Hydraulic Hose

2шт.
