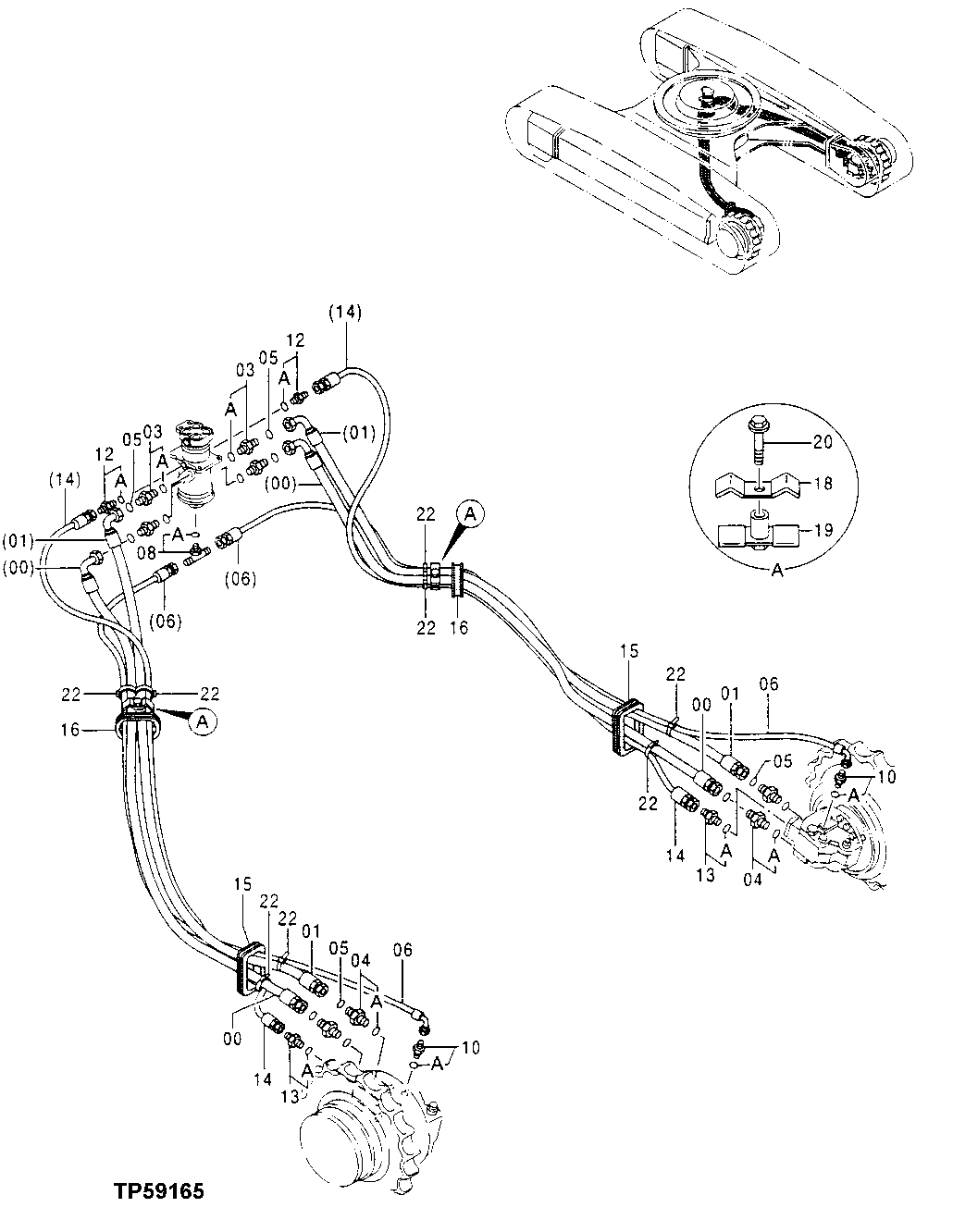

Запчасти John Deere 200LC, 330LC, 370 12 - TRAVEL PIPINGS 0260 HYDRAULIC SYSTEM

0

FFSB102061

Hydraulic Hose

(FORWARD)

2шт.

1

FFSB102061

Hydraulic Hose

(REVERSE)

2шт.

3

4189601

Adapter Fitting

(SUB FOR AT107394)

4шт.

3A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

4

4272493

Adapter Fitting

(SUB FOR AT204774)

4шт.

4A

970860

O-Ring

37.700 X 3.500 mm (SUB FOR TH104634)

1шт.

5

T76938

O-Ring

23.520 X 1.780 mm

8шт.

6

FFSB102060

Hydraulic Hose

2шт.

8

4221224

Tee Fitting

(SUB FOR AT318018 AND AT154156)

1шт.

8A

4506418

O-Ring

17.800 X 2.400 mm (SUB FOR U46489)

1шт.

10

X8-10F5OX

Adapter Fitting

(SUB FOR TH101006)

2шт.

10A

4506418

O-Ring

17.800 X 2.400 mm (SUB FOR U46489)

1шт.

12

4200465

Adapter Fitting

(SUB FOR TH108328)

2шт.

12A

M800650

Packing

1шт.

13

4200465

Adapter Fitting

(SUB FOR TH108328)

2шт.

13A

M800650

Packing

1шт.

14

FFSB102059

Hydraulic Hose

(DRAIN)

2шт.

15

4380020

Grommet

(SUB FOR AT250021)

2шт.

16

4272436

Bushing

(SUB FOR AT201009)

2шт.

18

4202103

Clamp

(SUB FOR TH108302)

2шт.

19

9736782

Clamp

(SUB FOR AT201191)

2шт.

20

19M8348

Cap Screw

M12 X 65

2шт.

12H301

Lock Washer

1/2"

2шт.

22

H77698

Tie Band

8шт.
