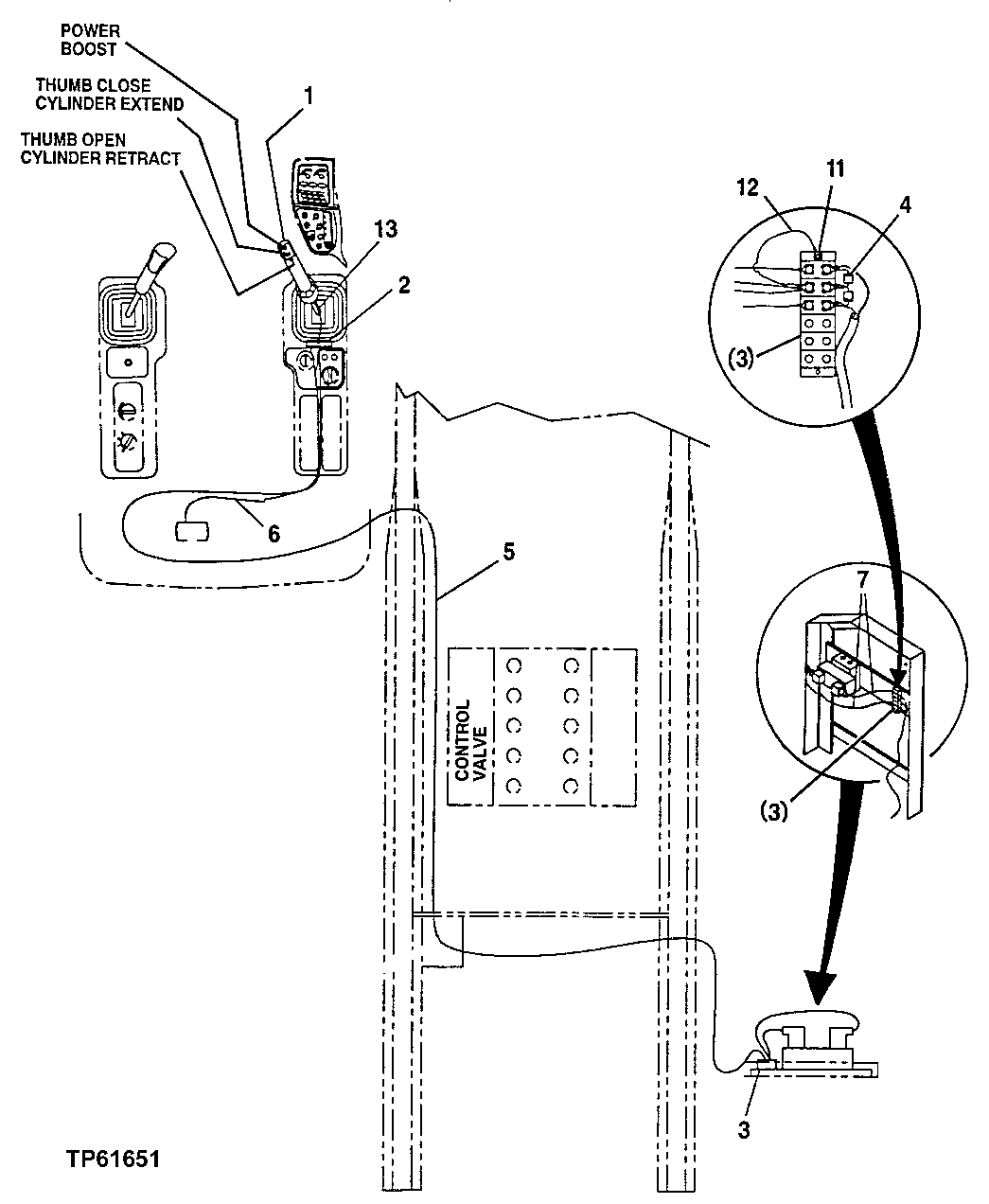

Запчасти John Deere 200LC, 330LC, 370 46 - HYDRAULIC THUMB ELECTRIC PARTS 1674 Wiring Harness And Switches

1

FFSB102314

Control Lever

(SEE SEPARATE PAGE FOR DETAIL)

1шт.

2

FFSB102629

Elec. Connector Terminal

(LOCATED UNDER CONSOLE COVER)

1шт.

3

FFSB102630

Elec. Connector Terminal

1шт.

4

FFSB102635

Diode

2шт.

5

FFSB102631

Cab Wiring Harness

1шт.

6

FFSB102632

Cab Wiring Harness

(CONNECTS TO AUXILIARY RED W IRE - USES FUSE TERMINAL 19)

1шт.

7

FFSB102633

Cab Wiring Harness

2шт.

11

21H1148

Screw

0.190" X 3/4"

2шт.

12

FFSB102634

Cab Wiring Harness

1шт.

13

4334707

Lever

(SUB FOR FFSB102315 ) (SUB FOR AT177386)

1шт.
