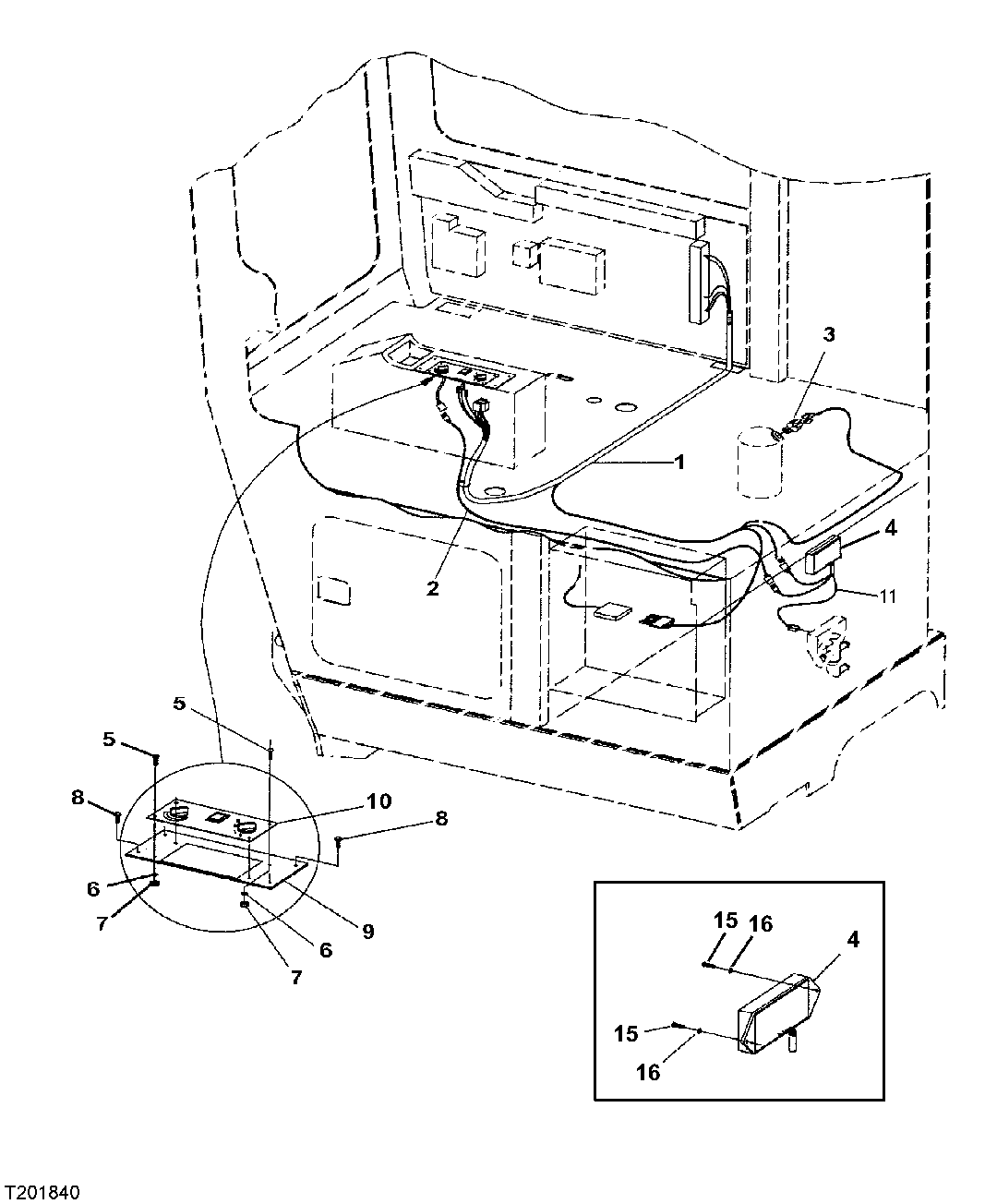

Запчасти John Deere 200LC, 330LC, 370 35 - REAR ENTRY CAB AIR CONDITIONER ELECTRICAL PARTS 1674 Wiring Harness And Switches

1

FFSB102364

Wiring Harness

1шт.

2

FFSB102365

Wiring Harness

1шт.

3

811913800

Switch

(SUB FOR FFSB102366)

1шт.

4

AT192174

Valve

(SUB FOR FFSB102367 OR FFSB 106316, ALONG WITH AT192175)

1шт.

5

21H1019

Screw

0.190" X 1/2"

4шт.

6

12H246

Lock Washer

0.190" (SUB FOR 12H351)

4шт.

7

14H778

Nut

0.190"

4шт.

8

19M7700

Cap Screw

M5 X 10

4шт.

12M7064

Lock Washer

5 mm

4шт.

24M7348

Washer

5.500 X 10 X 1 mm

4шт.

9

Plate

( FFSB102368 NOT AVAILABLE FOR SERVICE)

1шт.

10

FFSB102369

Control Console

1шт.

11

AT192175

Wiring Harness

(SUB FOR FFSB102367 OR FFSB 106316, ALONG WITH AT192174)

1шт.

15

21H1019

Screw

0.190" X 1/2" (NO LONGER REQUIRED)

2шт.

16

12H246

Lock Washer

0.190" (SUB FOR 12H351)(NO LONGER REQUIRED)

2шт.
